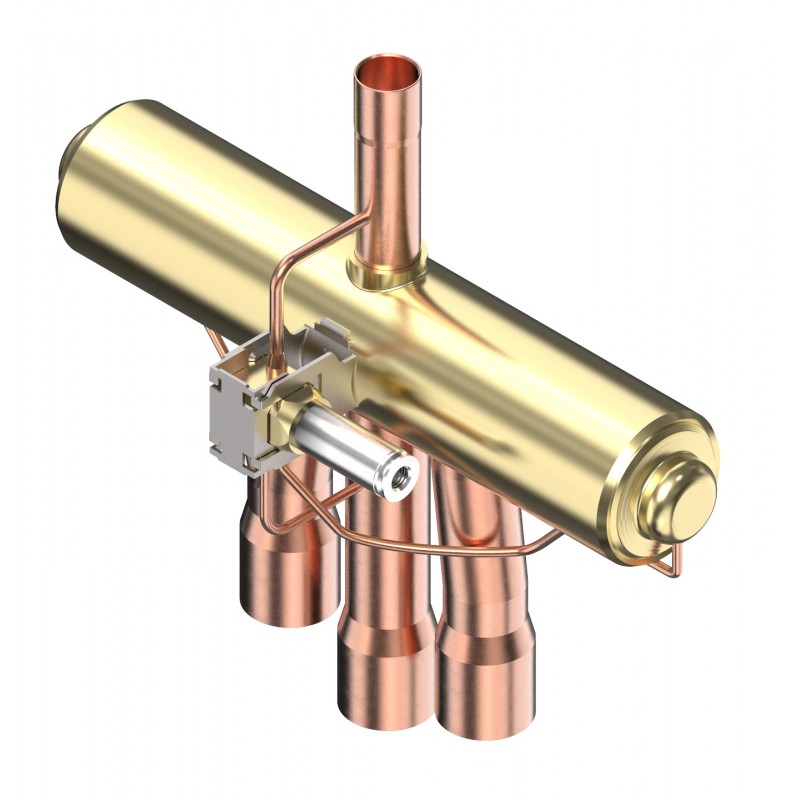

061L1356 DANFOSS REFRIGERATION 4-way reversing valve, STF-H0954
061L1356
DANFOSS REFRIGERATION
4-way reversing valve, STF-H0954
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Medium temperature range [°C]: -30 - 160, MaxOPD [bar]: 31, MinODP [bar]: 3, Suction conn size [in]: 1 1/8, Discharge conn size [in]: 7/8 in, Design config. Style: F
Product details
| Gross weight | 1.717 Kilogram |
| Net weight | 0.37 Kilogram |
| Volume | 8.959 Liter |
| EAN | 5702424157074 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Gross weight | 1.717 Kilogram |
| Net weight | 0.37 Kilogram |
| Volume | 8.959 Liter |
| EAN | 5702424157074 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE VDE |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 33.67 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 28.77 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 47.4 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 40.51 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 43.52 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 37.72 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 61.39 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 53.21 kW |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coil | No |
| Contains batteries | No |
| Design config. Style | F |
| Discharge conn size [in] | 7/8 in |
| Discharge conn size [mm] | 22.5 mm |
| Discharge conn type | FEMALE |
| EPD available | Yes |
| EU RoHS compliance | Out of scope |
| Evap/cond conn size [in] | 1 1/8 |
| Evap/cond conn size [mm] | 28,9 |
| Max. Leakage [cm³/min] | 6000 cm³/min |
| Max. Working Pressure [bar] | 49 bar |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psi] | 450 psi |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [max] | 160 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 320 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R410A R452B R454B R454C R1234yf R1234ze R290 R32 R448A R449A R452A R513A |
| SCIP dossier no. | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| SCIP dossier product name | Four-way valve(1) |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 1 1/8 |
| Suction conn size [mm] | 28.9 mm |
| Type designation | STF-H0954 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE VDE |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 33.67 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 28.77 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 47.4 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 40.51 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 43.52 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 37.72 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 61.39 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 53.21 kW |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coil | No |
| Contains batteries | No |
| Design config. Style | F |
| Discharge conn size [in] | 7/8 in |
| Discharge conn size [mm] | 22.5 mm |
| Discharge conn type | FEMALE |
| EPD available | Yes |
| EU RoHS compliance | Out of scope |
| Evap/cond conn size [in] | 1 1/8 |
| Evap/cond conn size [mm] | 28,9 |
| Max. Leakage [cm³/min] | 6000 cm³/min |
| Max. Working Pressure [bar] | 49 bar |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psi] | 450 psi |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [max] | 160 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 320 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407C R410A R452B R454B R454C R1234yf R1234ze R290 R32 R448A R449A R452A R513A |
| SCIP dossier no. | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| SCIP dossier product name | Four-way valve(1) |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 1 1/8 |
| Suction conn size [mm] | 28.9 mm |
| Type designation | STF-H0954 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
