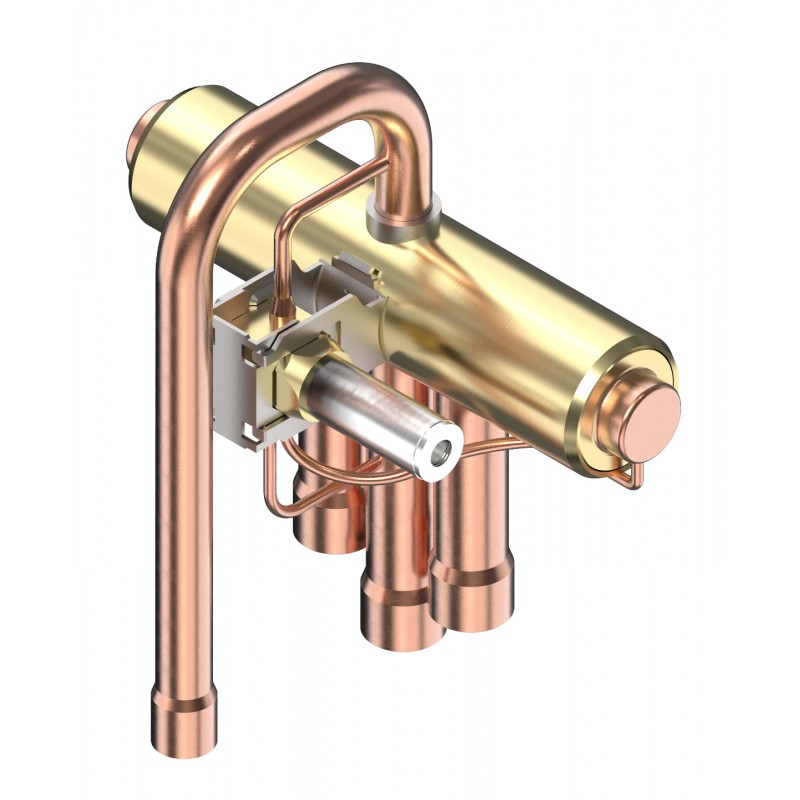

061L1348 DANFOSS REFRIGERATION 4-way reversing valve, STF-H0167
061L1348
DANFOSS REFRIGERATION
4-way reversing valve, STF-H0167
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Medium temperature range [°C]: -30 - 130, MaxOPD [bar]: 31, MinODP [bar]: 3, Suction conn size [in]: 3/8, Discharge conn size [in]: 5/16 in, Design config. Style: A
Product details
| Gross weight | 0.236 Kilogram |
| Net weight | 0.202 Kilogram |
| Volume | 0.947 Liter |
| EAN | 5715162259085 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Gross weight | 0.236 Kilogram |
| Net weight | 0.202 Kilogram |
| Volume | 0.947 Liter |
| EAN | 5715162259085 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE |
| Cap condition 1 [°C] | 0°C sub-cooling |
| Cap condition 2 [°C] | 5°C sub-cooling |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 4.27 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 3.65 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 6.01 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 5.14 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 5.52 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 4.78 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 7.79 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 6.75 kW |
| China RoHS compliance | Out of scope |
| Coil | No |
| Contains batteries | No |
| Design config. Style | A |
| Discharge conn size [in] | 5/16 in |
| Discharge conn size [mm] | 8.1 mm |
| Discharge conn type | FEMALE |
| EPD available | Yes |
| EU RoHS compliance | Out of scope |
| Evap/cond conn size [in] | 3/8 |
| Evap/cond conn size [mm] | 9,7 |
| Max. Leakage [cm³/min] | 1000 cm³/min |
| Max. Working Pressure [bar] | 45 bar |
| MaxOPD [bar] | 31 bar |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 3 bar |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R290 R32 R404A R407A R407C R410A R448A R449A R452B R454B R454C R1234yf R1234ze R452A R513A |
| SCIP dossier no. | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| SCIP dossier product name | Four-way valve(1) |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 3/8 |
| Suction conn size [mm] | 9.7 mm |
| Type designation | STF-H0167 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE |
| Cap condition 1 [°C] | 0°C sub-cooling |
| Cap condition 2 [°C] | 5°C sub-cooling |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 4.27 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 3.65 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 6.01 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 5.14 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 5.52 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 4.78 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 7.79 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 6.75 kW |
| China RoHS compliance | Out of scope |
| Coil | No |
| Contains batteries | No |
| Design config. Style | A |
| Discharge conn size [in] | 5/16 in |
| Discharge conn size [mm] | 8.1 mm |
| Discharge conn type | FEMALE |
| EPD available | Yes |
| EU RoHS compliance | Out of scope |
| Evap/cond conn size [in] | 3/8 |
| Evap/cond conn size [mm] | 9,7 |
| Max. Leakage [cm³/min] | 1000 cm³/min |
| Max. Working Pressure [bar] | 45 bar |
| MaxOPD [bar] | 31 bar |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 3 bar |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Quantity per packing format | 45 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R290 R32 R404A R407A R407C R410A R448A R449A R452B R454B R454C R1234yf R1234ze R452A R513A |
| SCIP dossier no. | f8fe2fb6-0750-4373-b03a-5b5988b72210 |
| SCIP dossier product name | Four-way valve(1) |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 3/8 |
| Suction conn size [mm] | 9.7 mm |
| Type designation | STF-H0167 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
