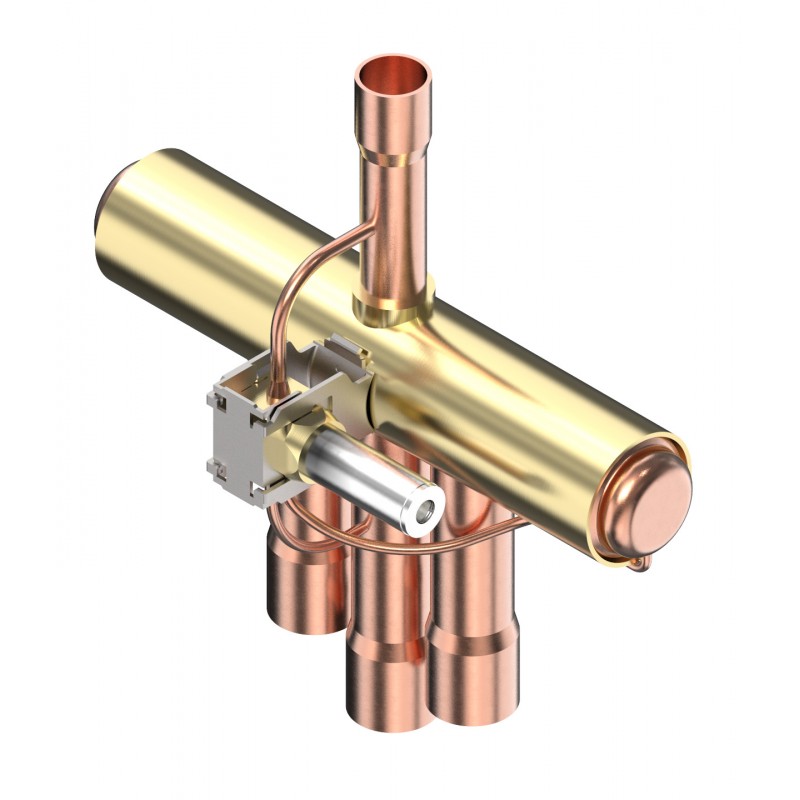

DANFOSS REFRIGERATION 061L1276 061L1276 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061L1276 DANFOSS REFRIGERATION 4-way reversing valve

Name: 061L1276 DANFOSS REFRIGERATION 4-way reversing valve
Brand: DANFOSS REFRIGERATION
SKU: DAO061L1276
Price: 104.78 USD
Availability: OutOfStock

Reference: 061L1276

Manufacturer: DANFOSS REFRIGERATION

Description:

4-way reversing valve

4-way reversing valve, STF-0441G3

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 2.126,54 €

Unit Price: 88,606 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Medium temperature range [°C]: -30 - 140, MaxOPD [bar]: 35, MinODP [bar]: 3, Suction conn size [in]: 3/4, Discharge conn size [in]: 1/2 in, Design config. Style: B

Product details

Gross weight	0.843 Kilogram
Net weight	0.801 Kilogram
Volume	2.378 Liter
EAN	5702428273152

Type	STF
Product group	4-way reversing valves
Product Name Description	4-way reversing valve

Gross weight	0.843 Kilogram
Net weight	0.801 Kilogram
Volume	2.378 Liter
EAN	5702428273152
Type	STF
Product group	4-way reversing valves
Product Name Description	4-way reversing valve

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-22 °F
Approval	CE VDE
Cap condition 1 [°C]	0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat
Cap condition 2 [°C]	54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]	16.1 kW
Cap R407C@Δp:0.1bar(cond2)[kW]	13.75 kW
Cap R407C@Δp:0.2bar(cond1)[kW]	22.66 kW
Cap R407C@Δp:0.2bar(cond2)[kW]	19.37 kW
Cap R410A@Δp:0.1bar(cond1)[kW]	20.81 kW
Cap R410A@Δp:0.1bar(cond2)[kW]	18.03 kW
Cap R410A@Δp:0.2bar(cond1)[kW]	29.35 kW
Cap R410A@Δp:0.2bar(cond2)[kW]	25.43 kW
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil	No
Contains batteries	No
Design config. Style	B
Discharge conn size [in]	1/2 in
Discharge conn size [mm]	12.8 mm
Discharge conn type	FEMALE
EU RoHS compliance	Yes

EU RoHS exemption clause	No
Evap/cond conn size [in]	3/4
Evap/cond conn size [mm]	19,15
Max. Leakage [cm³/min]	4000 cm³/min
Max. Working Pressure [bar]	45 bar
MaxOPD [bar]	35 bar
MaxOPD [psig]	508 psig
Medium temperature range [°C] [max]	140 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	284 °F
Medium temperature range [°F] [min]	-22 °F
MinODP [bar]	3 bar
MinODP [psi]	44 psi
Packing format	Industrial pack
Process connection material	Copper
Quantity per packing format	24 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R410A
Shock resistance standard	JIS C 60068-2-27
Suction conn size [in]	3/4
Suction conn size [mm]	19.15 mm
Type designation	STF-0441G3
Vibration stability [m/s²]	19.6 m/s²
Vibration test standard	JIS C 60068-2-6

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-22 °F
Approval	CE VDE
Cap condition 1 [°C]	0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat
Cap condition 2 [°C]	54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]	16.1 kW
Cap R407C@Δp:0.1bar(cond2)[kW]	13.75 kW
Cap R407C@Δp:0.2bar(cond1)[kW]	22.66 kW
Cap R407C@Δp:0.2bar(cond2)[kW]	19.37 kW
Cap R410A@Δp:0.1bar(cond1)[kW]	20.81 kW
Cap R410A@Δp:0.1bar(cond2)[kW]	18.03 kW
Cap R410A@Δp:0.2bar(cond1)[kW]	29.35 kW
Cap R410A@Δp:0.2bar(cond2)[kW]	25.43 kW
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil	No
Contains batteries	No
Design config. Style	B
Discharge conn size [in]	1/2 in
Discharge conn size [mm]	12.8 mm
Discharge conn type	FEMALE
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Evap/cond conn size [in]	3/4
Evap/cond conn size [mm]	19,15
Max. Leakage [cm³/min]	4000 cm³/min
Max. Working Pressure [bar]	45 bar
MaxOPD [bar]	35 bar
MaxOPD [psig]	508 psig
Medium temperature range [°C] [max]	140 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	284 °F
Medium temperature range [°F] [min]	-22 °F
MinODP [bar]	3 bar
MinODP [psi]	44 psi
Packing format	Industrial pack
Process connection material	Copper
Quantity per packing format	24 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R410A
Shock resistance standard	JIS C 60068-2-27
Suction conn size [in]	3/4
Suction conn size [mm]	19.15 mm
Type designation	STF-0441G3
Vibration stability [m/s²]	19.6 m/s²
Vibration test standard	JIS C 60068-2-6

DATASHEET - PDF

Title

Size

Type

061L1276 061L1276 EN_061L1280.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
