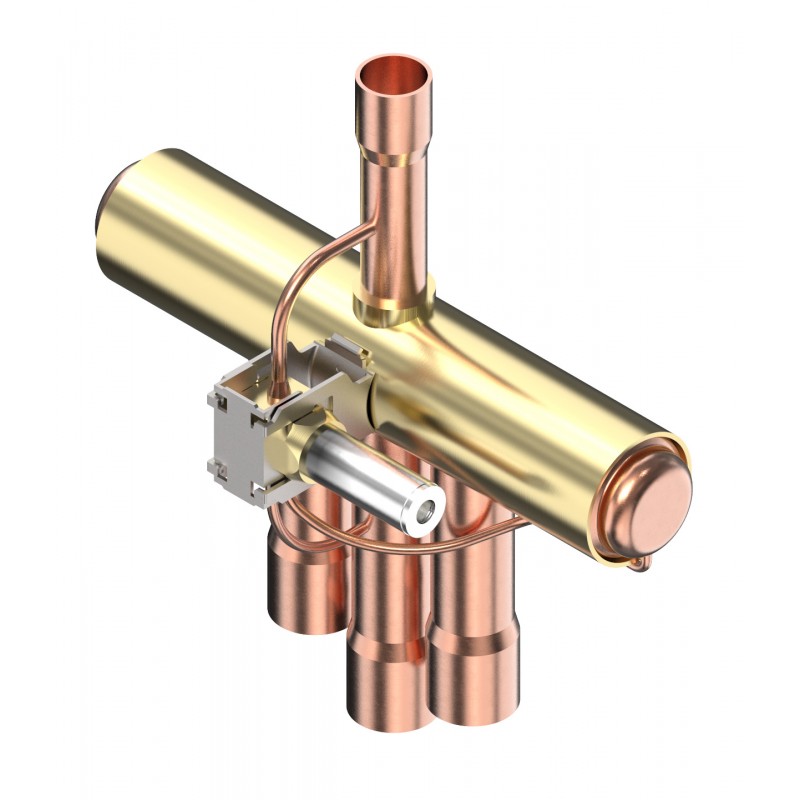

061L1156 DANFOSS REFRIGERATION 4-way reversing valve, STF
061L1156
DANFOSS REFRIGERATION
24
4-way reversing valve, STF
4-way reversing valve, STF-0420G3
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Medium temperature range [°C]: -20 - 120, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 7/8, Discharge conn size [in]: 1/2, Design config. Style: B
Product details
| Gross weight | 0.853 Kg |
| Net weight | 0.81 Kg |
| Volume | 2.378 Liter |
| EAN | 5702428273848 |
| Gross weight | 0.853 Kg |
| Net weight | 0.81 Kg |
| Volume | 2.378 Liter |
| EAN | 5702428273848 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE UKCA |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 18.13 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 16.76 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 25.53 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 23.6 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 22.23 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 20.03 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 31.35 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 28.26 kW |
| Coil | No |
| Design config. Style | B |
| Discharge conn size [in] | 1/2 |
| Discharge conn size [mm] | 12.8 mm |
| Discharge conn type | FEMALE |
| EU RoHS compliance | No - out of scope |
| Evap/cond conn size [in] | 7/8 |
| Evap/cond conn size [mm] | 22,4 |
| In scope of WEEE and contain batteries | No |
| Max. Leakage [cm³/min] | 4000 cm³/min |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -4 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R404A R407C R410A |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 7/8 |
| Suction conn size [mm] | 22.4 mm |
| Type | STF |
| Type designation | STF-0420G3 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE UKCA |
| Cap condition 1 [°C] | 0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat |
| Cap condition 2 [°C] | 54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating |
| Cap R407C@Δp:0.1bar(cond1)[kW] | 18.13 kW |
| Cap R407C@Δp:0.1bar(cond2)[kW] | 16.76 kW |
| Cap R407C@Δp:0.2bar(cond1)[kW] | 25.53 kW |
| Cap R407C@Δp:0.2bar(cond2)[kW] | 23.6 kW |
| Cap R410A@Δp:0.1bar(cond1)[kW] | 22.23 kW |
| Cap R410A@Δp:0.1bar(cond2)[kW] | 20.03 kW |
| Cap R410A@Δp:0.2bar(cond1)[kW] | 31.35 kW |
| Cap R410A@Δp:0.2bar(cond2)[kW] | 28.26 kW |
| Coil | No |
| Design config. Style | B |
| Discharge conn size [in] | 1/2 |
| Discharge conn size [mm] | 12.8 mm |
| Discharge conn type | FEMALE |
| EU RoHS compliance | No - out of scope |
| Evap/cond conn size [in] | 7/8 |
| Evap/cond conn size [mm] | 22,4 |
| In scope of WEEE and contain batteries | No |
| Max. Leakage [cm³/min] | 4000 cm³/min |
| MaxOPD [bar] | 31 bar |
| MaxOPD [psig] | 450 psig |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -4 °F |
| MinODP [bar] | 3 bar |
| MinODP [psi] | 44 psi |
| Packing format | Industrial pack |
| Process connection material | Copper |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R404A R407C R410A |
| Shock resistance standard | JIS C 60068-2-27 |
| Suction conn size [in] | 7/8 |
| Suction conn size [mm] | 22.4 mm |
| Type | STF |
| Type designation | STF-0420G3 |
| Vibration stability [m/s²] | 19.6 m/s² |
| Vibration test standard | JIS C 60068-2-6 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 061L1156 061L1156 EN_061L1280.pdf | 4 Mbytes |
 |
