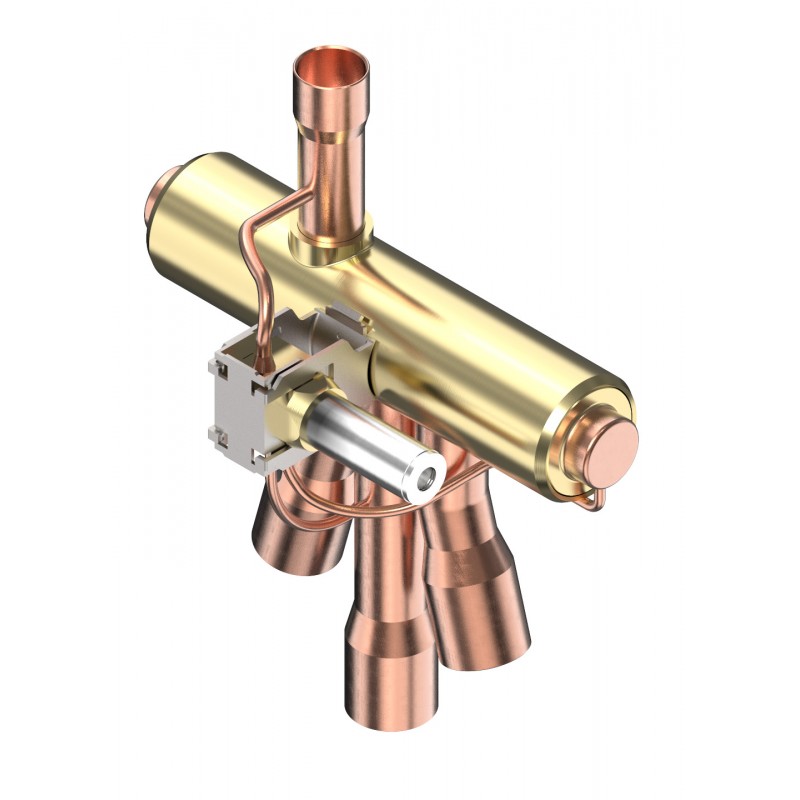

DANFOSS REFRIGERATION 061L1151 061L1151 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061L1151 DANFOSS REFRIGERATION 4-way reversing valve, STF

Name: 061L1151 DANFOSS REFRIGERATION 4-way reversing valve, STF
Brand: DANFOSS REFRIGERATION
SKU: DAO061L1151
Price: 60.85 USD
Availability: OutOfStock

Reference: 061L1151

Manufacturer: DANFOSS REFRIGERATION

Description:

4-way reversing valve, STF

4-way reversing valve, STF-0306G3

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 1.663,38 €

Unit Price: 51,9806 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Medium temperature range [°C]: -20 - 120, MaxOPD [bar]: 31.0, MinODP [bar]: 3.000, Suction conn size [in]: 3/4, Discharge conn size [in]: 1/2, Design config. Style: E

Product details

Gross weight	0.441 Kg
Net weight	0.37 Kg

Volume	1.756 Liter
EAN	5702428273886

Gross weight	0.441 Kg
Net weight	0.37 Kg
Volume	1.756 Liter
EAN	5702428273886

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Approval	CE VDE UKCA
Cap condition 1 [°C]	0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat
Cap condition 2 [°C]	54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]	8.73 kW
Cap R407C@Δp:0.1bar(cond2)[kW]	8.06 kW
Cap R407C@Δp:0.2bar(cond1)[kW]	12.29 kW
Cap R407C@Δp:0.2bar(cond2)[kW]	11.34 kW
Cap R410A@Δp:0.1bar(cond1)[kW]	10.69 kW
Cap R410A@Δp:0.1bar(cond2)[kW]	9.63 kW
Cap R410A@Δp:0.2bar(cond1)[kW]	15.08 kW
Cap R410A@Δp:0.2bar(cond2)[kW]	13.59 kW
Coil	No
Design config. Style	E
Discharge conn size [in]	1/2
Discharge conn size [mm]	12.95 mm
Discharge conn type	FEMALE
EU RoHS compliance	No - out of scope
Evap/cond conn size [in]	3/4
Evap/cond conn size [mm]	19,2
In scope of WEEE and contain batteries	No

Max. Leakage [cm³/min]	1500 cm³/min
MaxOPD [bar]	31 bar
MaxOPD [psig]	450 psig
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-20 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-4 °F
MinODP [bar]	3 bar
MinODP [psi]	44 psi
Packing format	Industrial pack
Process connection material	Copper
Product group	4-way reversing valves
Product Name Description	4-way reversing valve
Quantity per packing format	32 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R410A
Shock resistance standard	JIS C 60068-2-27
Suction conn size [in]	3/4
Suction conn size [mm]	19.2 mm
Type	STF
Type designation	STF-0306G3
Vibration stability [m/s²]	19.6 m/s²
Vibration test standard	JIS C 60068-2-6

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Approval	CE VDE UKCA
Cap condition 1 [°C]	0°C sub-cooling 38°C condensing 5°C evaporating 5°C super-heat
Cap condition 2 [°C]	54,4 °C condensing 5°C sub-cooling 5°C super-heat 7,2°C evaporating
Cap R407C@Δp:0.1bar(cond1)[kW]	8.73 kW
Cap R407C@Δp:0.1bar(cond2)[kW]	8.06 kW
Cap R407C@Δp:0.2bar(cond1)[kW]	12.29 kW
Cap R407C@Δp:0.2bar(cond2)[kW]	11.34 kW
Cap R410A@Δp:0.1bar(cond1)[kW]	10.69 kW
Cap R410A@Δp:0.1bar(cond2)[kW]	9.63 kW
Cap R410A@Δp:0.2bar(cond1)[kW]	15.08 kW
Cap R410A@Δp:0.2bar(cond2)[kW]	13.59 kW
Coil	No
Design config. Style	E
Discharge conn size [in]	1/2
Discharge conn size [mm]	12.95 mm
Discharge conn type	FEMALE
EU RoHS compliance	No - out of scope
Evap/cond conn size [in]	3/4
Evap/cond conn size [mm]	19,2
In scope of WEEE and contain batteries	No
Max. Leakage [cm³/min]	1500 cm³/min
MaxOPD [bar]	31 bar
MaxOPD [psig]	450 psig
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-20 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-4 °F
MinODP [bar]	3 bar
MinODP [psi]	44 psi
Packing format	Industrial pack
Process connection material	Copper
Product group	4-way reversing valves
Product Name Description	4-way reversing valve
Quantity per packing format	32 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R410A
Shock resistance standard	JIS C 60068-2-27
Suction conn size [in]	3/4
Suction conn size [mm]	19.2 mm
Type	STF
Type designation	STF-0306G3
Vibration stability [m/s²]	19.6 m/s²
Vibration test standard	JIS C 60068-2-6

DATASHEET - PDF

Title

Size

Type

061L1151 061L1151 EN_061L1280.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
