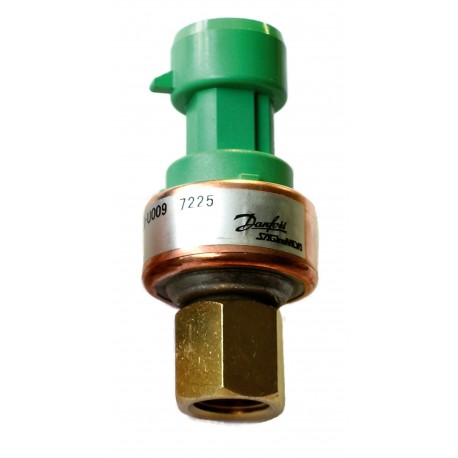

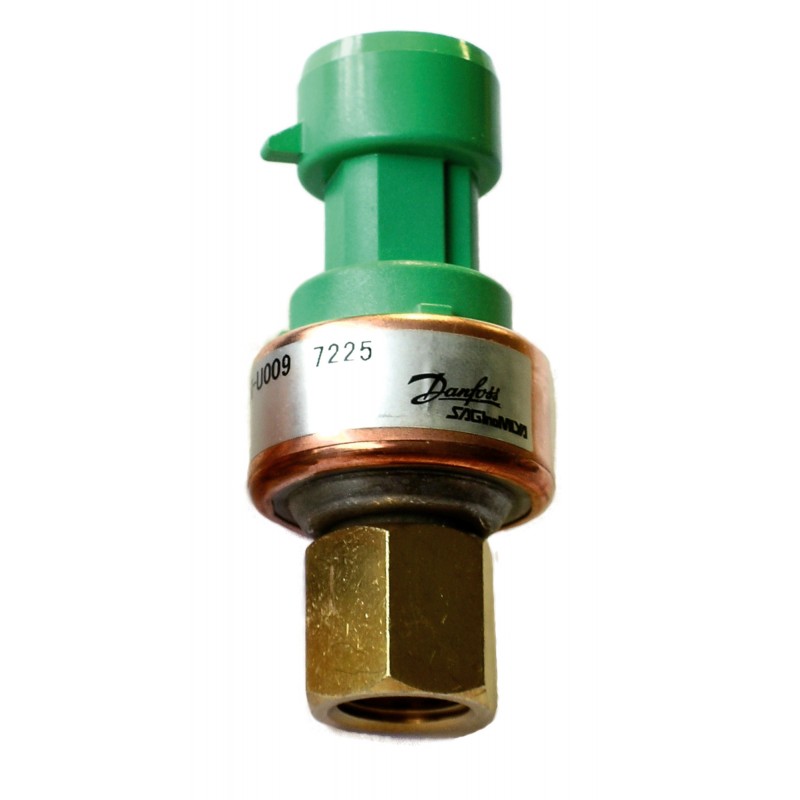

061H5144 DANFOSS REFRIGERATION Pressure transmitter, NSK
061H5144
DANFOSS REFRIGERATION
20
Pressure transmitter, NSK
Sensor NSK BE020I-U009 I/20
Pressure transmitter, NSK, 0.00 bar - 20.00 bar
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: NSK-BE020I-U009
Product details
| Gross weight | 0.067 Kg |
| Net weight | 0.067 Kg |
| Volume | 0.524 Liter |
| EAN | 5702428274821 |
| Gross weight | 0.067 Kg |
| Net weight | 0.067 Kg |
| Volume | 0.524 Liter |
| EAN | 5702428274821 |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 2.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| Identical product | 061H5151 |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 38.5 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 20 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Quantity per packing format | 20 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Refrigerants | R134a R404A R407C R410A R1234yf R1234ze(E) R32 R407H R449B R450A R452B R454B R454C R455A R513A R454A |
| Specification key | NSK-BE020I-U009 |
| Supply voltage [V] DC | 5 V |
| Type | NSK |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy, max. [±FS%] | 2.5 % |
| Ambient temperature range [°C] [max] | 100 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Electrical conn. Male/Female | Male |
| Electrical connection | Round Packard Metri-Pack |
| Enclosure rating IP | IP66 |
| EU RoHS compliance | Yes |
| Identical product | 061H5151 |
| In scope of WEEE and contain batteries | No |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 38.5 bar |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 14 mm |
| Pressure connection notes | With Schrader Depressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 20 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Quantity per packing format | 20 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | No |
| Refrigerants | R134a R404A R407C R410A R1234yf R1234ze(E) R32 R407H R449B R450A R452B R454B R454C R455A R513A R454A |
| Specification key | NSK-BE020I-U009 |
| Supply voltage [V] DC | 5 V |
| Type | NSK |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061H5144 061H5144 IT_061H5147.pdf | 263 Kbytes |
|
