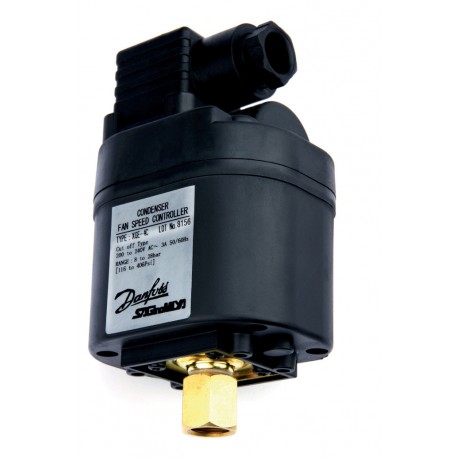

DANFOSS REFRIGERATION 061H3144 061H3144 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061H3144 DANFOSS REFRIGERATION Fan speed controller

Name: 061H3144 DANFOSS REFRIGERATION Fan speed controller
Brand: DANFOSS REFRIGERATION
SKU: DAO061H3144
Price: 172.89 USD
Availability: OutOfStock

Reference: 061H3144

Manufacturer: DANFOSS REFRIGERATION

Description:

Fan speed controller

XGE Fan Speed Controller 2C

Fan speed controller, XGE-2C

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 154,45 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Factory setting [bar]: 8, Number of Phases: 1, P band max. [bar]: 6, Regulation range [bar] Pe [min]: 8, Regulation range [bar] Pe [max]: 18, Type designation: XGE-2C

Product details

Gross weight	0.272 Kilogram
Net weight	0.262 Kilogram
Volume	0.735 Liter
EAN	5702428275545

Type	XGE
Product group	Electronic controllers
Product Name Description	Fan speed controller

Gross weight	0.272 Kilogram
Net weight	0.262 Kilogram
Volume	0.735 Liter
EAN	5702428275545
Type	XGE
Product group	Electronic controllers
Product Name Description	Fan speed controller

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Burst pressure [bar]	131 bar
Burst pressure [psig]	1900 psig
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contains batteries	No
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Factory setting [bar]	8 bar
Factory setting [psig]	116 psig
Frequency [Hz]	50/60 Hz
Housing	Closed
Max. current output/phase [A]	3 A
Max. Working Pressure [bar]	47 bar
Max. Working Pressure [psig]	681 psig
Min speed setting [%]	35%@60Hz
Number of Phases	1
P band max. [bar]	6 bar

P band max. [psi]	87 psi
Packing format	Multi pack
Parts included	Plug
Pressure connection notes	with Schrader
Pressure inlet conn. size [in]	1/4
Pressure inlet conn. std.	DIN 8906
Pressure inlet conn. type	Flare
Pressure inlet Internal/Extern	Internal
Product accessories	Electron. control accessories
Quantity per packing format	50 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R407F R407H R448A R449A R449B R450A R452A R513A
Regulation range [bar] Pe [max]	18 bar
Regulation range [bar] Pe [min]	8 bar
Regulation range [MPa] Pe [max]	1.8 MPa
Regulation range [MPa] Pe [min]	0.8 MPa
Regulation range [psig] Pe [max]	261 psig
Regulation range [psig] Pe [min]	116 psig
Serviceable	No
Supply voltage [V] AC [max]	240 V
Supply voltage [V] AC [min]	200 V
Type designation	XGE-2C

Ambient temperature range [°C] [max]	55 °C
Ambient temperature range [°C] [min]	-20 °C
Ambient temperature range [°F] [max]	131 °F
Ambient temperature range [°F] [min]	-4 °F
Burst pressure [bar]	131 bar
Burst pressure [psig]	1900 psig
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contains batteries	No
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Factory setting [bar]	8 bar
Factory setting [psig]	116 psig
Frequency [Hz]	50/60 Hz
Housing	Closed
Max. current output/phase [A]	3 A
Max. Working Pressure [bar]	47 bar
Max. Working Pressure [psig]	681 psig
Min speed setting [%]	35%@60Hz
Number of Phases	1
P band max. [bar]	6 bar
P band max. [psi]	87 psi
Packing format	Multi pack
Parts included	Plug
Pressure connection notes	with Schrader
Pressure inlet conn. size [in]	1/4
Pressure inlet conn. std.	DIN 8906
Pressure inlet conn. type	Flare
Pressure inlet Internal/Extern	Internal
Product accessories	Electron. control accessories
Quantity per packing format	50 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407C R407F R407H R448A R449A R449B R450A R452A R513A
Regulation range [bar] Pe [max]	18 bar
Regulation range [bar] Pe [min]	8 bar
Regulation range [MPa] Pe [max]	1.8 MPa
Regulation range [MPa] Pe [min]	0.8 MPa
Regulation range [psig] Pe [max]	261 psig
Regulation range [psig] Pe [min]	116 psig
Serviceable	No
Supply voltage [V] AC [max]	240 V
Supply voltage [V] AC [min]	200 V
Type designation	XGE-2C
