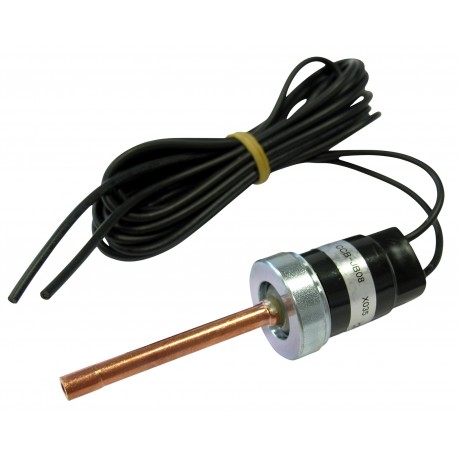

DANFOSS REFRIGERATION 061F9809 061F9809 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061F9809 DANFOSS REFRIGERATION Cartridge pressure switch

Name: 061F9809 DANFOSS REFRIGERATION Cartridge pressure switch
Brand: DANFOSS REFRIGERATION
SKU: DAO061F9809
Price: 82.81 USD
Availability: OutOfStock

Reference: 061F9809

Manufacturer: DANFOSS REFRIGERATION

Description:

Cartridge pressure switch

Cartridge pressure switch, CCB, 110 bar, 80 bar

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 7.398,02 €

Unit Price: 73,9802 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Higher activ. pressure [bar]: 110, Lower activ. pressure [bar]: 80, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Solder, ODM, Pressure connection size [mm]: 6.35, Electrical connection: Cable, Enclosure rating IP: IP65

Product details

Gross weight	0.139 Kilogram
Net weight	0.124 Kilogram
Volume	0.218 Liter
EAN	5702428258081

Type	CCB
Product group	Switches and thermostats
Product Name Description	Cartridge pressure switch

Gross weight	0.139 Kilogram
Net weight	0.124 Kilogram
Volume	0.218 Liter
EAN	5702428258081
Type	CCB
Product group	Switches and thermostats
Product Name Description	Cartridge pressure switch

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-20 °F
Approval	CE TÜV
Burst pressure [bar]	375 bar
Burst pressure [psig]	5440 psig
Cable length [in]	59.06 in
Cable length [m]	1.5 m
Cable type	AWG18
CE evaluated	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPST(NC)
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical connection	Cable
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	110 bar
Higher activ. pressure [psi]	1595 psi
Housing	Epoxy type

Lower activ. pressure [bar]	80 bar
Lower activ. pressure [psi]	1160 psi
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	165 bar
Max. Working Pressure [psig]	2393 psig
Medium temperature range [°C] [max]	100 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	210 °F
Medium temperature range [°F] [min]	-20 °F
Oil free refrigerants	R134a R513A
Packing format	Industrial pack
Pressure connection notes	Cu-tube (tip=7mm)
Pressure connection size [mm]	6.35 mm
Pressure connection type	Solder, ODM
Pressure range category	High pressure
Product accessories	Switches accessories
Quantity per packing format	100 pc
REACH Candidate List substances	No
Refrigerants	R744
Reset function	Auto
Serviceable	No
Specification key	CCB-2UB04W
Wire colour	Black

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-20 °F
Approval	CE TÜV
Burst pressure [bar]	375 bar
Burst pressure [psig]	5440 psig
Cable length [in]	59.06 in
Cable length [m]	1.5 m
Cable type	AWG18
CE evaluated	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPST(NC)
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical connection	Cable
Enclosure rating IP	IP65
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	110 bar
Higher activ. pressure [psi]	1595 psi
Housing	Epoxy type
Lower activ. pressure [bar]	80 bar
Lower activ. pressure [psi]	1160 psi
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	165 bar
Max. Working Pressure [psig]	2393 psig
Medium temperature range [°C] [max]	100 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	210 °F
Medium temperature range [°F] [min]	-20 °F
Oil free refrigerants	R134a R513A
Packing format	Industrial pack
Pressure connection notes	Cu-tube (tip=7mm)
Pressure connection size [mm]	6.35 mm
Pressure connection type	Solder, ODM
Pressure range category	High pressure
Product accessories	Switches accessories
Quantity per packing format	100 pc
REACH Candidate List substances	No
Refrigerants	R744
Reset function	Auto
Serviceable	No
Specification key	CCB-2UB04W
Wire colour	Black
