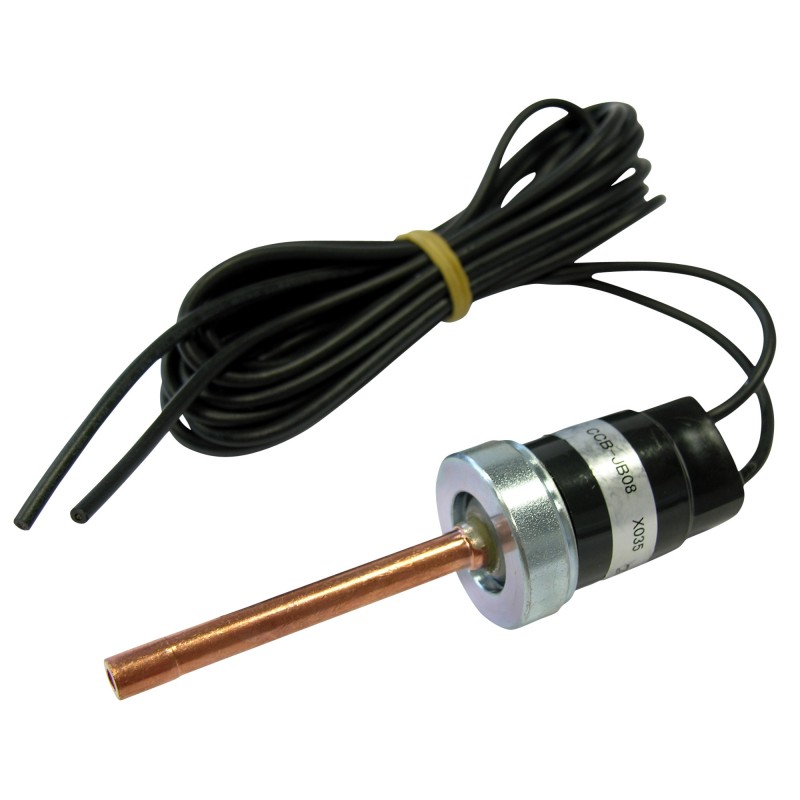

061F9808 DANFOSS REFRIGERATION Cartridge pressure switch
Reference: 061F9808
Manufacturer: DANFOSS REFRIGERATION
Description:
Cartridge pressure switch
Cartridge pressure switch, CCB, 100 bar, 70 bar
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
MORE INFO
Higher activ. pressure [bar]: 100, Lower activ. pressure [bar]: 70, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Solder, ODM, Pressure connection size [mm]: 6.35, Electrical connection: Cable, Enclosure rating IP: IP65
Product details
| Gross weight | 0.129 Kilogram |
| Net weight | 0.124 Kilogram |
| Volume | 0.22 Liter |
| EAN | 5702428258098 |
| Type | CCB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Gross weight | 0.129 Kilogram |
| Net weight | 0.124 Kilogram |
| Volume | 0.22 Liter |
| EAN | 5702428258098 |
| Type | CCB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE TÜV |
| Burst pressure [bar] | 375 bar |
| Burst pressure [psig] | 5440 psig |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable type | AWG18 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Higher activ. pressure [bar] | 100 bar |
| Higher activ. pressure [psi] | 1450 psi |
| Housing | Epoxy type |
| Lower activ. pressure [bar] | 70 bar |
| Lower activ. pressure [psi] | 1015 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 165 bar |
| Max. Working Pressure [psig] | 2393 psig |
| Medium temperature range [°C] [max] | 100 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 210 °F |
| Medium temperature range [°F] [min] | -20 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Cu-tube (tip=7mm) |
| Pressure connection size [mm] | 6.35 mm |
| Pressure connection type | Solder, ODM |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| Reset function | Auto |
| SCIP dossier no. | f33de3f9-791f-47eb-85ea-0064e2fcf12f |
| Serviceable | No |
| Specification key | CCB-2UB03W |
| Wire colour | Black |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE TÜV |
| Burst pressure [bar] | 375 bar |
| Burst pressure [psig] | 5440 psig |
| Cable length [in] | 59.06 in |
| Cable length [m] | 1.5 m |
| Cable type | AWG18 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Out of scope |
| Higher activ. pressure [bar] | 100 bar |
| Higher activ. pressure [psi] | 1450 psi |
| Housing | Epoxy type |
| Lower activ. pressure [bar] | 70 bar |
| Lower activ. pressure [psi] | 1015 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 165 bar |
| Max. Working Pressure [psig] | 2393 psig |
| Medium temperature range [°C] [max] | 100 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 210 °F |
| Medium temperature range [°F] [min] | -20 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Cu-tube (tip=7mm) |
| Pressure connection size [mm] | 6.35 mm |
| Pressure connection type | Solder, ODM |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| Reset function | Auto |
| SCIP dossier no. | f33de3f9-791f-47eb-85ea-0064e2fcf12f |
| Serviceable | No |
| Specification key | CCB-2UB03W |
| Wire colour | Black |
