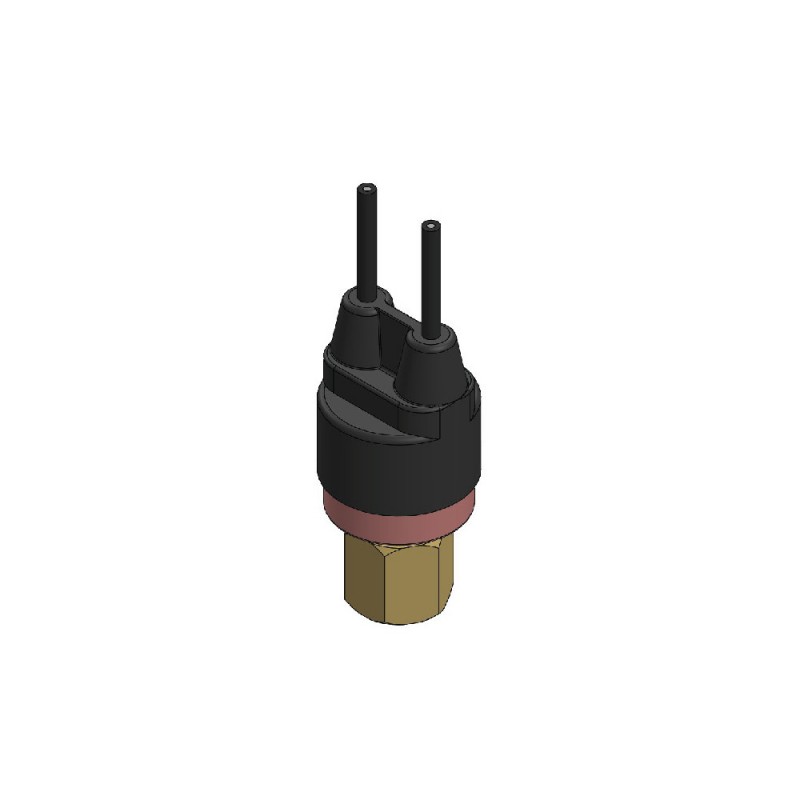

061F8563 DANFOSS REFRIGERATION Cartridge pressure switch ACB-2UB636W
061F8563
DANFOSS REFRIGERATION
50
Cartridge pressure switch ACB-2UB636W
ACB Cartridge Switch 2UB636W I/50
Cartridge pressure switch, ACB, 43 bar, 34 bar
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Higher activ. pressure [bar]: 43, Lower activ. pressure [bar]: 34, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
Product details
| Gross weight | 0.129 Kilogram |
| Net weight | 0.122 Kilogram |
| Volume | 0.459 Liter |
| EAN | 5702428261654 |
| Type | ACB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Gross weight | 0.129 Kilogram |
| Net weight | 0.122 Kilogram |
| Volume | 0.459 Liter |
| EAN | 5702428261654 |
| Type | ACB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE 0035 TÜV C UL US UL60730 |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 118.11 in |
| Cable length [m] | 3 m |
| Cable type | AWG18 |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Higher activ. pressure [bar] | 43 bar |
| Higher activ. pressure [psi] | 624 psi |
| Housing | Regular hot-melt |
| Lower activ. pressure [bar] | 34 bar |
| Lower activ. pressure [psi] | 493 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Deflator |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| SCIP dossier no. | 3214dac9-e7f5-4553-abfe-56ba718eab3c |
| SCIP dossier product name | ACB/LCB, Cartridge pressure switch, flare connection |
| Serviceable | No |
| Specification key | ACB-2UB636W |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| UL mark | Yes |
| Wire colour | Red |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE 0035 TÜV C UL US UL60730 |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 118.11 in |
| Cable length [m] | 3 m |
| Cable type | AWG18 |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Higher activ. pressure [bar] | 43 bar |
| Higher activ. pressure [psi] | 624 psi |
| Housing | Regular hot-melt |
| Lower activ. pressure [bar] | 34 bar |
| Lower activ. pressure [psi] | 493 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Deflator |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 50 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| SCIP dossier no. | 3214dac9-e7f5-4553-abfe-56ba718eab3c |
| SCIP dossier product name | ACB/LCB, Cartridge pressure switch, flare connection |
| Serviceable | No |
| Specification key | ACB-2UB636W |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| UL mark | Yes |
| Wire colour | Red |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061F8563 061F8563 EN_061F9676.pdf | 2 Mbytes |
|
