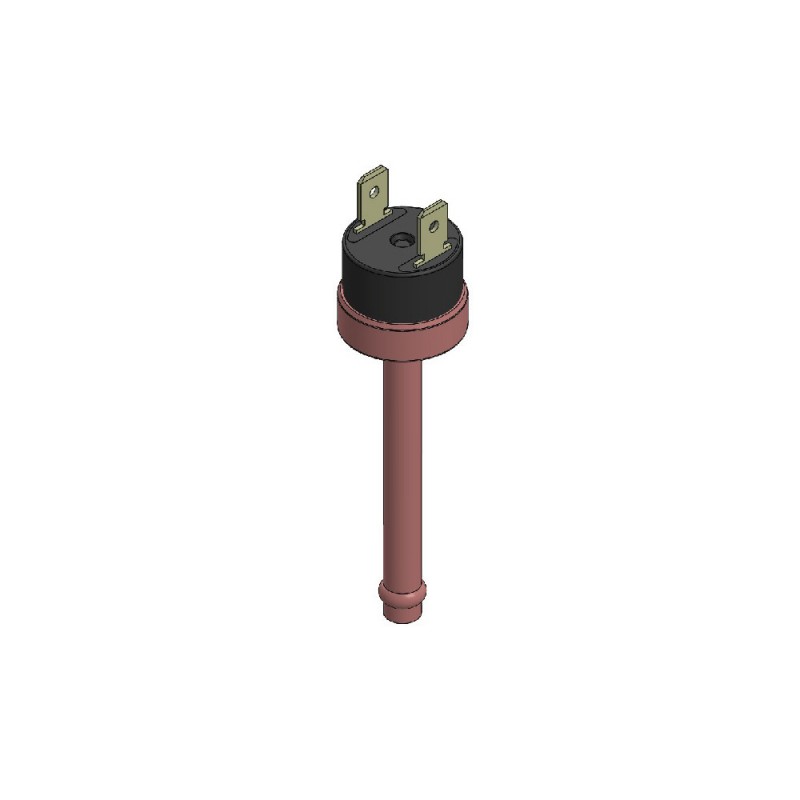

DANFOSS REFRIGERATION 061F7402 061F7402 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061F7402 DANFOSS REFRIGERATION Cartridge pressure switch ACB-2UB66

Name: 061F7402 DANFOSS REFRIGERATION Cartridge pressure switch ACB-2UB66
Brand: DANFOSS REFRIGERATION
SKU: DAO061F7402
Price: 35.85 USD
Availability: OutOfStock

Reference: 061F7402

Manufacturer: DANFOSS REFRIGERATION

Description:

Cartridge pressure switch ACB-2UB66

ACB Cartridge Switch 2UA152 I/50

Cartridge pressure switch, ACB, 1.5 bar, 0.5 bar

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 1.531,03 €

Unit Price: 30,6206 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Higher activ. pressure [bar]: 1.5, Lower activ. pressure [bar]: 0.5, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Solder, ODM, Pressure connection size: 1/4 in, Electrical connection: Spade connectors, Enclosure rating IP: IP40

Product details

Gross weight	0.036 Kilogram
Net weight	0.027 Kilogram
Volume	0.377 Liter
EAN	5702428265508

Type	ACB
Product group	Switches and thermostats
Product Name Description	Cartridge pressure switch

Gross weight	0.036 Kilogram
Net weight	0.027 Kilogram
Volume	0.377 Liter
EAN	5702428265508
Type	ACB
Product group	Switches and thermostats
Product Name Description	Cartridge pressure switch

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-20 °F
Approval	CE CE 0035 PED TÜV C UL US UL60730
Burst pressure [bar]	200 bar
Burst pressure [psig]	2900 psig
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPST(NO)
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical connection	Spade connectors
Enclosure rating IP	IP40
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	1.5 bar
Higher activ. pressure [psi]	22 psi
Housing	Regular
Lower activ. pressure [bar]	0.5 bar
Lower activ. pressure [psi]	7 psi
Lubricants compatibility	Oilfree applications

Max. Working Pressure [bar]	35 bar
Max. Working Pressure [psig]	508 psig
Medium temperature range [°C] [max]	135 °C
Medium temperature range [°C] [min]	-55 °C
Medium temperature range [°F] [max]	275 °F
Medium temperature range [°F] [min]	-70 °F
Oil free refrigerants	R134a R513A
Packing format	Industrial pack
Pressure connection notes	Cu-tube (tip=3mm)
Pressure connection size	1/4 in
Pressure connection size [mm]	6.35 mm
Pressure connection type	Solder, ODM
Pressure range category	Low pressure
Product accessories	Switches accessories
Quantity per packing format	50 pc
REACH Candidate List substances	No
Refrigerants	R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A
Reset function	Auto
Serviceable	No
Specification key	ACB-2UA152
UL approved refrigerants	R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A
UL mark	Yes

Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-20 °F
Approval	CE CE 0035 PED TÜV C UL US UL60730
Burst pressure [bar]	200 bar
Burst pressure [psig]	2900 psig
CE mark	Yes
China RoHS compliance	Yes
China RoHS exemption clause	No
Contact function	SPST(NO)
Contact rating	AC=6 A, 250 V
Contains batteries	No
Electrical connection	Spade connectors
Enclosure rating IP	IP40
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Higher activ. pressure [bar]	1.5 bar
Higher activ. pressure [psi]	22 psi
Housing	Regular
Lower activ. pressure [bar]	0.5 bar
Lower activ. pressure [psi]	7 psi
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	35 bar
Max. Working Pressure [psig]	508 psig
Medium temperature range [°C] [max]	135 °C
Medium temperature range [°C] [min]	-55 °C
Medium temperature range [°F] [max]	275 °F
Medium temperature range [°F] [min]	-70 °F
Oil free refrigerants	R134a R513A
Packing format	Industrial pack
Pressure connection notes	Cu-tube (tip=3mm)
Pressure connection size	1/4 in
Pressure connection size [mm]	6.35 mm
Pressure connection type	Solder, ODM
Pressure range category	Low pressure
Product accessories	Switches accessories
Quantity per packing format	50 pc
REACH Candidate List substances	No
Refrigerants	R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A
Reset function	Auto
Serviceable	No
Specification key	ACB-2UA152
UL approved refrigerants	R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A
UL mark	Yes
