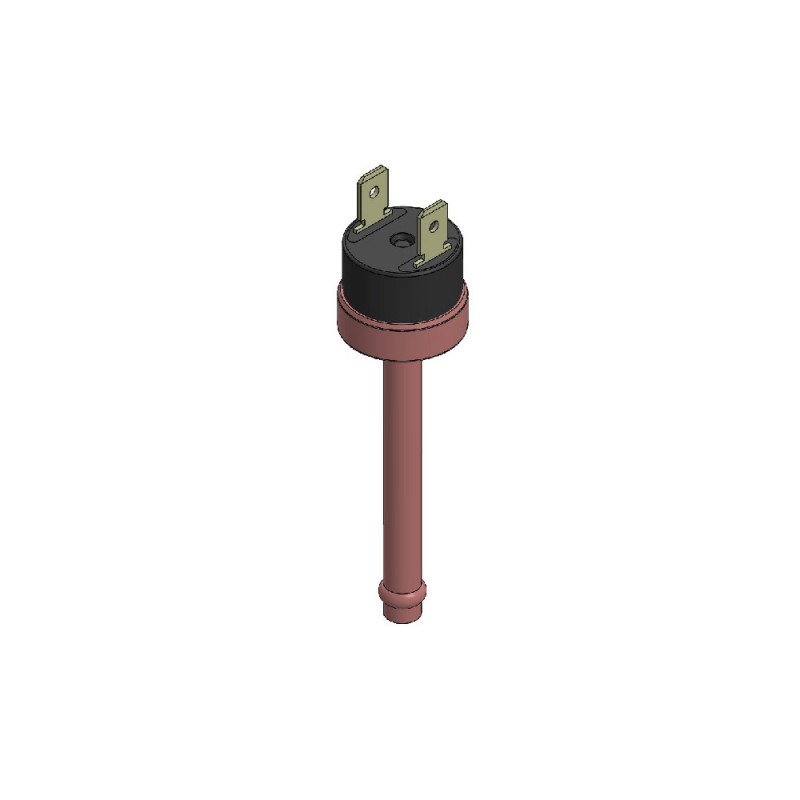

061F7220 DANFOSS REFRIGERATION Cartridge pressure switch ACB IACB-2UA82
061F7220
DANFOSS REFRIGERATION
300
Cartridge pressure switch ACB IACB-2UA82
Cartridge pressure switch, ACB, 2.9 bar, 1.5 bar
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Higher activ. pressure [bar]: 2.9, Lower activ. pressure [bar]: 1.5, Reset function: Auto, Contact function: SPST(NO), Pressure connection type: Solder, ODM, Electrical connection: Spade connectors, Enclosure rating IP: IP40
Product details
| Gross weight | 0.023 Kilogram |
| Net weight | 0.022 Kilogram |
| Volume | 0.069 Liter |
| EAN | 5702428266307 |
| Type | ACB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Gross weight | 0.023 Kilogram |
| Net weight | 0.022 Kilogram |
| Volume | 0.069 Liter |
| EAN | 5702428266307 |
| Type | ACB |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE 0035 TÜV C UL US UL60730 |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contact function | SPST(NO) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Spade connectors |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Higher activ. pressure [bar] | 2.9 bar |
| Higher activ. pressure [psi] | 42 psi |
| Housing | Regular |
| Lower activ. pressure [bar] | 1.5 bar |
| Lower activ. pressure [psi] | 22 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 508 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Cu-tube (tip=7mm) |
| Pressure connection size [mm] | 6 mm |
| Pressure connection type | Solder, ODM |
| Pressure range category | Low pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 300 pc |
| REACH Candidate List substances | No |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| Serviceable | No |
| Specification key | ACB-2UA82 |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| UL mark | Yes |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | CE 0035 TÜV C UL US UL60730 |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contact function | SPST(NO) |
| Contact rating | AC=6 A, 250 V |
| Contains batteries | No |
| Electrical connection | Spade connectors |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Higher activ. pressure [bar] | 2.9 bar |
| Higher activ. pressure [psi] | 42 psi |
| Housing | Regular |
| Lower activ. pressure [bar] | 1.5 bar |
| Lower activ. pressure [psi] | 22 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 35 bar |
| Max. Working Pressure [psig] | 508 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Oil free refrigerants | R134a R513A |
| Packing format | Industrial pack |
| Pressure connection notes | Cu-tube (tip=7mm) |
| Pressure connection size [mm] | 6 mm |
| Pressure connection type | Solder, ODM |
| Pressure range category | Low pressure |
| Product accessories | Switches accessories |
| Quantity per packing format | 300 pc |
| REACH Candidate List substances | No |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| Serviceable | No |
| Specification key | ACB-2UA82 |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061F7220 061F7220 EN_061F9676.pdf | 2 Mbytes |
|
