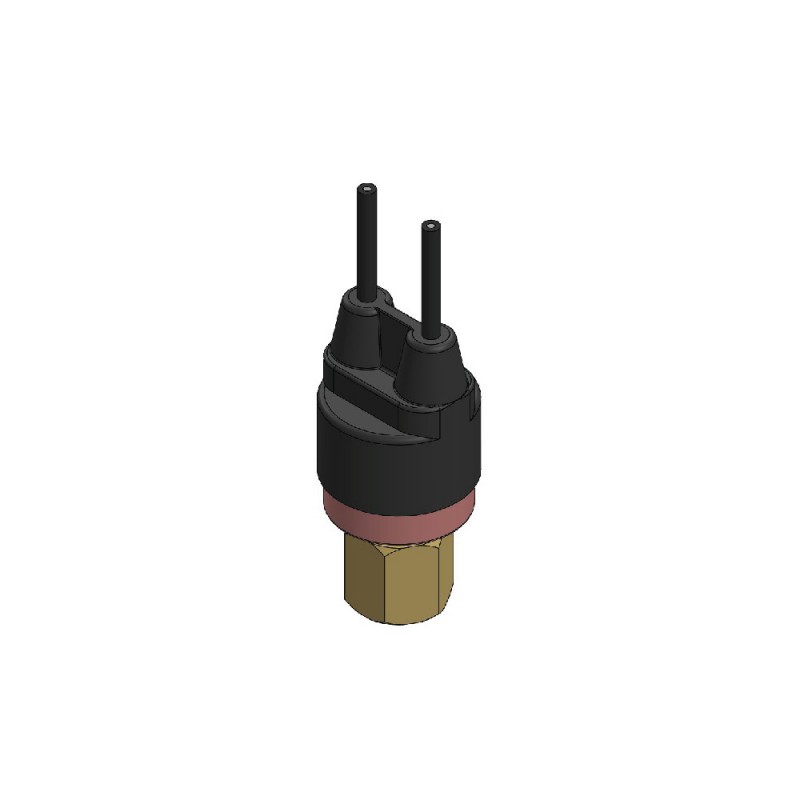

061F6091 DANFOSS REFRIGERATION Cartridge pressure switch ACB CC-80W
061F6091
DANFOSS REFRIGERATION
100
Cartridge pressure switch ACB CC-80W
Cartridge pressure switch, ACB, 22.00 bar, 18.00 bar
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Higher activ. pressure [bar]: 22.00, Lower activ. pressure [bar]: 18.00, Reset function: Auto, Contact function: SPST(NC), Pressure connection type: Flare, Pressure connection size: 1/4 in, Electrical connection: Cable, Enclosure rating IP: IP65
Product details
| Gross weight | 0.079 Kg |
| Net weight | 0.074 Kg |
| Volume | 0.182 Liter |
| EAN | 5702428267649 |
| Gross weight | 0.079 Kg |
| Net weight | 0.074 Kg |
| Volume | 0.182 Liter |
| EAN | 5702428267649 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | C UL US UL873 CE 0035 TÜV UKCA |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 47.24 in |
| Cable length [m] | 1.2 m |
| Cable type | AWG18 |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| Higher activ. pressure [bar] | 22 bar |
| Higher activ. pressure [psi] | 319 psi |
| Housing | Regular hot-melt |
| In scope of WEEE and contain batteries | No |
| Lower activ. pressure [bar] | 18 bar |
| Lower activ. pressure [psi] | 261 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Mounting | Vertical +/- 45º |
| Oil free refrigerants | R513A R1234ze(E) R134a |
| Packing format | Industrial pack |
| Pressure connection notes | Deflator |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| SCIP dossier no. | 079d01cc-2047-493a-94b7-984b80c43a88 |
| SCIP dossier product name | ACB-LCB_ Cartridge pressure switch |
| Serviceable | No |
| Specification key | ACB-2UB162W |
| Type | ACB |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Wire colour | Black |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -20 °F |
| Approval | C UL US UL873 CE 0035 TÜV UKCA |
| Burst pressure [bar] | 200 bar |
| Burst pressure [psig] | 2900 psig |
| Cable length [in] | 47.24 in |
| Cable length [m] | 1.2 m |
| Cable type | AWG18 |
| Contact function | SPST(NC) |
| Contact rating | AC=6 A, 250 V |
| Electrical connection | Cable |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| Higher activ. pressure [bar] | 22 bar |
| Higher activ. pressure [psi] | 319 psi |
| Housing | Regular hot-melt |
| In scope of WEEE and contain batteries | No |
| Lower activ. pressure [bar] | 18 bar |
| Lower activ. pressure [psi] | 261 psi |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 653 psig |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -55 °C |
| Medium temperature range [°F] [max] | 275 °F |
| Medium temperature range [°F] [min] | -70 °F |
| Mounting | Vertical +/- 45º |
| Oil free refrigerants | R513A R1234ze(E) R134a |
| Packing format | Industrial pack |
| Pressure connection notes | Deflator |
| Pressure connection size | 1/4 in |
| Pressure connection type | Flare |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Product accessories | Switches accessories |
| Product group | Switches and thermostats |
| Product Name Description | Cartridge pressure switch |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Reset function | Auto |
| SCIP dossier no. | 079d01cc-2047-493a-94b7-984b80c43a88 |
| SCIP dossier product name | ACB-LCB_ Cartridge pressure switch |
| Serviceable | No |
| Specification key | ACB-2UB162W |
| Type | ACB |
| UL approved refrigerants | R125 R134a R22 R404A R407C R407H R410A R438A R448A R449A R452A R513A |
| Wire colour | Black |
Datasheet - PDF
