![061B813966 DANFOSS REFRIGERATION Temperature range [°C]: 70 120, Reset function: Auto, Contact function: SPD..](https://www.electricautomationnetwork.com/1315902-large_default/061b813966-danfoss-refrigeration-temperature-range-c-70-120-reset-function-auto-contact-function-spd.jpg "061B813966 DANFOSS REFRIGERATION Temperature range [°C]: 70 120, Reset function: Auto, Contact function: SPD..")
View larger
![061B813966 DANFOSS REFRIGERATION Temperature range [°C]: 70 120, Reset function: Auto, Contact function: SPD..](https://www.electricautomationnetwork.com/1315902-thickbox_default/061b813966-danfoss-refrigeration-temperature-range-c-70-120-reset-function-auto-contact-function-spd.jpg "061B813966 DANFOSS REFRIGERATION Temperature range [°C]: 70 120, Reset function: Auto, Contact function: SPD..")

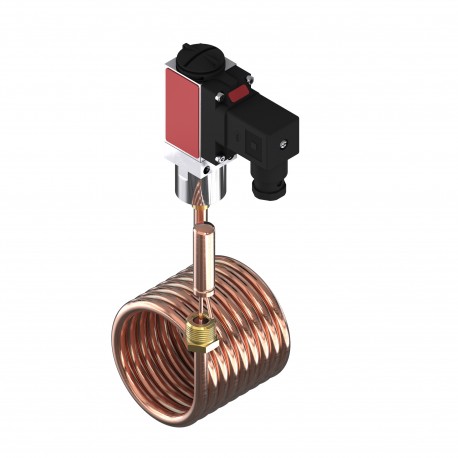

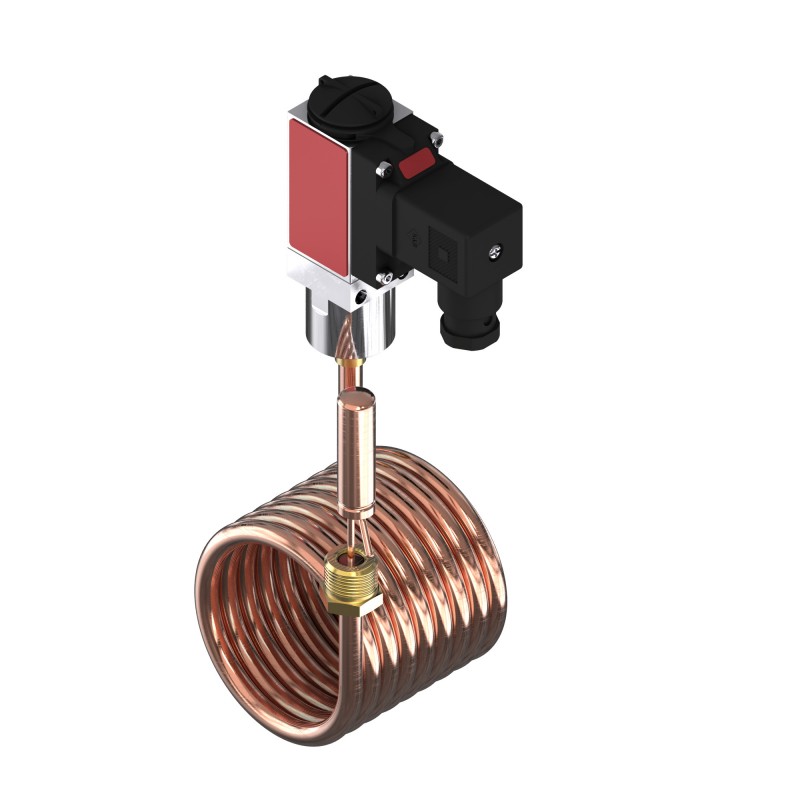

061B813966 DANFOSS REFRIGERATION Temperature range [°C]: 70 120, Reset function: Auto, Contact function: SPD..
061B813966
DANFOSS REFRIGERATION
Temperature range [°C]: 70 - 120, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Capillary tube length [mm]: 2000, Housing protection degree: IP65
MBC 8100 Thermostat M/6
Thermostat, MBC 8100
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Temperature range [°C]: 70 - 120, Reset function: Auto, Contact function: SPDT, Sensor type: Remote bulb, Enclosure rating IP: IP65
Product details
| Gross weight | 0.732 Kilogram |
| Net weight | 0.448 Kilogram |
| Volume | 3.48 Liter |
| EAN | 5702423210527 |
| Type | MBC 8100 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Gross weight | 0.732 Kilogram |
| Net weight | 0.448 Kilogram |
| Volume | 3.48 Liter |
| EAN | 5702423210527 |
| Type | MBC 8100 |
| Product group | Switches and thermostats |
| Product Name Description | Thermostat |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Armoring | Yes |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| CE mark | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Differential (FS) [K] | 4 K |
| Differential type | Fixed (max. value) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | Armored cap. tube |
| EU RoHS compliance | Out of scope |
| Factory setting (FS) [°C] | 97 °C |
| Factory setting type | Dedicated |
| Max. sensor temperature [°C] | 220 °C |
| Max. sensor temperature [°F] | 428 °F |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Parts included | Sensor pocket |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| SCIP dossier product name | MBC 8100 8000 Temperature Switch |
| Sensor pocket length min. [in] | 2 9/16 in |
| Sensor pocket length min. [mm] | 65 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] | 13 x 50 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Specification key | 2431-1A02000 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | 70 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | 158 °F |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ABS BV CCC CCS CE DNV EAC GL KRS LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK |
| Armoring | Yes |
| Cap. tube length fraction [in] | 78 3/4 in |
| Capillary tube length [mm] | 2000 mm |
| CE mark | Yes |
| Charge type | Adsorption |
| China RoHS compliance | Yes |
| Connection for pocket or hose | M 18 x 1.5 |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Differential (FS) [K] | 4 K |
| Differential type | Fixed (max. value) |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | Armored cap. tube |
| EU RoHS compliance | Out of scope |
| Factory setting (FS) [°C] | 97 °C |
| Factory setting type | Dedicated |
| Max. sensor temperature [°C] | 220 °C |
| Max. sensor temperature [°F] | 428 °F |
| Other RoHS documentation | Saudi Arabia RoHS |
| Packing format | Multi pack |
| Parts included | Sensor pocket |
| Product accessories | Switches accessories |
| Product description | Thermostat |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Reset function | Auto |
| SCIP dossier no. | 18ff26a2-cbcf-44c1-8f28-74e482b38eed |
| SCIP dossier product name | MBC 8100 8000 Temperature Switch |
| Sensor pocket length min. [in] | 2 9/16 in |
| Sensor pocket length min. [mm] | 65 mm |
| Sensor size (Ø x L) [in] | 1/2 x 2 in |
| Sensor size (Ø x L) [mm] | 13 x 50 mm |
| Sensor type | Remote bulb |
| Serviceable | No |
| Specification key | 2431-1A02000 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | 70 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | 158 °F |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061B813966 EN_061B811266.pdf | 1 Mbytes |
|
