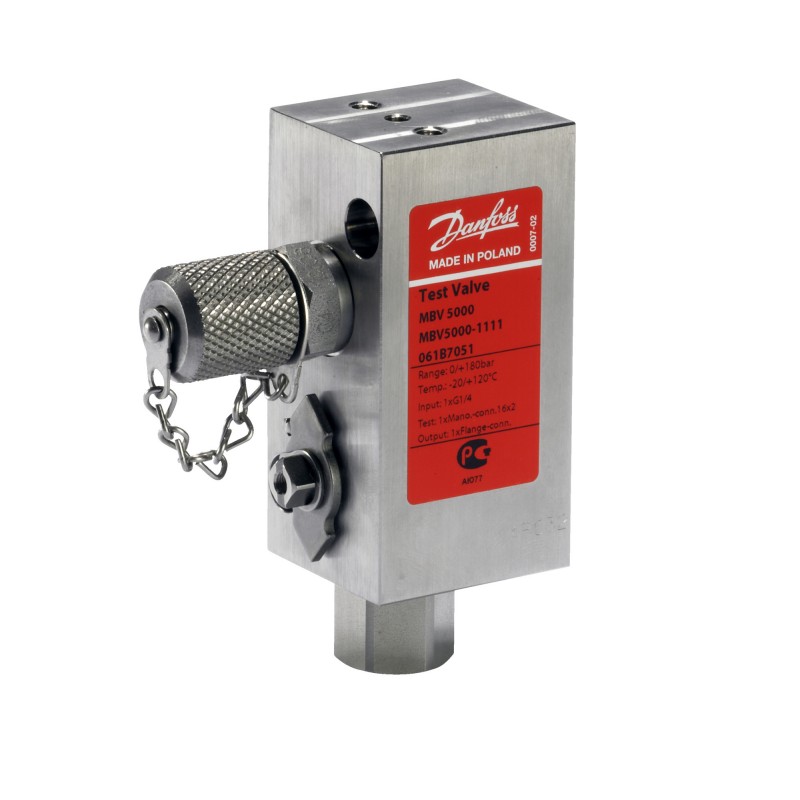

061B7051 DANFOSS REFRIGERATION Test valve
061B7051
DANFOSS REFRIGERATION
Test valve
MBV 5000 Test Valve M/6
Test valve, MBV 5000
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure connection type: G, Pressure connection size: 1/4, Pressure range (Pi) [bar]: 0 - 120
Product details
| Gross weight | 1.024 Kilogram |
| Net weight | 0.942 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702428483797 |
| Type | MBV 5000 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Test valve |
| Gross weight | 1.024 Kilogram |
| Net weight | 0.942 Kilogram |
| Volume | 0.854 Liter |
| EAN | 5702428483797 |
| Type | MBV 5000 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Test valve |
| Ambient temperature range [°C] [max] | 120 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 248 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | EAC LLC CDC EURO-TYSK RoHS |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Further information | Stainless steel |
| MiniMess included | Yes |
| Number of inputs [pc] | 1 pc |
| Number of outputs [pc] | 1 pc |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range (Pi) [bar] [max] | 120 bar |
| Pressure range (Pi) [bar] [min] | 0 bar |
| Pressure range (Pi) [bar] oil [max] | 180 bar |
| Pressure range (Pi) [bar] oil [min] | 0 bar |
| Pressure thread conn standard | ISO 228-1 |
| Pulse-snubber | No |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | No |
| Specification key | MBV5000-1111S |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
| Ambient temperature range [°C] [max] | 120 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 248 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | EAC LLC CDC EURO-TYSK RoHS |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Further information | Stainless steel |
| MiniMess included | Yes |
| Number of inputs [pc] | 1 pc |
| Number of outputs [pc] | 1 pc |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 3852-E |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range (Pi) [bar] [max] | 120 bar |
| Pressure range (Pi) [bar] [min] | 0 bar |
| Pressure range (Pi) [bar] oil [max] | 180 bar |
| Pressure range (Pi) [bar] oil [min] | 0 bar |
| Pressure thread conn standard | ISO 228-1 |
| Pulse-snubber | No |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | No |
| Specification key | MBV5000-1111S |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061B7051 061B7051 ES_061B720066.pdf | 712 Kbytes |
|
