Images are for illustrative purposes only. Please refer to data sheet for details.

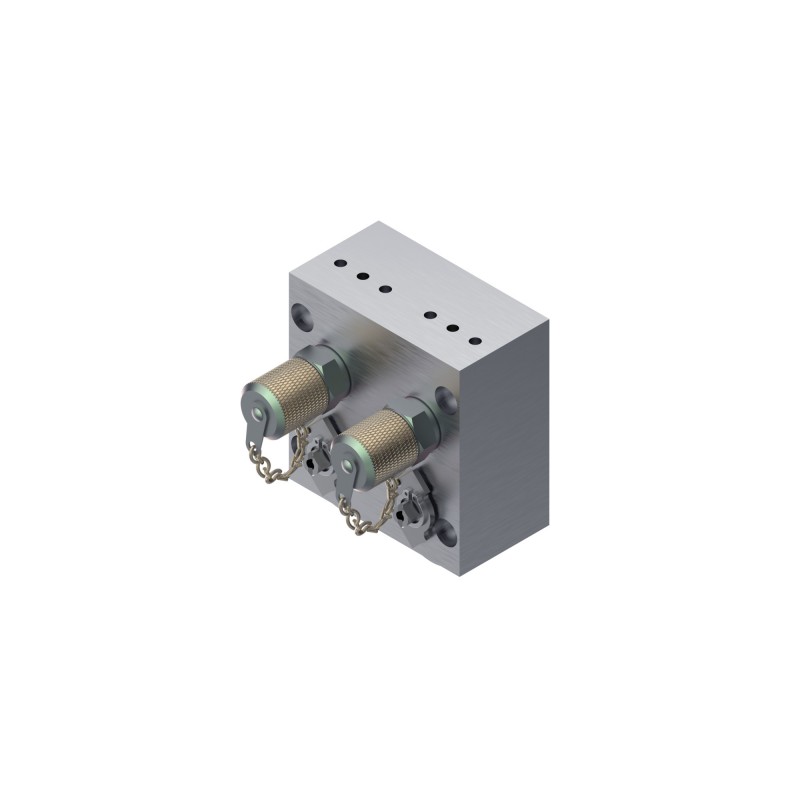

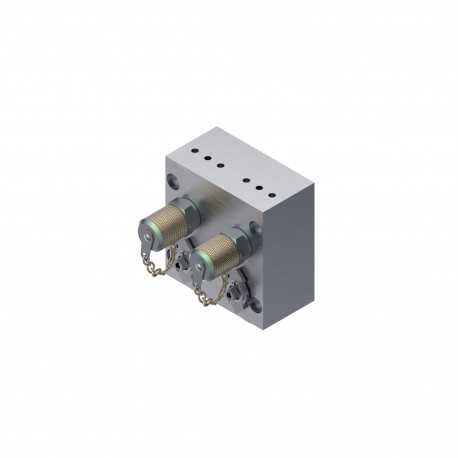

061B7050 DANFOSS REFRIGERATION Test valve
Reference: 061B7050
Manufacturer: DANFOSS REFRIGERATION
Description:
Test valve
MBV 5000 Test Valve M/18
Test valve, MBV 5000
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
MORE INFO
Pressure connection type: Flange, Pressure range (Pi) [bar]: 0 - 120
Product details
| Gross weight | 0.851 Kilogram |
| Net weight | 0.794 Kilogram |
| Volume | 1.118 Liter |
| EAN | 5702428229340 |
| Type | MBV 5000 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Test valve |
| Gross weight | 0.851 Kilogram |
| Net weight | 0.794 Kilogram |
| Volume | 1.118 Liter |
| EAN | 5702428229340 |
| Type | MBV 5000 |
| Product group | Shut-off and regulating valves |
| Product Name Description | Test valve |
| Ambient temperature range [°C] [max] | 120 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 248 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | EAC LLC CDC EURO-TYSK RoHS |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| MiniMess included | Yes |
| Number of inputs [pc] | 1 pc |
| Number of outputs [pc] | 2 pc |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection type | Flange |
| Pressure range (Pi) [bar] [max] | 120 bar |
| Pressure range (Pi) [bar] [min] | 0 bar |
| Pressure range (Pi) [bar] oil [max] | 180 bar |
| Pressure range (Pi) [bar] oil [min] | 0 bar |
| Pulse-snubber | No |
| Quantity per packing format | 18 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | cd7d33e0-ff13-4f81-9c95-994a26062075 |
| SCIP dossier product name | MBV 1000-5000 |
| Specification key | MBV5000-221X |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
| Ambient temperature range [°C] [max] | 120 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 248 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | EAC LLC CDC EURO-TYSK RoHS |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| MiniMess included | Yes |
| Number of inputs [pc] | 1 pc |
| Number of outputs [pc] | 2 pc |
| Output connection type | Flange |
| Packing format | Multi pack |
| Pressure connection type | Flange |
| Pressure range (Pi) [bar] [max] | 120 bar |
| Pressure range (Pi) [bar] [min] | 0 bar |
| Pressure range (Pi) [bar] oil [max] | 180 bar |
| Pressure range (Pi) [bar] oil [min] | 0 bar |
| Pulse-snubber | No |
| Quantity per packing format | 18 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | cd7d33e0-ff13-4f81-9c95-994a26062075 |
| SCIP dossier product name | MBV 1000-5000 |
| Specification key | MBV5000-221X |
| Test function | Separate |
| Test pressure connection size | 16 x 2 |
| Test pressure connection type | M |
