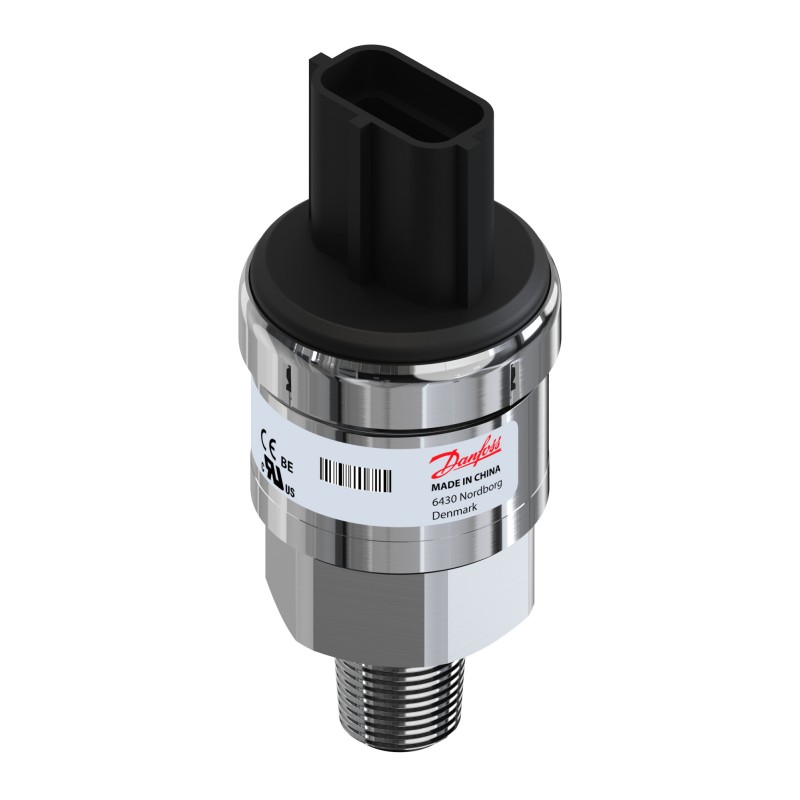

060G6490 DANFOSS REFRIGERATION Pressure transmitter
060G6490
DANFOSS REFRIGERATION
Pressure transmitter
Sensor AKS 32R 1/4 NPTF, 0-200psi
Pressure transmitter, AKS 32R, 0 bar - 13.8 bar, 0 psi - 200 psi
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: AMP Econoseal, J-series, Pressure connection type: NPTF, Pressure connection size: 1/4-18, Specification key: AKS 32R-6236-G1AF08-0
Product details
| Gross weight | 0.132 Kilogram |
| Net weight | 0.119 Kilogram |
| Volume | 0.258 Liter |
| EAN | 5702428939591 |
| Type | AKS 32R |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.132 Kilogram |
| Net weight | 0.119 Kilogram |
| Volume | 0.258 Liter |
| EAN | 5702428939591 |
| Type | AKS 32R |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US UL Recognized CE GOST POCC |
| Approval standard | 6967179 E227388 E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 40 °C |
| Compensated temp. range [°C] [min] | -30 °C |
| Compensated temp. range [°F] [max] | 104 °F |
| Compensated temp. range [°F] [min] | -22 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Integrated |
| Electrical conn. Male/Female | Male |
| Electrical connection | AMP Econoseal, J-series |
| Electrical connection size | 3 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 98 |
| In scope of WEEE | Yes |
| International Article Number | 5702428939591 |
| Intrinsically safe | No |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Ratio metric |
| Overload pressure max. [psi] | 725 psi |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPTF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 13.8 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 200 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | AKS 32R-6236-G1AF08-0 |
| Supply voltage [V] DC | 5 V |
| UL evaluated | Yes |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US UL Recognized CE GOST POCC |
| Approval standard | 6967179 E227388 E31024 |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 40 °C |
| Compensated temp. range [°C] [min] | -30 °C |
| Compensated temp. range [°F] [max] | 104 °F |
| Compensated temp. range [°F] [min] | -22 °F |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Integrated |
| Electrical conn. Male/Female | Male |
| Electrical connection | AMP Econoseal, J-series |
| Electrical connection size | 3 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flush diaphragm | No |
| High Clipping Level | 98 |
| In scope of WEEE | Yes |
| International Article Number | 5702428939591 |
| Intrinsically safe | No |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Output signal | Ratio metric |
| Overload pressure max. [psi] | 725 psi |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPTF |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 13.8 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 200 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Ratiometric [V] [max] | 4.5 V |
| Ratiometric [V] [min] | 0.5 V |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| SCIP dossier product name | AKS/MBS |
| Specification key | AKS 32R-6236-G1AF08-0 |
| Supply voltage [V] DC | 5 V |
| UL evaluated | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 060G6490 060G6490 FR_060G1037.pdf | 539 Kbytes |
|
