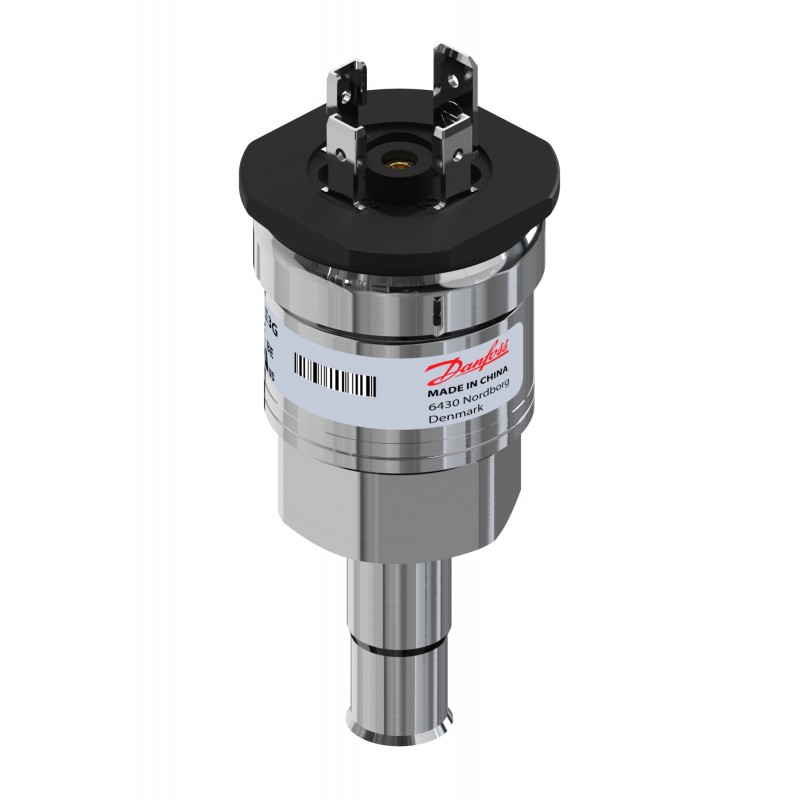

DANFOSS REFRIGERATION 060G6408 060G6408 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

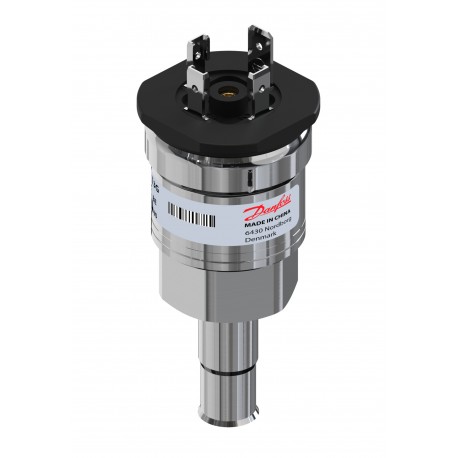

060G6408 DANFOSS REFRIGERATION Pressure transmitter

Name: 060G6408 DANFOSS REFRIGERATION Pressure transmitter
Brand: DANFOSS REFRIGERATION
SKU: DAO060G6408
Price: 211.98 USD
Availability: OutOfStock

Reference: 060G6408

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter

Sensor AKS 2050 3/8 Solder, -1-59bar

Pressure transmitter, AKS 2050, -1 bar - 59 bar, -14.5 psi - 855.5 psi

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 178,76 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: Solder, ODF, Pressure connection size: 3/8, Specification key: AKS 2050-N636-A0EB08-0

Product details

Gross weight	0.139 Kilogram
Net weight	0.117 Kilogram
Volume	0.402 Liter
EAN	5702428906449

Type	AKS 2050
Product group	Sensors
Product Name Description	Pressure transmitter

Gross weight	0.139 Kilogram
Net weight	0.117 Kilogram
Volume	0.402 Liter
EAN	5702428906449
Type	AKS 2050
Product group	Sensors
Product Name Description	Pressure transmitter

+ output	Pin 3
+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	E227388 E31024
CE mark	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	40 °C
Compensated temp. range [°C] [min]	-30 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	A1-3.1-AU Ø31
Electrical conn. Male/Female	Male
Electrical connection	Angular connector
Electrical connection size	4 pin
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	98
Identical product	060G4577
In scope of WEEE	Yes
International Article Number	5702428906449

Intrinsically safe	No
Low Clipping level	4
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Ratio metric
Overload pressure max. [bar]	360 bar
Overload pressure max. [psi]	5221 psi
Packing format	Multi pack
Pressure connection size	3/8
Pressure connection standard	NONE
Pressure connection type	Solder, ODF
Pressure Male/Female	Male
Pressure range [bar] [max]	59 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	855.5 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Pulse-snubber	Yes
Quantity per packing format	14 pc
Ratiometric of Vsupply [%] [max]	90 %
Ratiometric of Vsupply [%] [min]	10 %
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	AKS 2050-N636-A0EB08-0
Supply voltage [V] DC [max]	5.5 V
Supply voltage [V] DC [min]	4.5 V
UL mark	Yes

+ output	Pin 3
+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	1 %
Accuracy, typical [±FS%]	0.5 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	E227388 E31024
CE mark	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	40 °C
Compensated temp. range [°C] [min]	-30 °C
Compensated temp. range [°F] [max]	104 °F
Compensated temp. range [°F] [min]	-22 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	A1-3.1-AU Ø31
Electrical conn. Male/Female	Male
Electrical connection	Angular connector
Electrical connection size	4 pin
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	98
Identical product	060G4577
In scope of WEEE	Yes
International Article Number	5702428906449
Intrinsically safe	No
Low Clipping level	4
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Ratio metric
Overload pressure max. [bar]	360 bar
Overload pressure max. [psi]	5221 psi
Packing format	Multi pack
Pressure connection size	3/8
Pressure connection standard	NONE
Pressure connection type	Solder, ODF
Pressure Male/Female	Male
Pressure range [bar] [max]	59 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	855.5 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Pulse-snubber	Yes
Quantity per packing format	14 pc
Ratiometric of Vsupply [%] [max]	90 %
Ratiometric of Vsupply [%] [min]	10 %
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	AKS 2050-N636-A0EB08-0
Supply voltage [V] DC [max]	5.5 V
Supply voltage [V] DC [min]	4.5 V
UL mark	Yes
