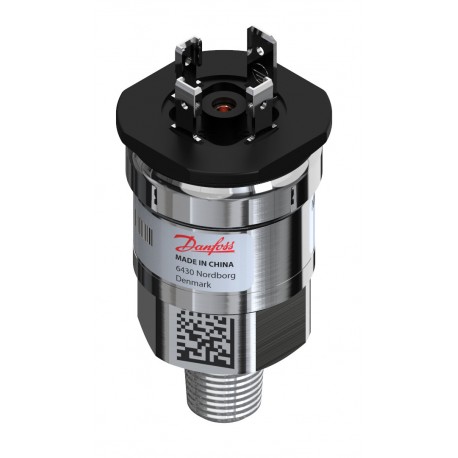

060G6342 DANFOSS REFRIGERATION Pressure transmitter, AKS 2050
060G6342
DANFOSS REFRIGERATION
Pressure transmitter, AKS 2050
Sensor AKS 2050 1/4 NPT -1-59bar,CO2,DIN
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Pressure transmitter, Type: AKS 2050, Pressure connection size: 1/4-18, Pressure connection type: NPT, Electrical connection size: 4 pin, Electrical connection: DIN-plug
| Gross weight | 0.14 Kg |
| Net weight | 0.13 Kg |
| EAN | 5702428885744 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ATEX C UR CSA |
| Approval comments | ATEX Ex nA IIA T3 Gc |
| Approval standard | E227388 E31024 |
| Compensated temp. range [°C] [Max] | 40 °C |
| Compensated temp. range [°C] [Min] | -30 °C |
| Compensated temp. range [°F] [Max] | 104 °F |
| Compensated temp. range [°F] [Min] | -22 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | DIN-plug |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Flush diaphragm | No |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 85 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 185 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Overload pressure max. [bar] | 354 bar |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 59 bar |
| Pressure range [bar] [Min] | -1 bar |
| Pressure range [psi] [Max] | 855.72 psi |
| Pressure range [psi] [Min] | -14.5 psi |
| Pressure unit reference | Gauge (relative) |
| Product family name | AKS |
| Product Group | Sensors |
| Product name | Pressure transmitter |
| Product type | AKS 2050 |
| Pulse-snubber | Yes |
| Quantity per packing format | 20 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| Response time max. [ms] | 4 ms |
| Specification key | AKS 2050-N636-A0EC04-0 |
| Supply voltage [V] DC [Max] | 8 V |
| Supply voltage [V] DC [Min] | 4.75 V |
