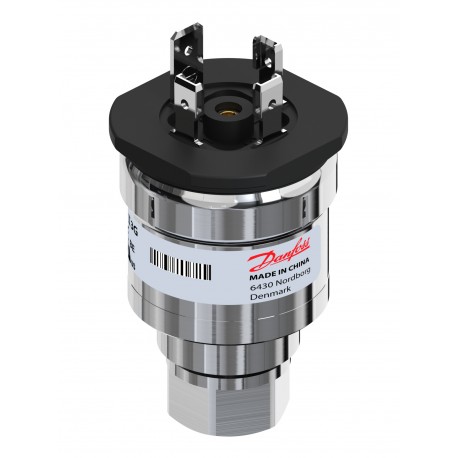

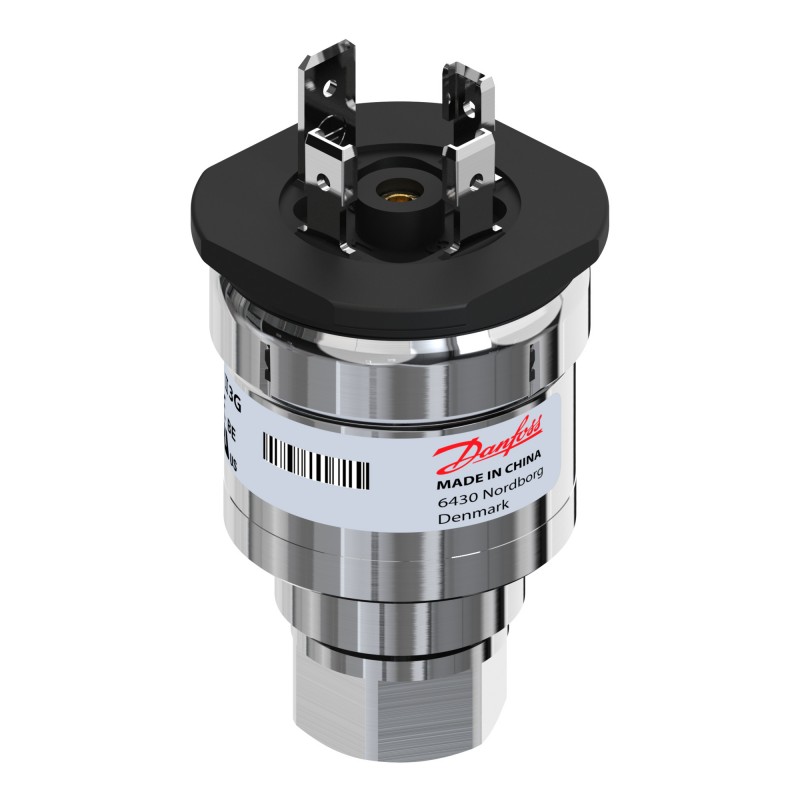

060G6341 DANFOSS REFRIGERATION Pressure transmitter
060G6341
DANFOSS REFRIGERATION
Pressure transmitter
Sensor AKS 32R 1/4 Female Flare,-1-34bar
Pressure transmitter, AKS 32R, -1.00 bar - 34.00 bar, -14.50 psi - 493.13 psi
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 32R-DG36-A0BF08-0
Product details
| Gross weight | 0.108 Kg |
| Net weight | 0.093 Kg |
| Volume | 0.256 Liter |
| EAN | 5702428889193 |
| Gross weight | 0.108 Kg |
| Net weight | 0.093 Kg |
| Volume | 0.256 Liter |
| EAN | 5702428889193 |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | No - out of scope |
| Flush diaphragm | No |
| High Clipping Level | 98 |
| Identical product | 060G4567 |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702428889193 |
| Intrinsically safe | No |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 210 bar |
| Overload pressure max. [psi] | 3045 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4 in w/ valvedepressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 34 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 493.13 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Specification key | AKS 32R-DG36-A0BF08-0 |
| Supply voltage [V] DC [max] | 6 V |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| Type | AKS 32R |
| + output | Pin 3 |
| + supply | Pin 1 |
| - common | Pin 2 |
| Accuracy, max. [±FS%] | 0.8 % |
| Accuracy, typical [±FS%] | 0.3 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 185 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX GOST POCC cUR |
| Approval comments | ATEX Ex ec IIA T4 Gc |
| Approval standard | 6967179 E227388 E31024 |
| Compensated temp. range [°C] [max] | 80 °C |
| Compensated temp. range [°C] [min] | 0 °C |
| Compensated temp. range [°F] [max] | 176 °F |
| Compensated temp. range [°F] [min] | 32 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | Angular connector |
| Electrical connection size | 4 pin |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | No - out of scope |
| Flush diaphragm | No |
| High Clipping Level | 98 |
| Identical product | 060G4567 |
| In scope of WEEE and contain batteries | No |
| International Article Number | 5702428889193 |
| Intrinsically safe | No |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 85 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 185 °F |
| Medium temperature range [°F] [min] | -40 °F |
| Non-linearity BFSL [±FS%] | 0.2 % |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 210 bar |
| Overload pressure max. [psi] | 3045 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 17 mm |
| Pressure connection notes | Flare 1/4 in w/ valvedepressor |
| Pressure connection size | 7/16-20 |
| Pressure connection standard | ASME B1.1 |
| Pressure connection type | UNF |
| Pressure Male/Female | Female |
| Pressure range [bar] [max] | 34 bar |
| Pressure range [bar] [min] | -1 bar |
| Pressure range [psi] [max] | 493.13 psi |
| Pressure range [psi] [min] | -14.5 psi |
| Pressure reference | Sealed gauge |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 20 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| Response time max. [ms] | 4 ms |
| SCIP dossier no. | 16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d |
| Specification key | AKS 32R-DG36-A0BF08-0 |
| Supply voltage [V] DC [max] | 6 V |
| Supply voltage [V] DC [max] | 5.5 V |
| Supply voltage [V] DC [min] | 5 V |
| Supply voltage [V] DC [min] | 4.5 V |
| Type | AKS 32R |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 060G6341 060G6341 ES_060G6343.pdf | 952 Kbytes |
 |
