060G3619
DANFOSS REFRIGERATION
1

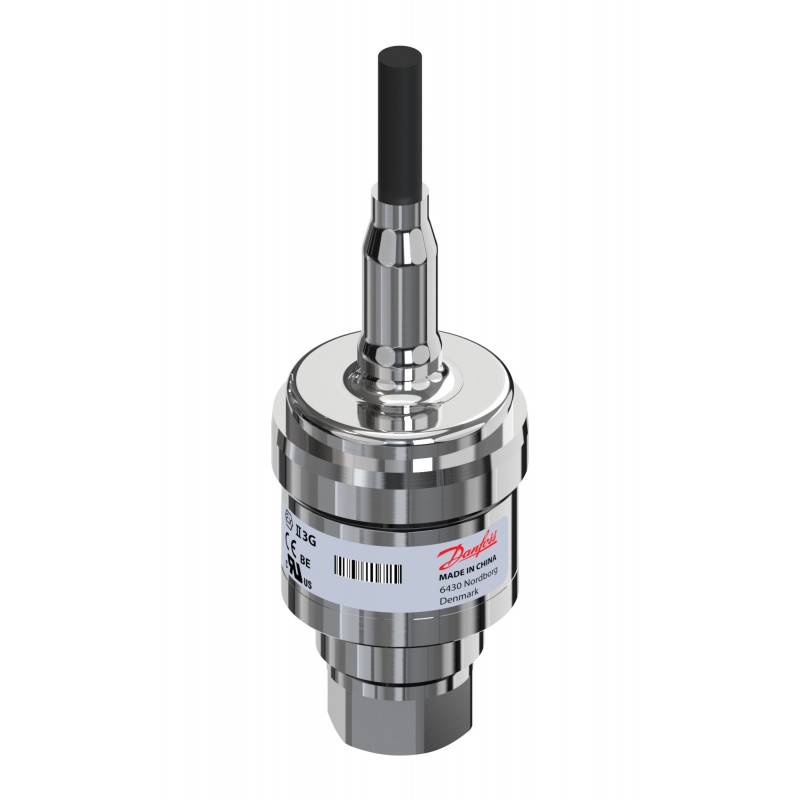

Pressure transmitter
Sensor AKS 3000 1/4 Flare, 0-30bar
Pressure transmitter, AKS 3000, 0.00 bar - 30.00 bar, 0.00 psi - 435.11 psi
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Pressure reference: Sealed gauge, Output signal: Current, Electrical connection: Cable, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 3000-C831-D1BF08-0
Gross weight | 0.386 Kg |
Net weight | 0.351 Kg |
Volume | 1.232 Liter |
EAN | 5702423189663 |
Gross weight | 0.386 Kg |
Net weight | 0.351 Kg |
Volume | 1.232 Liter |
EAN | 5702423189663 |
+ supply | Red |
- common | White |
Adj. zero point and span | No |
Ambient temperature range [°C] [max] | 85 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 185 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | ATEX GOST POCC cUR |
Approval comments | ATEX Ex ec IIA T4 Gc |
Approval standard | 6967179 E227388 E31024 |
Cable length [in] | 196 in |
Cable length [m] | 5 m |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. comments | Screened |
Electrical connection | Cable |
Enclosure rating IP | IP67 |
EU RoHS compliance | No - out of scope |
Flush diaphragm | No |
High Clipping Level | 22.4 |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423189663 |
Intrinsically safe | No |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 85 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 185 °F |
Medium temperature range [°F] [min] | -40 °F |
Non-linearity BFSL [±FS%] | 0.5 % |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 55 bar |
Packing format | Multi pack |
Pressure connection HEX [mm] | 17 mm |
Pressure connection notes | Flare 1/4 in w/ valvedepressor |
Pressure connection size | 7/16-20 |
Pressure connection standard | ISO 8434-1 |
Pressure connection type | UNF |
Pressure Male/Female | Female |
Pressure range [bar] [max] | 30 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 435.11 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Sealed gauge |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 8 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
SCIP dossier no. | 442fa760-b631-4ddb-a979-55b604269353 |
Specification key | AKS 3000-C831-D1BF08-0 |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
Type | AKS 3000 |
+ supply | Red |
- common | White |
Adj. zero point and span | No |
Ambient temperature range [°C] [max] | 85 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 185 °F |
Ambient temperature range [°F] [min] | -40 °F |
Approval | ATEX GOST POCC cUR |
Approval comments | ATEX Ex ec IIA T4 Gc |
Approval standard | 6967179 E227388 E31024 |
Cable length [in] | 196 in |
Cable length [m] | 5 m |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. comments | Screened |
Electrical connection | Cable |
Enclosure rating IP | IP67 |
EU RoHS compliance | No - out of scope |
Flush diaphragm | No |
High Clipping Level | 22.4 |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423189663 |
Intrinsically safe | No |
Low Clipping level | 3.6 |
Medium temperature range [°C] [max] | 85 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 185 °F |
Medium temperature range [°F] [min] | -40 °F |
Non-linearity BFSL [±FS%] | 0.5 % |
Output signal | Current |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 55 bar |
Packing format | Multi pack |
Pressure connection HEX [mm] | 17 mm |
Pressure connection notes | Flare 1/4 in w/ valvedepressor |
Pressure connection size | 7/16-20 |
Pressure connection standard | ISO 8434-1 |
Pressure connection type | UNF |
Pressure Male/Female | Female |
Pressure range [bar] [max] | 30 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 435.11 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Sealed gauge |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 8 pc |
REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
SCIP dossier no. | 442fa760-b631-4ddb-a979-55b604269353 |
Specification key | AKS 3000-C831-D1BF08-0 |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [max] | 32 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
Type | AKS 3000 |
Title: | Size: | Type: |
---|---|---|
060G3619 060G3619 EN_060G3899.pdf | 757 Kbytes |
