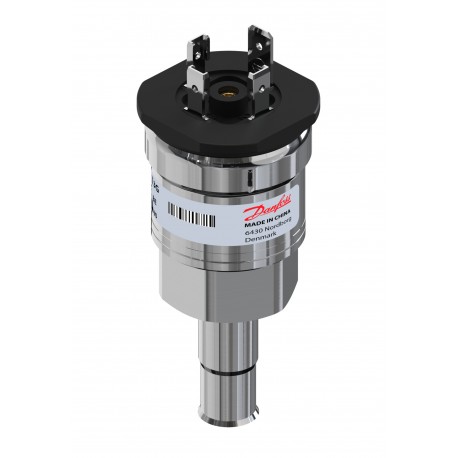

DANFOSS REFRIGERATION 060G3552 060G3552 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

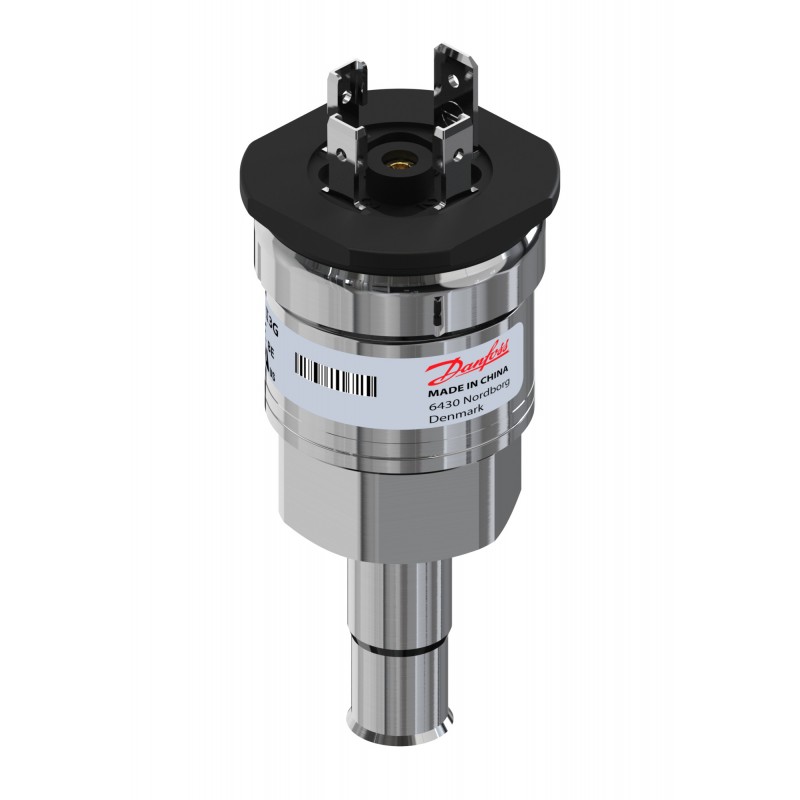

060G3552 DANFOSS REFRIGERATION Pressure transmitter

Name: 060G3552 DANFOSS REFRIGERATION Pressure transmitter
Brand: DANFOSS REFRIGERATION
SKU: DAO060G3552
Price: 167.59 USD
Availability: OutOfStock

Reference: 060G3552

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter

Sensor AKS 32R 3/8 Solder, -1-34bar

Pressure transmitter, AKS 32R, -1 bar - 34 bar, -14.5 psi - 493 psi

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 149,71 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: Solder, ODF, Pressure connection size: 3/8, Specification key: AKS 32R-DG36-A0EB08-0

Product details

Gross weight	0.138 Kilogram
Net weight	0.116 Kilogram
Volume	0.402 Liter
EAN	5702423187331

Type	AKS 32R
Product group	Sensors
Product Name Description	Pressure transmitter

Gross weight	0.138 Kilogram
Net weight	0.116 Kilogram
Volume	0.402 Liter
EAN	5702423187331
Type	AKS 32R
Product group	Sensors
Product Name Description	Pressure transmitter

+ output	Pin 3
+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.8 %
Accuracy, typical [±FS%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX C UL US UL Recognized CE GOST POCC
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	6967179 E227388 E31024
CE mark	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male
Electrical connection	Angular connector
Electrical connection size	4 pin
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	98
Identical product	060G4508
In scope of WEEE	Yes

International Article Number	5702423187331
Intrinsically safe	No
Low Clipping level	4
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Ratio metric
Overload pressure max. [bar]	55 bar
Packing format	Multi pack
Pressure connection size	3/8
Pressure connection standard	NONE
Pressure connection type	Solder, ODF
Pressure Male/Female	Male
Pressure range [bar] [max]	34 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	493 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Pulse-snubber	No
Quantity per packing format	14 pc
Ratiometric of Vsupply [%] [max]	90 %
Ratiometric of Vsupply [%] [min]	10 %
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	AKS 32R-DG36-A0EB08-0
Supply voltage [V] DC [max]	5.5 V
Supply voltage [V] DC [min]	4.5 V
UL mark	Yes

+ output	Pin 3
+ supply	Pin 1
- common	Pin 2
Accuracy, max. [±FS%]	0.8 %
Accuracy, typical [±FS%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [max]	85 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	185 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX C UL US UL Recognized CE GOST POCC
Approval comments	ATEX Ex ec IIA T4 Gc
Approval standard	6967179 E227388 E31024
CE mark	Yes
China RoHS compliance	Out of scope
Compensated temp. range [°C] [max]	80 °C
Compensated temp. range [°C] [min]	0 °C
Compensated temp. range [°F] [max]	176 °F
Compensated temp. range [°F] [min]	32 °F
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male
Electrical connection	Angular connector
Electrical connection size	4 pin
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flush diaphragm	No
High Clipping Level	98
Identical product	060G4508
In scope of WEEE	Yes
International Article Number	5702423187331
Intrinsically safe	No
Low Clipping level	4
Medium temperature range [°C] [max]	85 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	185 °F
Medium temperature range [°F] [min]	-40 °F
Non-linearity BFSL [±FS%]	0.2 %
Output signal	Ratio metric
Overload pressure max. [bar]	55 bar
Packing format	Multi pack
Pressure connection size	3/8
Pressure connection standard	NONE
Pressure connection type	Solder, ODF
Pressure Male/Female	Male
Pressure range [bar] [max]	34 bar
Pressure range [bar] [min]	-1 bar
Pressure range [psi] [max]	493 psi
Pressure range [psi] [min]	-14.5 psi
Pressure reference	Sealed gauge
Pulse-snubber	No
Quantity per packing format	14 pc
Ratiometric of Vsupply [%] [max]	90 %
Ratiometric of Vsupply [%] [min]	10 %
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Response time max. [ms]	4 ms
SCIP dossier no.	16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
SCIP dossier product name	AKS/MBS
Specification key	AKS 32R-DG36-A0EB08-0
Supply voltage [V] DC [max]	5.5 V
Supply voltage [V] DC [min]	4.5 V
UL mark	Yes
