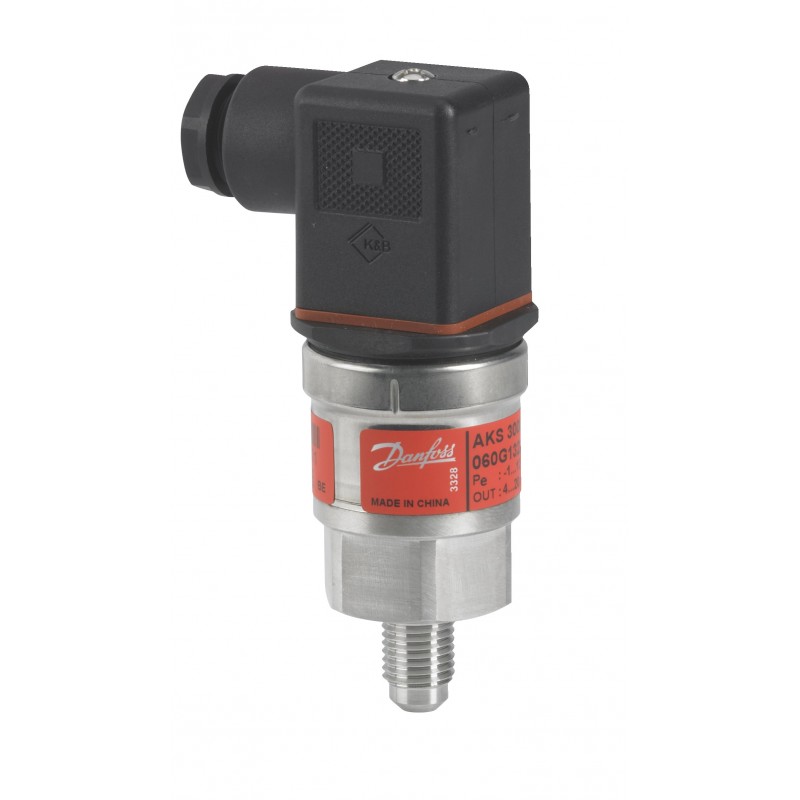

DANFOSS REFRIGERATION 060G1325 060G1325 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060G1325 DANFOSS REFRIGERATION Pressure transmitter, AKS 3000

Reference: 060G1325

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter, AKS 3000
Sensor AKS 3000 1/4 Flare, 0-18bar
Pressure Transmitter, AKS 3000, 0.00 bar - 18.00 bar, 0.00 psi - 261.07 psi

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 305,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product name: Pressure transmitter, Type: AKS 3000, Pressure connection size: 7/16-20, Pressure connection type: UNF, Electrical connection size: Pg 9, Electrical connection: DIN-plug
Gross weight 0.18 Kg
Net weight 0.16 Kg
EAN 5702423103423
+ supply Pin 1
- common Pin 2
Accuracy, max. +/- FS [%] 2 %
Accuracy, typical +/- FS [%] 1 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 85 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 185 °F
Ambient temperature range [°F] [Min] -40 °F
Approval ATEX
C UR
CSA
GOST POCC
Approval comments ATEX Ex nA IIA T3 Gc
Approval standard 6967179
E227388
E31024
Compensated temp. range [°C] [Max] 80 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 176 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. Male/Female Male and Female
Electrical connection DIN-plug
Electrical connection size Pg 9
Electrical connection standard EN 175301-803-A
Enclosure rating IP IP65
Flush diaphragm No
Intrinsically safe No
Medium temperature range [°C] [Max] 85 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -40 °F
Non-linearity BFSL ±FS [%] 0.5 %
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Overload pressure max. [bar] 40 bar
Packing format Multi pack
Pressure connection notes Flare 1/4 in
Pressure connection size 7/16-20
Pressure connection standard ASME B1.1
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 18 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 261.07 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product family name AKS
Product Group Sensors
Product name Pressure transmitter
Product type AKS 3000
Pulse-snubber No
Quantity per packing format 14 pc
Response time max. [ms] 4 ms
Specification key AKS 3000-C531-A1BC08-0
Supply voltage [V] DC [Max] 30 V
Supply voltage [V] DC [Min] 10 V
