DANFOSS REFRIGERATION060G0139 DANFOSS REFRIGERATION Pressure transmitter

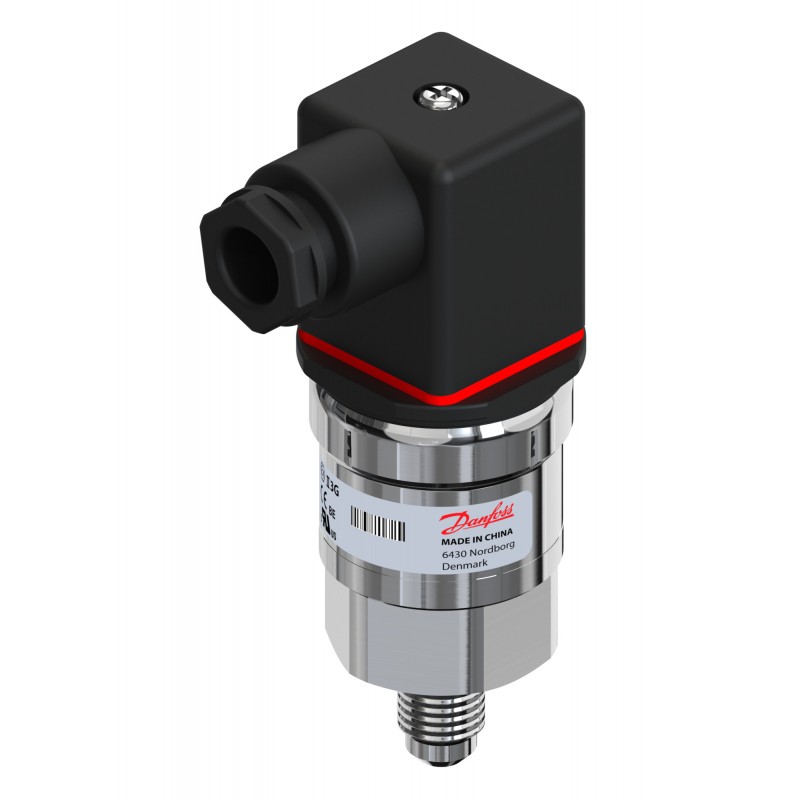

DANFOSS REFRIGERATION 060G0139 060G0139 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060G0139 DANFOSS REFRIGERATION Pressure transmitter

Reference: 060G0139

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure transmitter
Sensor AKS 32R 1/4 Flare, -1-9bar
Pressure transmitter, AKS 32R, -1.00 bar - 9.00 bar, -14.50 psi - 130.53 psi

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 138,21 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Angular connector, Pressure connection type: UNF, Pressure connection size: 7/16-20, Specification key: AKS 32R-D636-A1BC08-0

Product details

Gross weight0.174 Kg
Net weight0.152 Kg
Volume0.393 Liter
EAN5702422141204
Gross weight0.174 Kg
Net weight0.152 Kg
Volume0.393 Liter
EAN5702422141204

+ outputPin 3
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]0.8 %
Accuracy, typical [±FS%]0.3 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
GOST POCC
cUR
Approval commentsATEX Ex ec IIA T4 Gc
Approval standard6967179
E227388
E31024
Compensated temp. range [°C] [max]40 °C
Compensated temp. range [°C] [min]-30 °C
Compensated temp. range [°F] [max]104 °F
Compensated temp. range [°F] [min]-22 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceNo - out of scope
Flush diaphragmNo
High Clipping Level98
In scope of WEEE and contain batteriesNo
International Article Number5702422141204
Intrinsically safeNo
Low Clipping level4
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalRatio metric
Overload pressure max. [bar]33 bar
Packing formatMulti pack
Pressure connection notesFlare 1/4 in
Pressure connection size7/16-20
Pressure connection standardASME B1.1
Pressure connection typeUNF
Pressure Male/FemaleMale
Pressure range [bar] [max]9 bar
Pressure range [bar] [min]-1 bar
Pressure range [psi] [max]130.53 psi
Pressure range [psi] [min]-14.5 psi
Pressure referenceSealed gauge
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
Ratiometric of Vsupply [%] [max]90 %
Ratiometric of Vsupply [%] [min]10 %
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
Specification keyAKS 32R-D636-A1BC08-0
Supply voltage [V] DC [max]6 V
Supply voltage [V] DC [max]5.5 V
Supply voltage [V] DC [min]5 V
Supply voltage [V] DC [min]4.5 V
TypeAKS 32R
+ outputPin 3
+ supplyPin 1
- commonPin 2
Accuracy, max. [±FS%]0.8 %
Accuracy, typical [±FS%]0.3 %
Adj. zero point and spanNo
Ambient temperature range [°C] [max]85 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]185 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalATEX
GOST POCC
cUR
Approval commentsATEX Ex ec IIA T4 Gc
Approval standard6967179
E227388
E31024
Compensated temp. range [°C] [max]40 °C
Compensated temp. range [°C] [min]-30 °C
Compensated temp. range [°F] [max]104 °F
Compensated temp. range [°F] [min]-22 °F
Electrical conn. Male/FemaleMale and Female
Electrical connectionAngular connector
Electrical connection sizePg 9
Electrical connection standardEN 175301-803-A
Enclosure rating IPIP65
EU RoHS complianceNo - out of scope
Flush diaphragmNo
High Clipping Level98
In scope of WEEE and contain batteriesNo
International Article Number5702422141204
Intrinsically safeNo
Low Clipping level4
Medium temperature range [°C] [max]85 °C
Medium temperature range [°C] [min]-40 °C
Medium temperature range [°F] [max]185 °F
Medium temperature range [°F] [min]-40 °F
Non-linearity BFSL [±FS%]0.2 %
Output signalRatio metric
Overload pressure max. [bar]33 bar
Packing formatMulti pack
Pressure connection notesFlare 1/4 in
Pressure connection size7/16-20
Pressure connection standardASME B1.1
Pressure connection typeUNF
Pressure Male/FemaleMale
Pressure range [bar] [max]9 bar
Pressure range [bar] [min]-1 bar
Pressure range [psi] [max]130.53 psi
Pressure range [psi] [min]-14.5 psi
Pressure referenceSealed gauge
Product groupSensors
Product Name DescriptionPressure transmitter
Pulse-snubberNo
Quantity per packing format14 pc
Ratiometric of Vsupply [%] [max]90 %
Ratiometric of Vsupply [%] [min]10 %
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Response time max. [ms]4 ms
SCIP dossier no.16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d
Specification keyAKS 32R-D636-A1BC08-0
Supply voltage [V] DC [max]6 V
Supply voltage [V] DC [max]5.5 V
Supply voltage [V] DC [min]5 V
Supply voltage [V] DC [min]4.5 V
TypeAKS 32R

DATASHEET - PDF

Title
Size
Type
060G0139 060G0139 ES_060G6343.pdf
952 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
