View larger

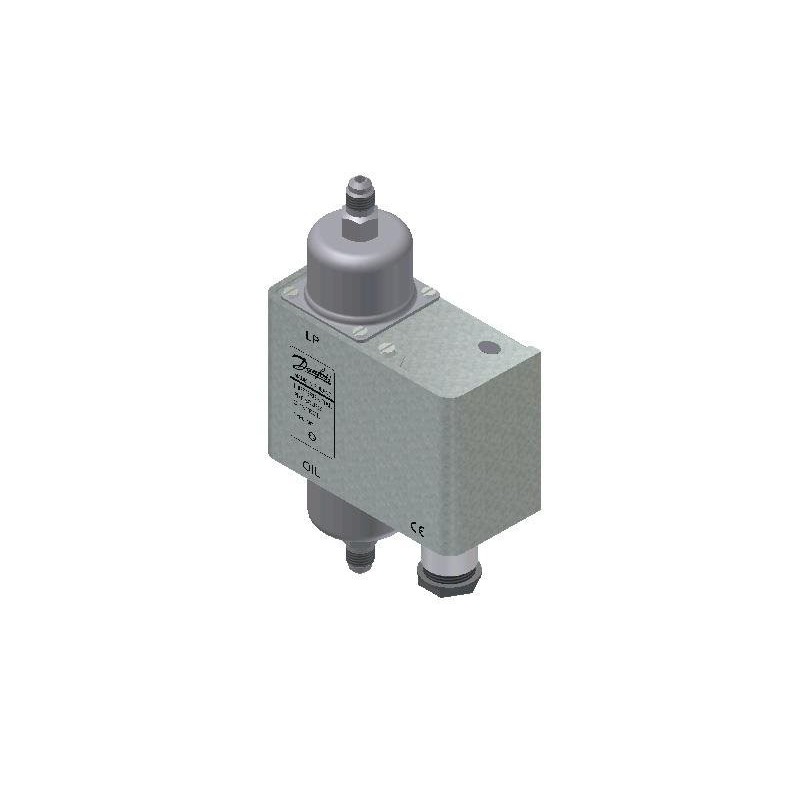

060B029991 DANFOSS REFRIGERATION MP55 Diff. Pressure Switch M/21
060B029991
DANFOSS REFRIGERATION
MP55 Diff. Pressure Switch M/21
Differential pressure switch, MP55
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Diff.press.setting range [bar]: 0.3 - 4.5, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17
Product details
| Gross weight | 0.718 Kilogram |
| Net weight | 0.618 Kilogram |
| Volume | 1.935 Liter |
| EAN | 5702424499617 |
| Type | MP55 |
| Product group | Switches and thermostats |
| Product Name Description | Differential pressure switch |
| Gross weight | 0.718 Kilogram |
| Net weight | 0.618 Kilogram |
| Volume | 1.935 Liter |
| EAN | 5702424499617 |
| Type | MP55 |
| Product group | Switches and thermostats |
| Product Name Description | Differential pressure switch |
| Adjustment | Cut out for falling pressure |
| Amb. Temp. Note | Bellows max 100 °C/212 °F |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM DNV∙GL EAC LLC CDC EURO-TYSK LVD RINA RoHS China TYSK |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact differential [bar] | 0.2 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.1 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Diff.press.setting range [bar] [max] | 4.5 bar |
| Diff.press.setting range [bar] [min] | 0.3 bar |
| Diff.press.setting range [MPa] [max] | 0.45 MPa |
| Diff.press.setting range [MPa] [min] | 0.03 MPa |
| Diff.press.setting range [psi] [max] | 65 psi |
| Diff.press.setting range [psi] [min] | 4.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 250V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Out of scope |
| Factory setting [bar] | 0.65 bar |
| Factory setting [psig] | 9 psig |
| Identical product | 060B101666 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Operat. range LP side [bar] Pe [max] | 12 bar |
| Operat. range LP side [bar] Pe [min] | -1 bar |
| Operat. range LP side [psig]Pe [max] | 175 psig |
| Operat. range LP side [psig]Pe [min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 in |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Quantity per packing format | 21 pc |
| Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Relay release time [s] | 0 s |
| Reset function | Auto |
| Serviceable | No |
| UL approved refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Adjustment | Cut out for falling pressure |
| Amb. Temp. Note | Bellows max 100 °C/212 °F |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM DNV∙GL EAC LLC CDC EURO-TYSK LVD RINA RoHS China TYSK |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact differential [bar] | 0.2 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.1 A, 250 V DC13=12 W, 125 V |
| Contains batteries | No |
| Diff.press.setting range [bar] [max] | 4.5 bar |
| Diff.press.setting range [bar] [min] | 0.3 bar |
| Diff.press.setting range [MPa] [max] | 0.45 MPa |
| Diff.press.setting range [MPa] [min] | 0.03 MPa |
| Diff.press.setting range [psi] [max] | 65 psi |
| Diff.press.setting range [psi] [min] | 4.3 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| Electrical spec. standard | EN 60947-5 |
| EN 60947 electrical properties | Insulation: 250V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 2A |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.0 mm2 Flex, no ferrules: 0.2-1.5 mm2 Solid/stranded: 0.2-1.5 mm2 |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Out of scope |
| Factory setting [bar] | 0.65 bar |
| Factory setting [psig] | 9 psig |
| Identical product | 060B101666 |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Operat. range LP side [bar] Pe [max] | 12 bar |
| Operat. range LP side [bar] Pe [min] | -1 bar |
| Operat. range LP side [psig]Pe [max] | 175 psig |
| Operat. range LP side [psig]Pe [min] | -15 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 in |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Product accessories | Generic accessories |
| Product description | Diff. Pressure Switch |
| Quantity per packing format | 21 pc |
| Refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
| Relay release time [s] | 0 s |
| Reset function | Auto |
| Serviceable | No |
| UL approved refrigerants | R11 R113 R12 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507C R513A R515B |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 060B029991 060B029991 ES_060-004866.pdf | 286 Kbytes |
|
