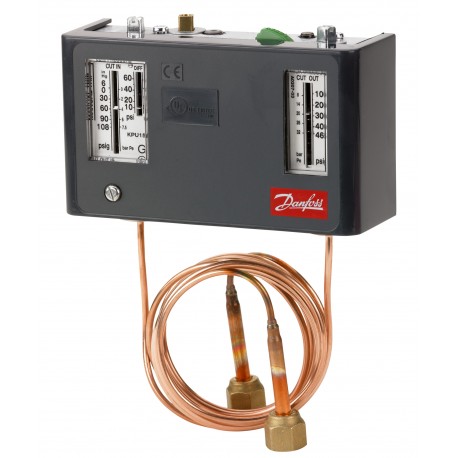

DANFOSS REFRIGERATION 060-5250 060-5250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

060-5250 DANFOSS REFRIGERATION Pressure switch

Name: 060-5250 DANFOSS REFRIGERATION Pressure switch
Brand: DANFOSS REFRIGERATION
SKU: DAO0605250
Availability: Discontinued

Reference: 060-5250

Manufacturer: DANFOSS REFRIGERATION

Description:

Pressure switch

KPU15B Pressure Switch M/10

Pressure switch, KPU15B

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Regulation left side [bar]Pe: -0.2 - 7.5, Regulation right side [bar]Pe: 8 - 32, Differential left side [bar]: 0.7 - 4, Differential right side [bar]: 4, Contact function: SPST(NO+NC), Reset function, left side: Auto, Reset function, right side: Manual Max

Product details

Gross weight	1.01 Kilogram
Net weight	0.965 Kilogram
Volume	1.5 Liter
EAN	5702428063906

Type	KPU15B
Product group	Switches and thermostats
Product Name Description	Pressure switch

Gross weight	1.01 Kilogram
Net weight	0.965 Kilogram
Volume	1.5 Liter
EAN	5702428063906
Type	KPU15B
Product group	Switches and thermostats
Product Name Description	Pressure switch

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Application note	Not applicable for liquid line
Approval	CE LVD RoHS c UL us UL873, CS C22.2
Cap. tube length fraction [in]	36 in
Capillary tube length [mm]	900 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Contact function	SPST(NO+NC)
Contact rating	144 A, 240 V AC 24 A, 240 V ac DC=12 W pilot duty FLA=24 A, 120 V ac LRA = 144 A, 120 V ac
Contains batteries	No
Differential left side [bar] [max]	4 bar
Differential left side [bar] [min]	0.7 bar
Differential left side [psi] [max]	60 psi
Differential left side [psi] [min]	10 psi
Differential right side [bar]	4 bar
Differential right side [psi]	60 psi
Electrical conn. comments	for ½ in male pipe thread
Electrical connection	Hole
Electrical connection size	7/8 in
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Lubricants compatibility	Oilfree applications
MWP left side [bar] Pe	17 bar

MWP left side [psig] Pe	250 psig
MWP right side [bar] Pe	35 bar
MWP right side [psig] Pe	510 psig
Oil free refrigerants	R134a R513A R515B
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	DIN 8912
Pressure connection type	Flare nut
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Dual Pressure Control
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R1233zd(E)
Regulation left side [bar]Pe [max]	7.5 bar
Regulation left side [bar]Pe [min]	-0.2 bar
Regulation left side range Pe	6 inHg - 108 psig
Regulation right side [bar]Pe [max]	32 bar
Regulation right side [bar]Pe [min]	8 bar
Regulation right side [psig]Pe [max]	465 psig
Regulation right side [psig]Pe [min]	100 psig
Reset function, left side	Auto
Reset function, right side	Manual Max
SCIP dossier no.	2e0fe8e8-9c82-4015-8eaf-002748cf7fb1
SCIP dossier product name	KPU Pressure Switch
Serviceable	No
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B
UL evaluated	Yes

Amb. Temp. Note	80 °C/176 °F for max 120 min
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Application note	Not applicable for liquid line
Approval	CE LVD RoHS c UL us UL873, CS C22.2
Cap. tube length fraction [in]	36 in
Capillary tube length [mm]	900 mm
CE evaluated	Yes
China RoHS compliance	Out of scope
Contact function	SPST(NO+NC)
Contact rating	144 A, 240 V AC 24 A, 240 V ac DC=12 W pilot duty FLA=24 A, 120 V ac LRA = 144 A, 120 V ac
Contains batteries	No
Differential left side [bar] [max]	4 bar
Differential left side [bar] [min]	0.7 bar
Differential left side [psi] [max]	60 psi
Differential left side [psi] [min]	10 psi
Differential right side [bar]	4 bar
Differential right side [psi]	60 psi
Electrical conn. comments	for ½ in male pipe thread
Electrical connection	Hole
Electrical connection size	7/8 in
EN 60947 electrical properties	Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A
EN 60947 wiring properties	Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP	IP30
Enclosure rating Nema (~)	1
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Lubricants compatibility	Oilfree applications
MWP left side [bar] Pe	17 bar
MWP left side [psig] Pe	250 psig
MWP right side [bar] Pe	35 bar
MWP right side [psig] Pe	510 psig
Oil free refrigerants	R134a R513A R515B
Packing format	Multi pack
Pressure connection size	1/4
Pressure connection standard	DIN 8912
Pressure connection type	Flare nut
Pressure Male/Female	Female
Pressure sensing element	Bellows
Product accessories	Switches accessories
Product description	Dual Pressure Control
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0)
Refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B R1233zd(E)
Regulation left side [bar]Pe [max]	7.5 bar
Regulation left side [bar]Pe [min]	-0.2 bar
Regulation left side range Pe	6 inHg - 108 psig
Regulation right side [bar]Pe [max]	32 bar
Regulation right side [bar]Pe [min]	8 bar
Regulation right side [psig]Pe [max]	465 psig
Regulation right side [psig]Pe [min]	100 psig
Reset function, left side	Auto
Reset function, right side	Manual Max
SCIP dossier no.	2e0fe8e8-9c82-4015-8eaf-002748cf7fb1
SCIP dossier product name	KPU Pressure Switch
Serviceable	No
UL approval file name	E31024
UL approved refrigerants	R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B
UL evaluated	Yes

DATASHEET - PDF

Title

Size

Type

060-5250 060-5250 EN_060-5231.pdf

2 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
