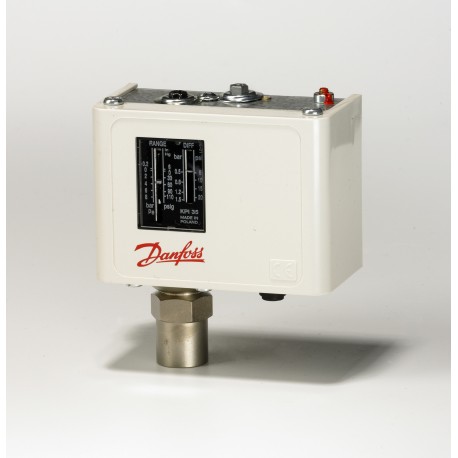

060-500066 DANFOSS REFRIGERATION Pressure switch
060-500066
DANFOSS REFRIGERATION
Pressure switch
KP35 Pressure Switch M/36
Pressure switch, KP35
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: -0.2 - 7.5, Differential [bar]: 0.7 - 4, Reset function: Auto, Pressure connection type: NPT, Pressure connection size: 1/4-18, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 17
Product details
| Gross weight | 0.354 Kilogram |
| Net weight | 0.319 Kilogram |
| Volume | 0.57 Liter |
| EAN | 5702423148578 |
| Type | KP35 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 0.354 Kilogram |
| Net weight | 0.319 Kilogram |
| Volume | 0.57 Liter |
| EAN | 5702423148578 |
| Type | KP35 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contains batteries | No |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [max] | 7.5 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 MH27572 |
| UL mark | Yes |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contains batteries | No |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4-18 |
| Pressure connection standard | ANSI/ASME B1.20.1 |
| Pressure connection type | NPT |
| Pressure Male/Female | Female |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [max] | 7.5 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 MH27572 |
| UL mark | Yes |
