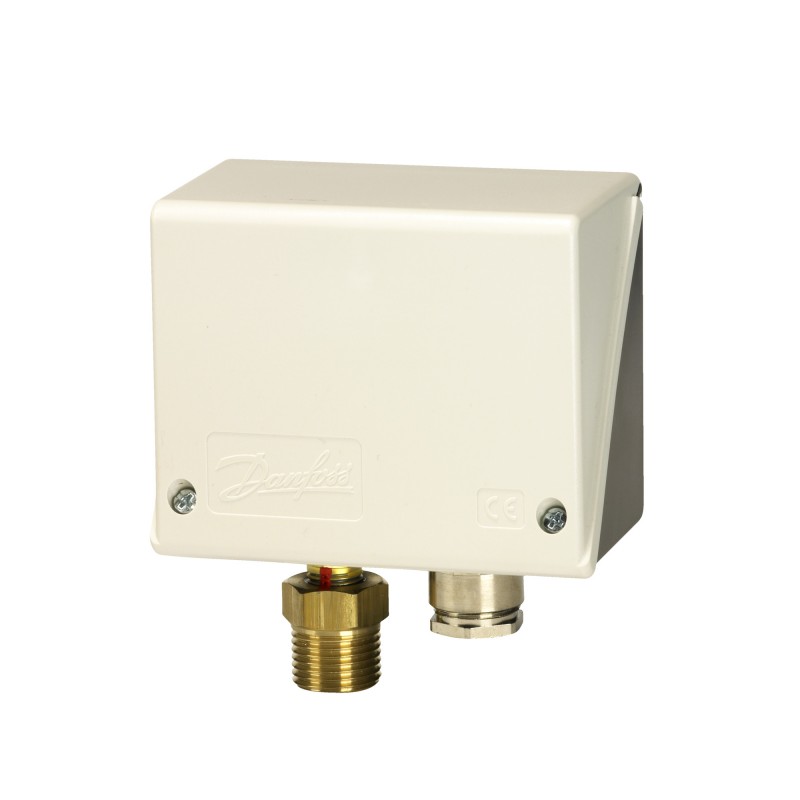

060-319566 DANFOSS REFRIGERATION Pressure switch, KPI36
060-319566
DANFOSS REFRIGERATION
Pressure switch, KPI36
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: 2 - 12, Differential [bar]: 0.5 - 1.6, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP55, Max. Working Pressure [bar]: 18
Product details
| Gross weight | 0.556 Kilogram |
| Net weight | 0.511 Kilogram |
| Volume | 1.219 Liter |
| EAN | 5702428365406 |
| Type | KPI36 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 0.556 Kilogram |
| Net weight | 0.511 Kilogram |
| Volume | 1.219 Liter |
| EAN | 5702428365406 |
| Type | KPI36 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD RINA RoHS China c UL us UL873, CS C22.2 |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR=36 A, 240 V LR=48 A, 120 V |
| Contains batteries | No |
| Differential [bar] [max] | 1.6 bar |
| Differential [bar] [min] | 0.5 bar |
| Differential [psi] [max] | 23 psi |
| Differential [psi] [min] | 7 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP55 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range [bar] Pe [max] | 12 bar |
| Regulation range [bar] Pe [min] | 2 bar |
| Regulation range [psig] Pe [max] | 174 psig |
| Regulation range [psig] Pe [min] | 29 psig |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 |
| UL mark | Yes |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD RINA RoHS China c UL us UL873, CS C22.2 |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR=36 A, 240 V LR=48 A, 120 V |
| Contains batteries | No |
| Differential [bar] [max] | 1.6 bar |
| Differential [bar] [min] | 0.5 bar |
| Differential [psi] [max] | 23 psi |
| Differential [psi] [min] | 7 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. comments | Metal cable gland |
| Electrical conn. Male/Female | Female |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | DIN 40430 |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP55 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 30 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range [bar] Pe [max] | 12 bar |
| Regulation range [bar] Pe [min] | 2 bar |
| Regulation range [psig] Pe [max] | 174 psig |
| Regulation range [psig] Pe [min] | 29 psig |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
