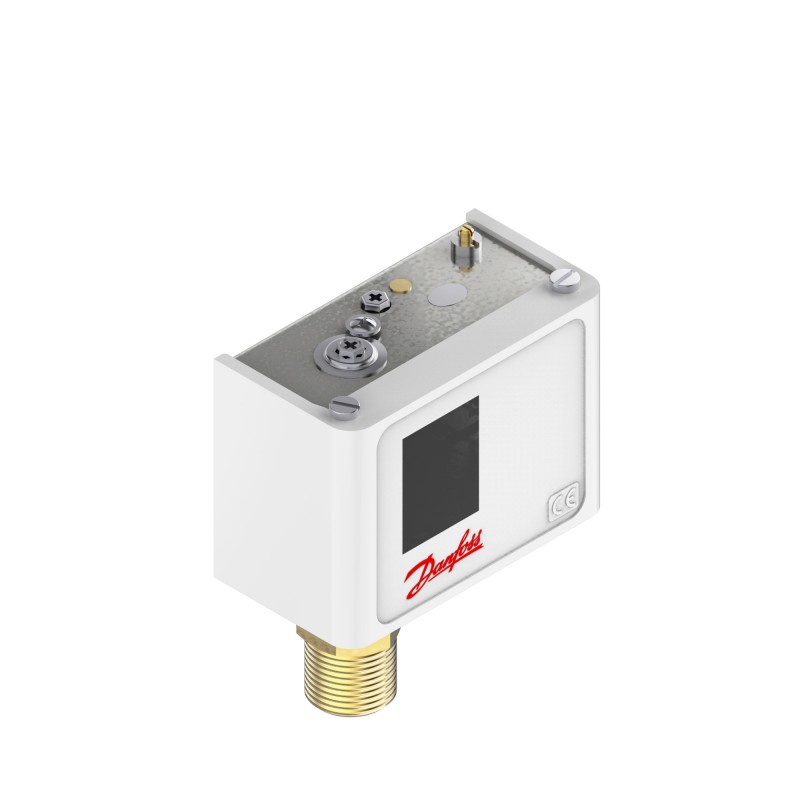

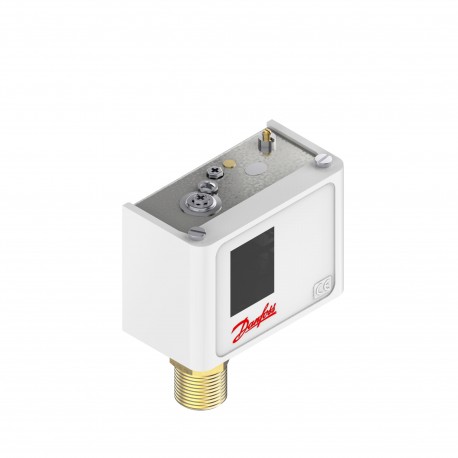

060-132466 DANFOSS REFRIGERATION Pressure switch
060-132466
DANFOSS REFRIGERATION
Pressure switch
KPI35 Pressure Switch M/36
Pressure switch, KPI35
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Regulation range [bar] Pe: -0.2 - 8, Differential [bar]: 0.4 - 1.5, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 18
Product details
| Gross weight | 0.402 Kilogram |
| Net weight | 0.368 Kilogram |
| Volume | 0.57 Liter |
| EAN | 5702428832014 |
| Type | KPI35 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Gross weight | 0.402 Kilogram |
| Net weight | 0.368 Kilogram |
| Volume | 0.57 Liter |
| EAN | 5702428832014 |
| Type | KPI35 |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD RINA RoHS China c UL us UL873, CS C22.2 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR=36 A, 240 V LR=48 A, 120 V |
| Contains batteries | No |
| Differential [bar] [max] | 1.5 bar |
| Differential [bar] [min] | 0.4 bar |
| Differential [psi] [max] | 22 psi |
| Differential [psi] [min] | 6 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Out of scope |
| Identical product | 060-132566 |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range | 6 inHg - 116 psig |
| Regulation range [bar] Pe [max] | 8 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 |
| UL mark | Yes |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD RINA RoHS China c UL us UL873, CS C22.2 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Contact function | SPDT |
| Contact rating | AC15=4 A, 440 V AC1=10 A, 440 V AC3=6 A, 440 V DC13=12 W, 220 V LR=36 A, 240 V LR=48 A, 120 V |
| Contains batteries | No |
| Differential [bar] [max] | 1.5 bar |
| Differential [bar] [min] | 0.4 bar |
| Differential [psi] [max] | 22 psi |
| Differential [psi] [min] | 6 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Out of scope |
| Identical product | 060-132566 |
| In scope of WEEE | Yes |
| Max. test pressure [bar] Pe | 18 bar |
| Max. test pressure [psig] | 261 psig |
| Max. Working Pressure [bar] | 18 bar |
| Max. Working Pressure [psig] | 261 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Quantity per packing format | 36 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Regulation range | 6 inHg - 116 psig |
| Regulation range [bar] Pe [max] | 8 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| SCIP dossier no. | 1b8fc5ed-65e2-48fc-8738-8cce613a9786 |
| SCIP dossier product name | KP KPI |
| Serviceable | No |
| UL approval file name | E31024 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 060-132466 060-132466 EN_060-001366.pdf | 4 Mbytes |
|
