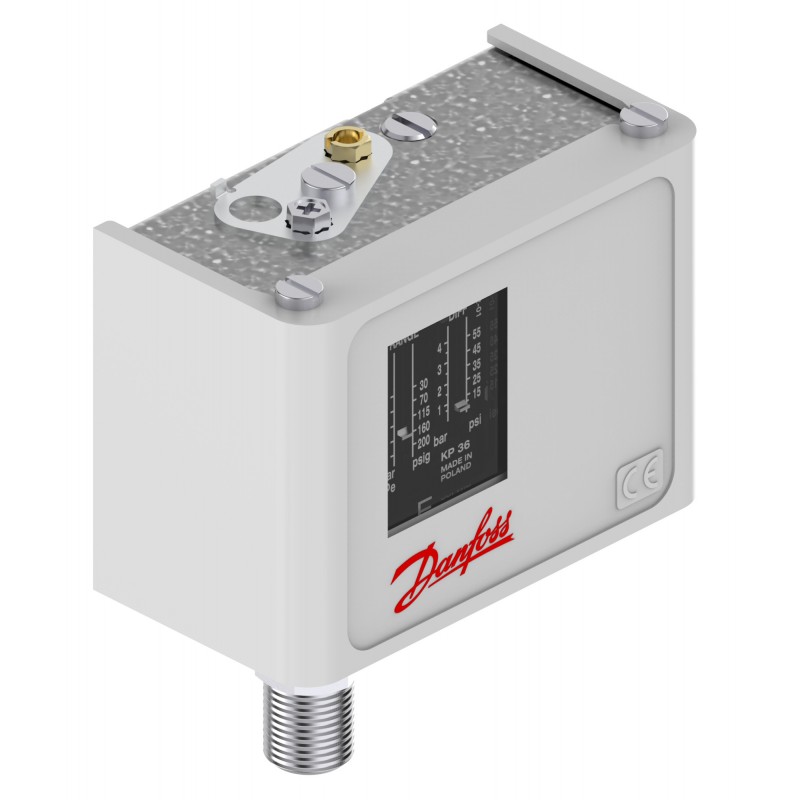

060-113966 DANFOSS REFRIGERATION Pressure switch, KP36
060-113966
DANFOSS REFRIGERATION
48
Pressure switch, KP36
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Regulation range [bar] Pe: 2.00 - 14.00, Differential [bar]: 0.70 - 4.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 17.0
Product details
| Gross weight | 0.311 Kg |
| Net weight | 0.276 Kg |
| Volume | 0.468 Liter |
| EAN | 5702423146680 |
| Gross weight | 0.311 Kg |
| Net weight | 0.276 Kg |
| Volume | 0.468 Liter |
| EAN | 5702423146680 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 UKCA |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 400 V AC1=10 A, 400 V AC3=6 A, 400 V DC13=12 W, 220 V for gold 1…30 mA, 5...30 V |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Insulation: 400V Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| Identical product | 060-113766 |
| In scope of WEEE and contain batteries | No |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 48 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 14 bar |
| Regulation range [bar] Pe [min] | 2 bar |
| Regulation range [psig] Pe [max] | 203 psig |
| Regulation range [psig] Pe [min] | 29 psig |
| Reset function | Auto |
| SCIP dossier no. | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Serviceable | No |
| Type | KP36 |
| UL approval file name | E31024 MH27572 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | CCC CE CMIM EAC LLC CDC EURO-TYSK LVD PZH RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 UKCA |
| Contact function | SPDT gold |
| Contact rating | AC15=4 A, 400 V AC1=10 A, 400 V AC3=6 A, 400 V DC13=12 W, 220 V for gold 1…30 mA, 5...30 V |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3 Rated impulse voltage: 4 kV Insulation: 400V Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| EU RoHS compliance | Yes |
| Identical product | 060-113766 |
| In scope of WEEE and contain batteries | No |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 48 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Regulation range [bar] Pe [max] | 14 bar |
| Regulation range [bar] Pe [min] | 2 bar |
| Regulation range [psig] Pe [max] | 203 psig |
| Regulation range [psig] Pe [min] | 29 psig |
| Reset function | Auto |
| SCIP dossier no. | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| Serviceable | No |
| Type | KP36 |
| UL approval file name | E31024 MH27572 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 060-113966 060-113966 EN_060-001366.pdf | 4 Mbytes |
 |
