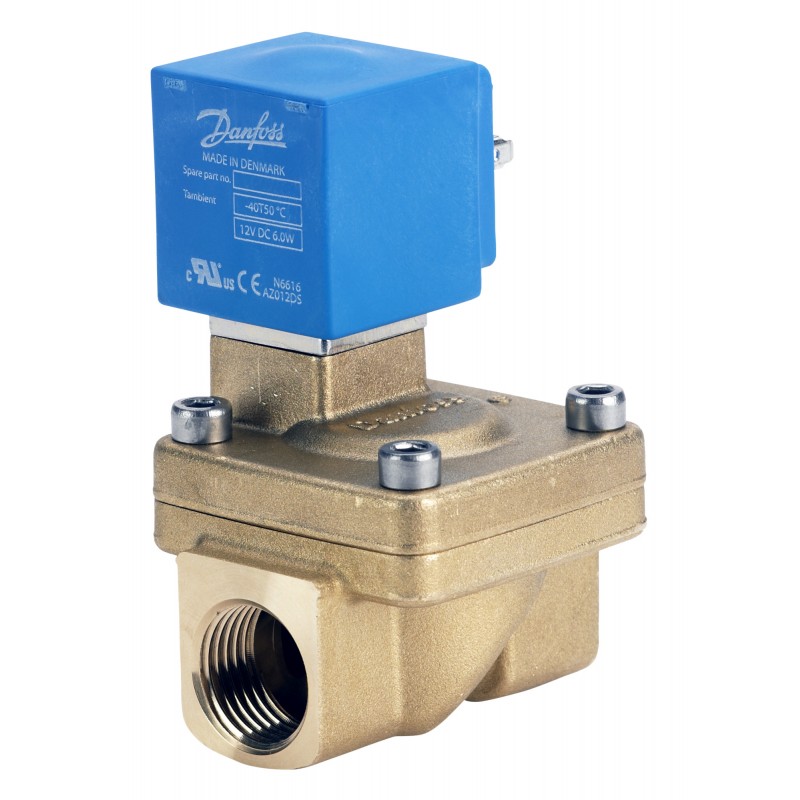

DANFOSS REFRIGERATION 042U413802 042U413802 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042U413802 DANFOSS REFRIGERATION Solenoid valve, EV220W, Function: NO, G, 2, 32 m³/h, EPDM

Reference: 042U413802

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, EV220W, Function: NO, G, 2, 32 m³/h, EPDM

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Media recommendations: Water & Brine, Approval: CE; WRAS, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2

Product details

Gross weight5.254 Kilogram
Net weight4.835 Kilogram
Volume7.334 Liter
EAN5702428537728
TypeEV220W
Product groupSolenoid valves
Product Name DescriptionSolenoid valve
Gross weight5.254 Kilogram
Net weight4.835 Kilogram
Volume7.334 Liter
EAN5702428537728
TypeEV220W
Product groupSolenoid valves
Product Name DescriptionSolenoid valve

ActuatorW
Actuator size9 mm clip-on W
Actuator size [in]0.35 in
Actuator system [mm]9 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApplicationOpen
ApprovalCE
WRAS
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeAZ
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]37 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]10000 ms
Est. time to open, water [ms]5000 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
FunctionNO
In scope of WEEEYes
Kv value [m³/h]32 m³/h
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Max. Working Pressure noteWRAS - medium temp. max 50° C
Media recommendationsWater & Brine
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]-22 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]50 mm
Orifice size fraction [in]2 in
Packing formatSingle pack
Power consumption [W] DC6.5 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.251bcd5a-3b75-4c2a-9b66-d0bbba166a77
SCIP dossier product nameEV220W- solenoid valve
Seal MaterialEPDM
ServiceableNo
Specification keyEV220W 50B G 2E NO000 AZ024DS
Supply voltage [V] DC24 V
Type designationEV220W 50
ActuatorW
Actuator size9 mm clip-on W
Actuator size [in]0.35 in
Actuator system [mm]9 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApplicationOpen
ApprovalCE
WRAS
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeAZ
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]37 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]10000 ms
Est. time to open, water [ms]5000 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
FunctionNO
In scope of WEEEYes
Kv value [m³/h]32 m³/h
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Max. Working Pressure noteWRAS - medium temp. max 50° C
Media recommendationsWater & Brine
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]-22 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]50 mm
Orifice size fraction [in]2 in
Packing formatSingle pack
Power consumption [W] DC6.5 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.251bcd5a-3b75-4c2a-9b66-d0bbba166a77
SCIP dossier product nameEV220W- solenoid valve
Seal MaterialEPDM
ServiceableNo
Specification keyEV220W 50B G 2E NO000 AZ024DS
Supply voltage [V] DC24 V
Type designationEV220W 50
