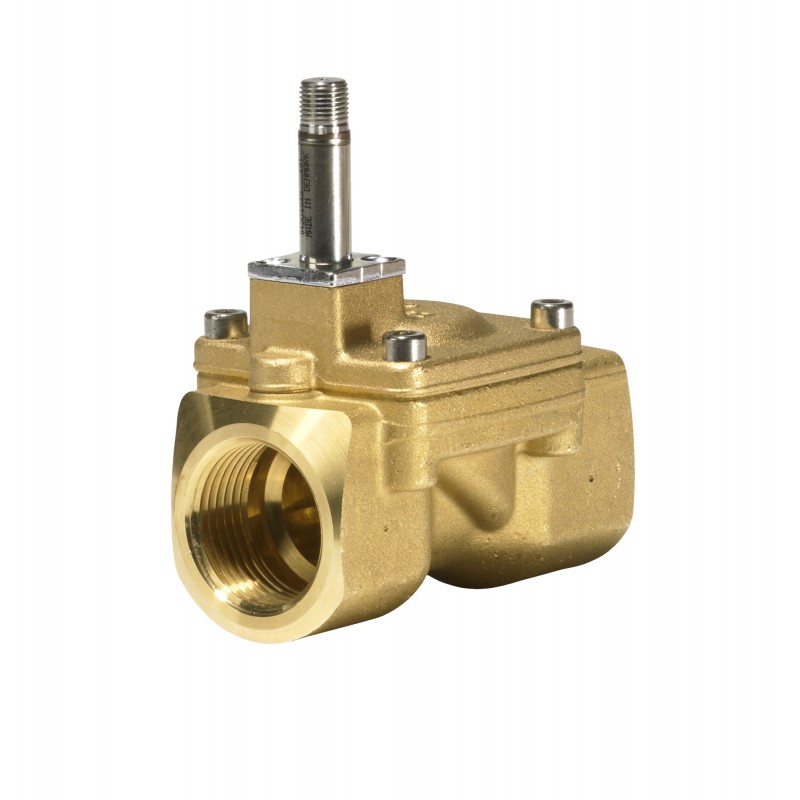

DANFOSS REFRIGERATION 042U4057 042U4057 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042U4057 DANFOSS REFRIGERATION Solenoid valve, EV220A, Function: NC, G, 1, 7 m³/h, EPDM

Reference: 042U4057

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, EV220A, Function: NC, G, 1, 7 m³/h, EPDM

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Media recommendations: Water & Brine, Approval: PZH; WRAS, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2

Product details

Gross weight1.028 Kilogram
Net weight1.008 Kilogram
Volume1.266 Liter
EAN5714279538496
TypeEV220A
Product groupSolenoid valves
Product Name DescriptionSolenoid valve
Gross weight1.028 Kilogram
Net weight1.008 Kilogram
Volume1.266 Liter
EAN5714279538496
TypeEV220A
Product groupSolenoid valves
Product Name DescriptionSolenoid valve

ActuatorA
Actuator size9 mm
Actuator size [in]0.35 in
Actuator system [mm]9 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApprovalPZH
WRAS
Body materialBrass
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]8.1 gal/min
Differential pressure [bar] [max]16 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]232 psi
Differential pressure [psi] [min]4.35 psi
Est. time to close, water [ms]500 ms
Est. time to open, water [ms]200 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
FunctionNC
Kv value [m³/h]7 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]24 bar
Max. test pressure [psig]348 psig
Max. Working Pressure [bar]16 bar
Max. Working Pressure [psig]232 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]-22 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]22 mm
Orifice size fraction [in]7/8 in
Packing formatMulti pack
Parts Program nameEV220A
Product accessoriesSolenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.481e69a1-f151-484d-b74f-362eac5dc9de
SCIP dossier product nameValve EV220A
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220A 22B G 1E NC104
Type designationEV220A 22
ActuatorA
Actuator size9 mm
Actuator size [in]0.35 in
Actuator system [mm]9 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApprovalPZH
WRAS
Body materialBrass
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]8.1 gal/min
Differential pressure [bar] [max]16 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]232 psi
Differential pressure [psi] [min]4.35 psi
Est. time to close, water [ms]500 ms
Est. time to open, water [ms]200 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
FunctionNC
Kv value [m³/h]7 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]24 bar
Max. test pressure [psig]348 psig
Max. Working Pressure [bar]16 bar
Max. Working Pressure [psig]232 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]-22 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]22 mm
Orifice size fraction [in]7/8 in
Packing formatMulti pack
Parts Program nameEV220A
Product accessoriesSolenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.481e69a1-f151-484d-b74f-362eac5dc9de
SCIP dossier product nameValve EV220A
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220A 22B G 1E NC104
Type designationEV220A 22
