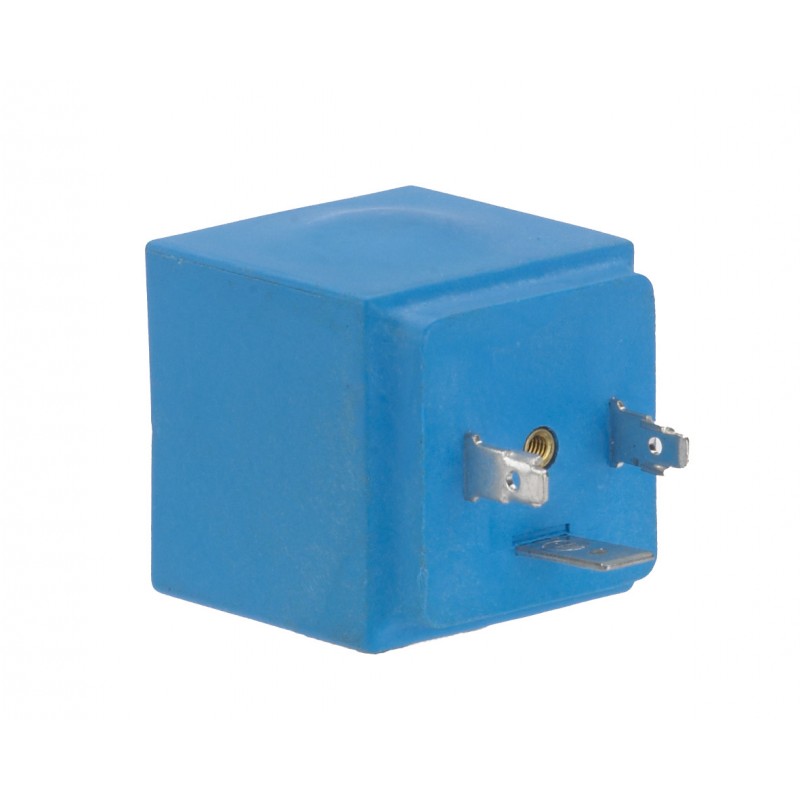

DANFOSS REFRIGERATION 042N8601 042N8601 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042N8601 DANFOSS REFRIGERATION Solenoid coil, AS230CS

Name: 042N8601 DANFOSS REFRIGERATION Solenoid coil, AS230CS
Brand: DANFOSS REFRIGERATION
SKU: DAO042N8601
Price: 141.20 USD
Availability: OutOfStock

Reference: 042N8601

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid coil, AS230CS

Solenoid coil, AS230CS, DIN Spade, Supply voltage [V] AC: 230, Industrial pack

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 4.776,09 €

Unit Price: 119,4022 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Electrical connection: DIN Spade, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00

Product details

Gross weight	0.12 Kilogram
Net weight	0.112 Kilogram
Volume	0.14 Liter
EAN	5702428024105

Type	AS230CS
Product group	Solenoid valves
Product Name Description	Solenoid coil

Gross weight	0.12 Kilogram
Net weight	0.112 Kilogram
Volume	0.14 Liter
EAN	5702428024105
Type	AS230CS
Product group	Solenoid valves
Product Name Description	Solenoid coil

Actuator size	9 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil connection	DIN Spade
Coil fastening	Clip-on
Coil type	AS
Colour	Blue
Compliance	EN 60730-1
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
EU RoHS compliance	Yes
EU RoHS exemption clause	No

Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Industrial pack
Parts Program name	EV220T EV220S
Power consumption 50Hz [VA]	16 VA
Power consumption 60Hz [VA]	14 VA
Power consumption [W] 50Hz	8 W
Power consumption [W] 60Hz	7 W
Product accessories	Solenoid coil accessories
Quantity per packing format	40 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	042N7601
Supply voltage 50Hz Max [V]	230 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage 60Hz Min [V]	208 V
Supply voltage [V] AC	230 V
Type designation	AS230CS

Actuator size	9 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil connection	DIN Spade
Coil fastening	Clip-on
Coil type	AS
Colour	Blue
Compliance	EN 60730-1
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Industrial pack
Parts Program name	EV220T EV220S
Power consumption 50Hz [VA]	16 VA
Power consumption 60Hz [VA]	14 VA
Power consumption [W] 50Hz	8 W
Power consumption [W] 60Hz	7 W
Product accessories	Solenoid coil accessories
Quantity per packing format	40 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
SCIP dossier product name	Solenoid coils
Serviceable	No
Spare part number	042N7601
Supply voltage 50Hz Max [V]	230 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage 60Hz Min [V]	208 V
Supply voltage [V] AC	230 V
Type designation	AS230CS

DATASHEET - PDF

Title

Size

Type

042N8601 042N8601 ES_018F7301.pdf

6 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
