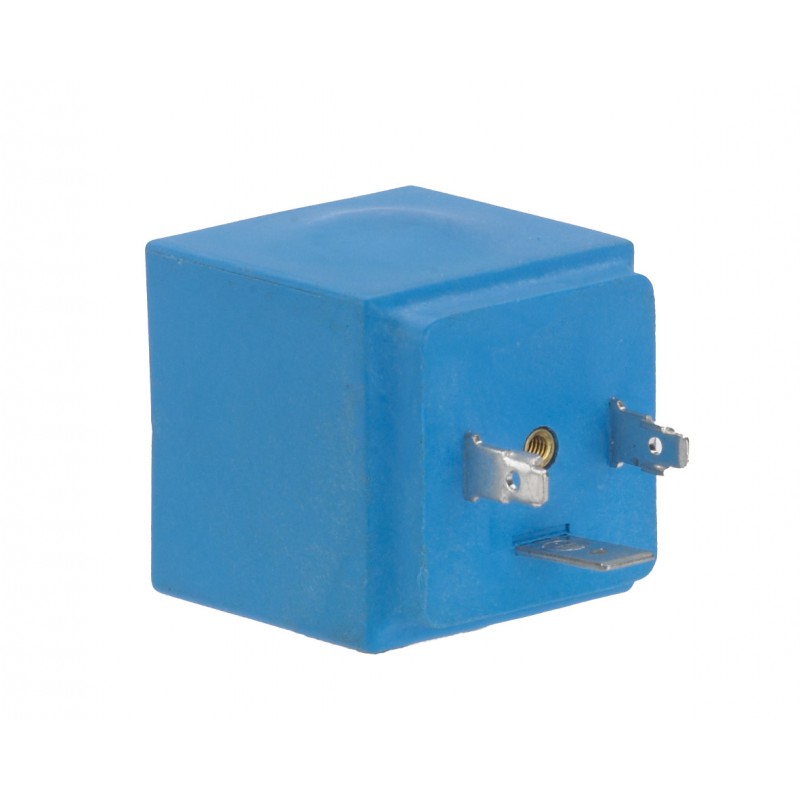

042N7687 DANFOSS REFRIGERATION Solenoid coil, AS024DS
Reference: 042N7687
Manufacturer: DANFOSS REFRIGERATION
Description:
Solenoid coil, AS024DS
Coil AS024DS 24V DC
Solenoid coil, AS024DS, DIN Spade, Supply voltage [V] DC: 24, Multi pack
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Electrical connection: DIN Spade, Supply voltage [V] DC: 24, Actuator size: 9 mm, Enclosure rating IP: IP00
Product details
| Gross weight | 0.128 Kilogram |
| Net weight | 0.121 Kilogram |
| Volume | 0.087 Liter |
| EAN | 5702428027427 |
| Type | AS024DS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.128 Kilogram |
| Net weight | 0.121 Kilogram |
| Volume | 0.087 Liter |
| EAN | 5702428027427 |
| Type | AS024DS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil fastening | Clip-on |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 042N8687 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220S |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | CSV 2-6/EVRP 6-10/EVU |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type designation | AS024DS |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil fastening | Clip-on |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Identical product | 042N8687 |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220S |
| Power consumption [W] DC | 14 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | CSV 2-6/EVRP 6-10/EVU |
| Serviceable | No |
| Supply voltage [V] DC | 24 V |
| Type designation | AS024DS |
