DANFOSS REFRIGERATION042N7651 DANFOSS REFRIGERATION Solenoid coil, AU230CS
DANFOSS REFRIGERATION 042N7651 042N7651 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

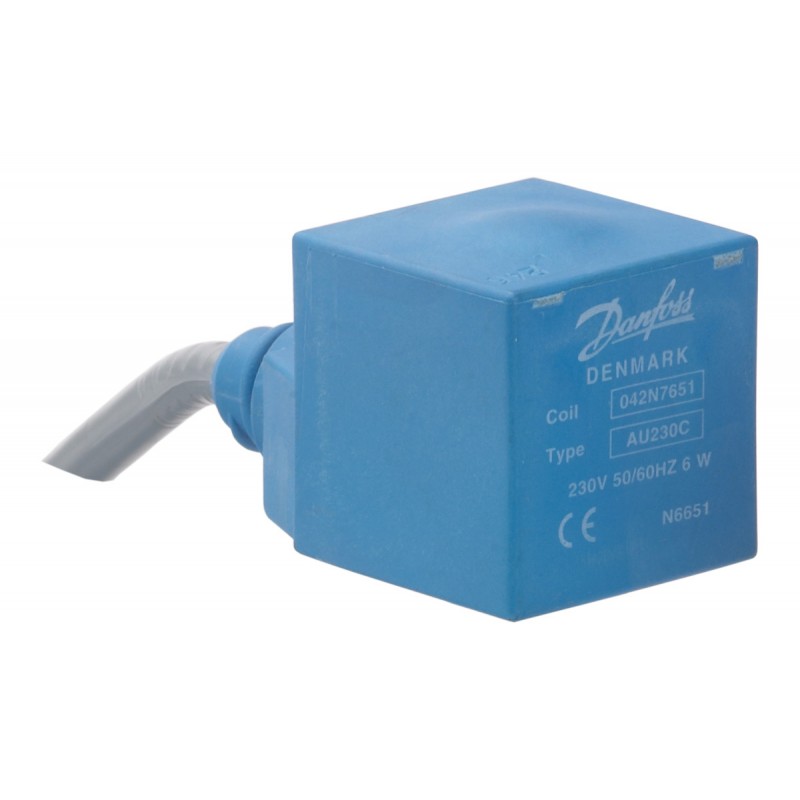

042N7651 DANFOSS REFRIGERATION Solenoid coil, AU230CS

Reference: 042N7651

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid coil, AU230CS
Coil AU230CS 230V 50/60Hz 1m Cable
Solenoid coil, AU230CS, Cable, 1 m, Supply voltage [V] AC: 230, Multi pack

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 36,67 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Electrical connection: Cable, Supply voltage [V] AC: 230, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP67

Product details

Gross weight0.224 Kilogram
Net weight0.161 Kilogram
Volume0.842 Liter
EAN5702428023955
TypeAU230CS
Product groupSolenoid valves
Product Name DescriptionSolenoid coil
Gross weight0.224 Kilogram
Net weight0.161 Kilogram
Volume0.842 Liter
EAN5702428023955
TypeAU230CS
Product groupSolenoid valves
Product Name DescriptionSolenoid coil

Actuator size9 mm
Ambient temperature range [°C] [max]50 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]122 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalLLC CDC TYSK
Cable length [in]40 in
Cable length [m]1 m
China RoHS complianceYes
China RoHS exemption clauseNo
Coil connectionCable
Coil fasteningClip-on
ColourBlue
ComplianceEN 60730-1
Conductor area [mm2]3 x 0.75 mm2
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionCable
Electrical connector3 core cable
Enclosure rating IPIP67
EU RoHS complianceYes
EU RoHS exemption clauseNo
Frequency [Hz]50/60 Hz
Identical product042N8651
In scope of WEEEYes
Packing formatMulti pack
Parts Program nameEV220S
Power consumption 50Hz [VA]14 VA
Power consumption 60Hz [VA]10 VA
Power consumption [W] 50Hz7 W
Power consumption [W] 60Hz5 W
Product accessoriesSolenoid coil accessories
Quantity per packing format24 pc
REACH Candidate List substancesNo
Rel. Humidity [% RH] [max]100 %
Rel. Humidity [% RH] [min]0 %
ServiceableNo
Spare part number042N7651
Supply voltage 50Hz Max [V]230 V
Supply voltage 60Hz Max [V]230 V
Supply voltage [V] AC230 V
Type designationAU230CS
Actuator size9 mm
Ambient temperature range [°C] [max]50 °C
Ambient temperature range [°C] [min]-40 °C
Ambient temperature range [°F] [max]122 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalLLC CDC TYSK
Cable length [in]40 in
Cable length [m]1 m
China RoHS complianceYes
China RoHS exemption clauseNo
Coil connectionCable
Coil fasteningClip-on
ColourBlue
ComplianceEN 60730-1
Conductor area [mm2]3 x 0.75 mm2
Contains batteriesNo
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionCable
Electrical connector3 core cable
Enclosure rating IPIP67
EU RoHS complianceYes
EU RoHS exemption clauseNo
Frequency [Hz]50/60 Hz
Identical product042N8651
In scope of WEEEYes
Packing formatMulti pack
Parts Program nameEV220S
Power consumption 50Hz [VA]14 VA
Power consumption 60Hz [VA]10 VA
Power consumption [W] 50Hz7 W
Power consumption [W] 60Hz5 W
Product accessoriesSolenoid coil accessories
Quantity per packing format24 pc
REACH Candidate List substancesNo
Rel. Humidity [% RH] [max]100 %
Rel. Humidity [% RH] [min]0 %
ServiceableNo
Spare part number042N7651
Supply voltage 50Hz Max [V]230 V
Supply voltage 60Hz Max [V]230 V
Supply voltage [V] AC230 V
Type designationAU230CS

DATASHEET - PDF

Title
Size
Type
042N7651 042N7651 FR_042N4230.pdf
1 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
