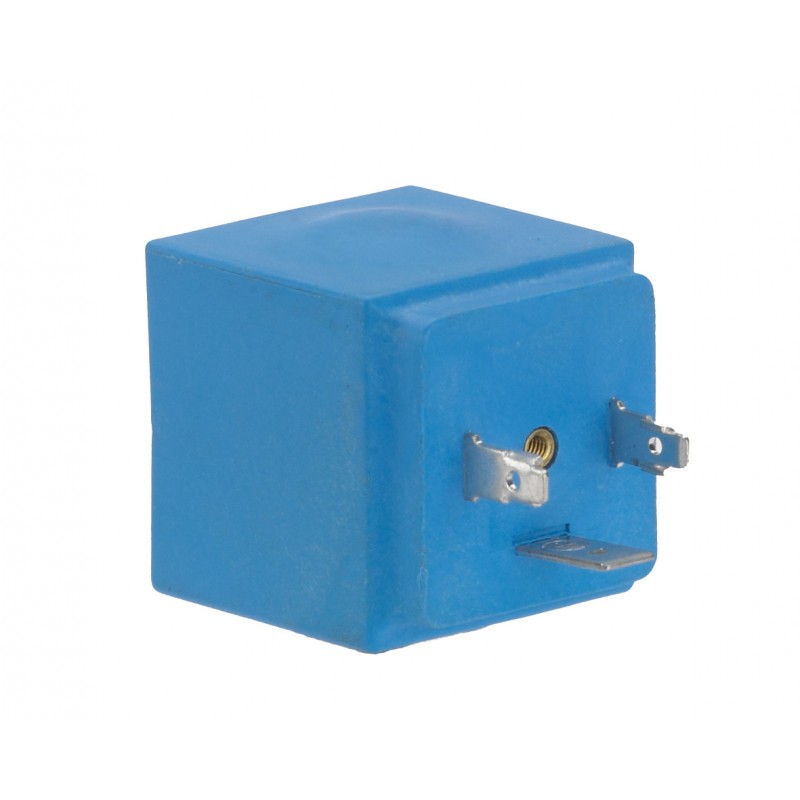

042N7608 DANFOSS REFRIGERATION Solenoid coil, AS024CS
042N7608
DANFOSS REFRIGERATION
Solenoid coil, AS024CS
Coil AS024CS 24V 50/60Hz
Solenoid coil, AS024CS, DIN Spade, Multi pack
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electrical connection: DIN Spade, Actuator size: 9 mm, Enclosure rating IP: IP00
Product details
| Gross weight | 0.118 Kilogram |
| Net weight | 0.114 Kilogram |
| Volume | 0.083 Liter |
| EAN | 5702428027397 |
| Type | AS024CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Gross weight | 0.118 Kilogram |
| Net weight | 0.114 Kilogram |
| Volume | 0.083 Liter |
| EAN | 5702428027397 |
| Type | AS024CS |
| Product group | Solenoid valves |
| Product Name Description | Solenoid coil |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220S EV220T |
| Power consumption 50Hz [VA] | 18 VA |
| Power consumption 60Hz [VA] | 14 VA |
| Power consumption [W] 50Hz | 9.5 W |
| Power consumption [W] 60Hz | 7 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | EVR 10-22 (NO) |
| Serviceable | No |
| Spare part number | 042N7608 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Type designation | AS024CS |
| Actuator size | 9 mm |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil connection | DIN Spade |
| Coil design standard | UL 429 |
| Coil fastening | Clip-on |
| Coil winding insulation class | Class H to IEC 85 |
| Colour | Blue |
| Compliance | EN 60730-1 |
| Contains batteries | No |
| Duty rating | Continuous |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | DIN Spade |
| Electrical connection size | 6.3 mm x 0.8 mm |
| Electrical connection standard | EN175301-803 |
| Electrical connector | 3 x spades |
| Enclosure rating IP | IP00 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| In scope of WEEE | Yes |
| Packing format | Multi pack |
| Parts Program name | EV220S EV220T |
| Power consumption 50Hz [VA] | 18 VA |
| Power consumption 60Hz [VA] | 14 VA |
| Power consumption [W] 50Hz | 9.5 W |
| Power consumption [W] 60Hz | 7 W |
| Product accessories | Solenoid coil accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | No |
| Rel. Humidity [% RH] [max] | 97 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Rel. Humidity conditions | Non-condensation |
| SCIP dossier product name | EVR 10-22 (NO) |
| Serviceable | No |
| Spare part number | 042N7608 |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage 60Hz Max [V] | 24 V |
| Type designation | AS024CS |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 042N7608 042N7608 DE_018Z6595.pdf | 6 Mbytes |
|
