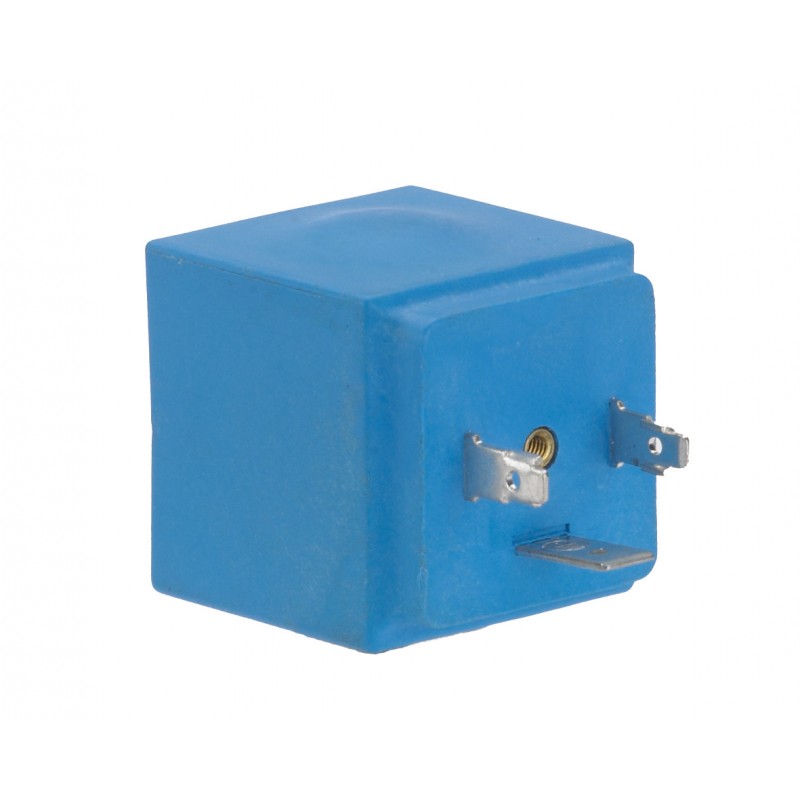

DANFOSS REFRIGERATION 042N7602 042N7602 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042N7602 DANFOSS REFRIGERATION Solenoid coil, AS240CS

Name: 042N7602 DANFOSS REFRIGERATION Solenoid coil, AS240CS
Brand: DANFOSS REFRIGERATION
SKU: DAO042N7602
Price: 43.36 USD
Availability: OutOfStock

Reference: 042N7602

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid coil, AS240CS

Coil AS240CS 240V 50/60Hz

Solenoid coil, AS240CS, DIN Spade, Supply voltage [V] AC: 240, Multi pack

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 36,67 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Electrical connection: DIN Spade, Supply voltage [V] AC: 240, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP00

Product details

Gross weight	0.124 Kilogram
Net weight	0.11 Kilogram
Volume	0.089 Liter
EAN	5702428027380

Type	AS240CS
Product group	Solenoid valves
Product Name Description	Solenoid coil

Gross weight	0.124 Kilogram
Net weight	0.11 Kilogram
Volume	0.089 Liter
EAN	5702428027380
Type	AS240CS
Product group	Solenoid valves
Product Name Description	Solenoid coil

Actuator size	9 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil connection	DIN Spade
Coil fastening	Clip-on
Colour	Blue
Compliance	EN 60730-1
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
EU RoHS compliance	Yes
EU RoHS exemption clause	No

Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Multi pack
Parts Program name	EV220S
Power consumption 50Hz [VA]	13 VA
Power consumption 60Hz [VA]	10 VA
Power consumption [W] 50Hz	6.5 W
Power consumption [W] 60Hz	5 W
Product accessories	Solenoid coil accessories
Quantity per packing format	24 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
SCIP dossier product name	EVR 10-22 (NO)
Serviceable	No
Spare part number	042N7602
Supply voltage 50Hz Max [V]	240 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage [V] AC	240 V
Type designation	AS240CS

Actuator size	9 mm
Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil connection	DIN Spade
Coil fastening	Clip-on
Colour	Blue
Compliance	EN 60730-1
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	DIN Spade
Electrical connection size	6.3 mm x 0.8 mm
Electrical connection standard	EN175301-803
Electrical connector	3 x spades
Enclosure rating IP	IP00
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Frequency [Hz]	50/60 Hz
In scope of WEEE	Yes
Packing format	Multi pack
Parts Program name	EV220S
Power consumption 50Hz [VA]	13 VA
Power consumption 60Hz [VA]	10 VA
Power consumption [W] 50Hz	6.5 W
Power consumption [W] 60Hz	5 W
Product accessories	Solenoid coil accessories
Quantity per packing format	24 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Rel. Humidity conditions	Non-condensation
SCIP dossier product name	EVR 10-22 (NO)
Serviceable	No
Spare part number	042N7602
Supply voltage 50Hz Max [V]	240 V
Supply voltage 60Hz Max [V]	240 V
Supply voltage [V] AC	240 V
Type designation	AS240CS

DATASHEET - PDF

Title

Size

Type

042N7602 042N7602 IT_042N4230.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
