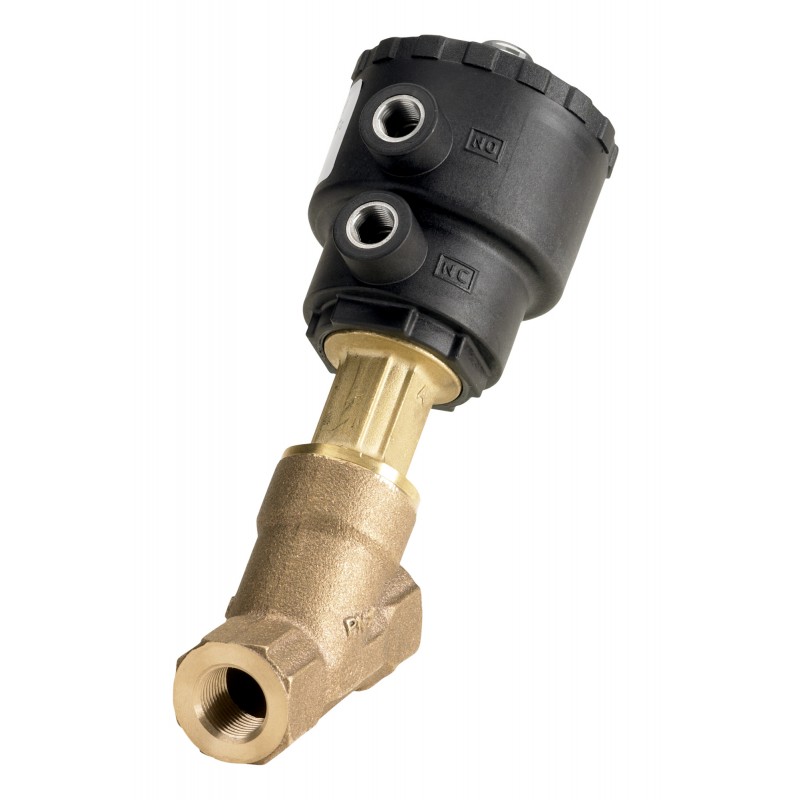

DANFOSS REFRIGERATION 042N4424 042N4424 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

042N4424 DANFOSS REFRIGERATION Angle-seat ext operated valve, AV210G, G, 3/4, PTFE, Function: NC

Reference: 042N4424

Manufacturer: DANFOSS REFRIGERATION

Description:

Angle-seat ext operated valve, AV210G, G, 3/4, PTFE, Function: NC

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Body material: Bronze

Product details

Gross weight1.108 Kilogram
Net weight1.008 Kilogram
Volume2.285 Liter
EAN5702428903189
TypeAV210G
Product groupExternally operated valves
Product Name DescriptionAngle-seat ext operated valve
Gross weight1.108 Kilogram
Net weight1.008 Kilogram
Volume2.285 Liter
EAN5702428903189
TypeAV210G
Product groupExternally operated valves
Product Name DescriptionAngle-seat ext operated valve

Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]140 °F
Ambient temperature range [°F] [min]-22 °F
Body materialBronze
China RoHS complianceOut of scope
ClosingWith flow
Connection Internal/ExternalInternal
Connection size [in]3/4
Connection typeG
Contains batteriesNo
Control head diameter [mm]50 mm
Control pressure range [bar] [max]10 bar
Control pressure range [bar] [min]1.8 bar
Control pressure range [psig] [max]145 psig
Control pressure range [psig] [min]26.1 psig
Cv value [gal/min]11.5 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0 bar
EEE category5 small equipment (any external dimension < 50 cm)
EU RoHS complianceOut of scope
FunctionNC
In scope of WEEEYes
Kv value [m³/h]10 m³/h
Max. test pressure [bar]24 bar
Max. test pressure [psig]348 psig
Max. Working Pressure [bar]16 bar
Max. Working Pressure [psig]232 psig
Medium temperature range [°C] [max]180 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]356 °F
Medium temperature range [°F] [min]-22 °F
OperationPiston (angle)
Orifice size [mm]20 mm
Packing formatSingle pack
Product accessoriesExt. operat. valve accessories
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.0a1684e1-9b13-4d79-ae59-ca9cab611349
SCIP dossier product nameAV210
Seal MaterialPTFE
ServiceableExt. operat. valve spare parts
Ambient temperature range [°C] [max]60 °C
Ambient temperature range [°C] [min]-30 °C
Ambient temperature range [°F] [max]140 °F
Ambient temperature range [°F] [min]-22 °F
Body materialBronze
China RoHS complianceOut of scope
ClosingWith flow
Connection Internal/ExternalInternal
Connection size [in]3/4
Connection typeG
Contains batteriesNo
Control head diameter [mm]50 mm
Control pressure range [bar] [max]10 bar
Control pressure range [bar] [min]1.8 bar
Control pressure range [psig] [max]145 psig
Control pressure range [psig] [min]26.1 psig
Cv value [gal/min]11.5 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0 bar
EEE category5 small equipment (any external dimension < 50 cm)
EU RoHS complianceOut of scope
FunctionNC
In scope of WEEEYes
Kv value [m³/h]10 m³/h
Max. test pressure [bar]24 bar
Max. test pressure [psig]348 psig
Max. Working Pressure [bar]16 bar
Max. Working Pressure [psig]232 psig
Medium temperature range [°C] [max]180 °C
Medium temperature range [°C] [min]-30 °C
Medium temperature range [°F] [max]356 °F
Medium temperature range [°F] [min]-22 °F
OperationPiston (angle)
Orifice size [mm]20 mm
Packing formatSingle pack
Product accessoriesExt. operat. valve accessories
Quantity per packing format1 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.0a1684e1-9b13-4d79-ae59-ca9cab611349
SCIP dossier product nameAV210
Seal MaterialPTFE
ServiceableExt. operat. valve spare parts
