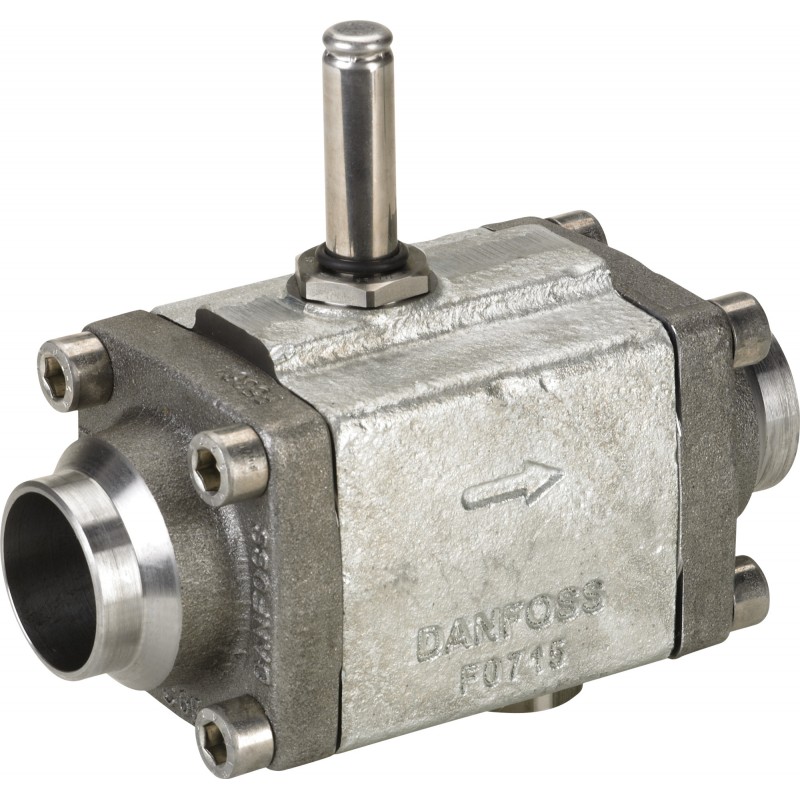

042H1143 DANFOSS REFRIGERATION Solenoid valve, EVRA 40
042H1143
DANFOSS REFRIGERATION
Solenoid valve, EVRA 40
EVRA 40 Valve w. manual DN50 ANSI
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Manual operation option: Yes, Cv value [gal/min]: 28.9, Kv value [m³/h]: 25
Product details
| Gross weight | 4.542 Kilogram |
| Net weight | 4.352 Kilogram |
| Volume | 7.56 Liter |
| EAN | 5702428053853 |
| Type | EVRA 40 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 4.542 Kilogram |
| Net weight | 4.352 Kilogram |
| Volume | 7.56 Liter |
| EAN | 5702428053853 |
| Type | EVRA 40 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Cast iron |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Connection material | Steel |
| Connection standard, inlet | ANSI 36.10 |
| Connection standard, outlet | ANSI 36.10 |
| Contains batteries | No |
| Cv value [gal/min] | 28.9 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Butt weld |
| Inlet size [in] | 2 in |
| Kv value [m³/h] | 25 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25.4 mm |
| Outlet connection type | Butt weld |
| Outlet size [in] | 2 in |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 |
| SCIP dossier no. | d38f86ba-12bb-4e70-8d9f-ec3fd58b7365 |
| SCIP dossier product name | EVRA EVRAT |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Body material | Cast iron |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Connection material | Steel |
| Connection standard, inlet | ANSI 36.10 |
| Connection standard, outlet | ANSI 36.10 |
| Contains batteries | No |
| Cv value [gal/min] | 28.9 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection type | Butt weld |
| Inlet size [in] | 2 in |
| Kv value [m³/h] | 25 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 14W AC | 300 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25.4 mm |
| Outlet connection type | Butt weld |
| Outlet size [in] | 2 in |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 |
| SCIP dossier no. | d38f86ba-12bb-4e70-8d9f-ec3fd58b7365 |
| SCIP dossier product name | EVRA EVRAT |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 042H1143 042H1143 EN_032F6221.pdf | 3 Mbytes |
|
