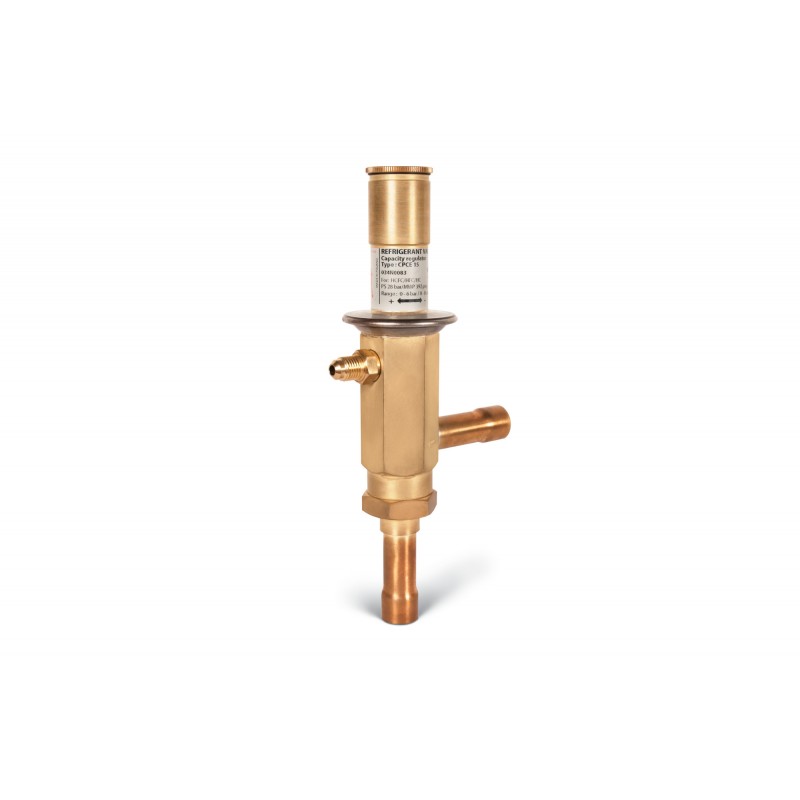

DANFOSS REFRIGERATION 034N0088 034N0088 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

034N0088 DANFOSS REFRIGERATION Hot gas bypass regulator

Name: 034N0088 DANFOSS REFRIGERATION Hot gas bypass regulator
Brand: DANFOSS REFRIGERATION
SKU: DAO034N0088
Price: 442.85 USD
Availability: OutOfStock

Reference: 034N0088

Manufacturer: DANFOSS REFRIGERATION

Description:

Hot gas bypass regulator

Hot gas bypass regulator, CPCE 12

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 3.956,03 €

Unit Price: 395,603 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet size [mm]: 12, Inlet connection type: Solder, ODF, Outlet size [mm]: 12, Outlet connection type: Solder, ODF, Regulation range [bar]: 0 - 6, Max. Working Pressure [bar]: 28

Product details

Gross weight	0.898 Kilogram
Net weight	0.76 Kilogram
Volume	1.518 Liter
EAN	5702428055901

Type	CPCE 12
Product group	Press. and temp. regul. valves
Product Name Description	Hot gas bypass regulator

Gross weight	0.898 Kilogram
Net weight	0.76 Kilogram
Volume	1.518 Liter
EAN	5702428055901
Type	CPCE 12
Product group	Press. and temp. regul. valves
Product Name Description	Hot gas bypass regulator

Approval	C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
China RoHS compliance	Out of scope
Contains batteries	No
Differential pressure [bar]	18 bar
Differential pressure [psi]	260 psi
EU RoHS compliance	Out of scope
Factory setting [bar]	0.4 bar
Factory setting [psig]	5.8 psig
Flow direction indicator	Embossed 1-way arrow
Further information	Injection: LG liq. gas mixer
Identical product	034N0082
Inlet connection type	Solder, ODF
Inlet size [in]	1/2 in
Inlet size [mm]	12 mm
Max. test pressure [bar]	31 bar
Max. test pressure [psig]	450 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Medium temperature range [°C] [max]	140 °C
Medium temperature range [°C] [min]	-50 °C
Medium temperature range [°F] [max]	284 °F
Medium temperature range [°F] [min]	-58 °F
Outlet connection type	Solder, ODF
Outlet size [in]	1/2 in
Outlet size [mm]	12 mm
Packing format	Industrial pack

Pilot line conn. size [in]	7/16 in - 20 UNF
Pilot line connection type	Flare
Product accessories	KV valves accessories
Quantity per packing format	10 pc
Rated cap. conditions [IMP]	Delta ts=7 °F tcond=86 °F tevap=-14 °F
Rated cap. conditions [SI]	Delta ts=4K tcond=30 °C tevap=-10 °C
Rated cap. R404A/R507A [kW]	16.4 kW
Rated cap. R404A/R507A [TR]	6.3 TR
Rated capacity R134a [kW]	7.9 kW
Rated capacity R134a [TR]	4.3 TR
Rated capacity R22 [kW]	17.4 kW
Rated capacity R22 [TR]	6.2 TR
Rated capacity R407C [kW]	19 kW
Rated capacity R407C [TR]	6.7 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a
Regulation range [bar] [max]	6 bar
Regulation range [bar] [min]	0 bar
Regulation range [psi] [max]	85 psi
Regulation range [psi] [min]	0 psi
Regulation range [psig] Pe [max]	85 psig
Regulation range [psig] Pe [min]	0 psig
SCIP dossier no.	07f60708-3237-4fd0-9275-7e8aeeecb838
SCIP dossier product name	CPCE
Serviceable	KV valves spare parts
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R448A R449A R449B R450A R452A R507A R513A R515B R516A
UL mark	Yes

Approval	C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China
Approval file name	REFRIGERANT VALVE 53R0
China RoHS compliance	Out of scope
Contains batteries	No
Differential pressure [bar]	18 bar
Differential pressure [psi]	260 psi
EU RoHS compliance	Out of scope
Factory setting [bar]	0.4 bar
Factory setting [psig]	5.8 psig
Flow direction indicator	Embossed 1-way arrow
Further information	Injection: LG liq. gas mixer
Identical product	034N0082
Inlet connection type	Solder, ODF
Inlet size [in]	1/2 in
Inlet size [mm]	12 mm
Max. test pressure [bar]	31 bar
Max. test pressure [psig]	450 psig
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	406 psig
Medium temperature range [°C] [max]	140 °C
Medium temperature range [°C] [min]	-50 °C
Medium temperature range [°F] [max]	284 °F
Medium temperature range [°F] [min]	-58 °F
Outlet connection type	Solder, ODF
Outlet size [in]	1/2 in
Outlet size [mm]	12 mm
Packing format	Industrial pack
Pilot line conn. size [in]	7/16 in - 20 UNF
Pilot line connection type	Flare
Product accessories	KV valves accessories
Quantity per packing format	10 pc
Rated cap. conditions [IMP]	Delta ts=7 °F tcond=86 °F tevap=-14 °F
Rated cap. conditions [SI]	Delta ts=4K tcond=30 °C tevap=-10 °C
Rated cap. R404A/R507A [kW]	16.4 kW
Rated cap. R404A/R507A [TR]	6.3 TR
Rated capacity R134a [kW]	7.9 kW
Rated capacity R134a [TR]	4.3 TR
Rated capacity R22 [kW]	17.4 kW
Rated capacity R22 [TR]	6.2 TR
Rated capacity R407C [kW]	19 kW
Rated capacity R407C [TR]	6.7 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a
Regulation range [bar] [max]	6 bar
Regulation range [bar] [min]	0 bar
Regulation range [psi] [max]	85 psi
Regulation range [psi] [min]	0 psi
Regulation range [psig] Pe [max]	85 psig
Regulation range [psig] Pe [min]	0 psig
SCIP dossier no.	07f60708-3237-4fd0-9275-7e8aeeecb838
SCIP dossier product name	CPCE
Serviceable	KV valves spare parts
UL approved refrigerants	R134a R22 R404A R407A R407C R407F R407H R448A R449A R449B R450A R452A R507A R513A R515B R516A
UL mark	Yes

DATASHEET - PDF

Title

Size

Type

034N0088 034N0088 EN_034N0088.pdf

577 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
