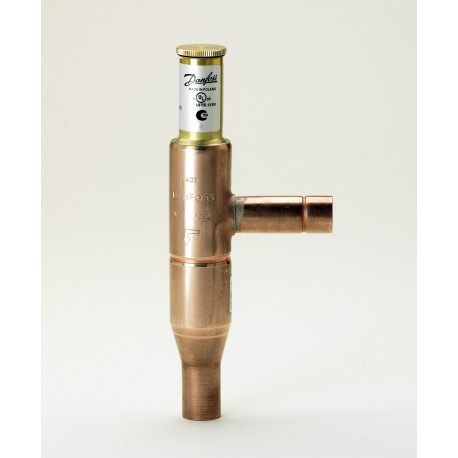

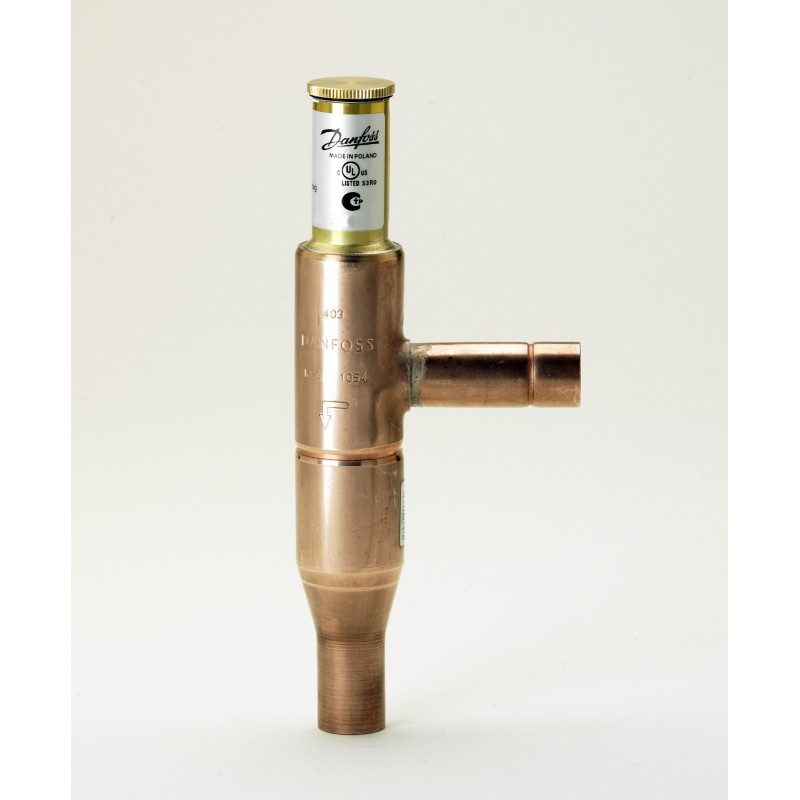

034L0146 DANFOSS REFRIGERATION Hot gas bypass regulator
034L0146
DANFOSS REFRIGERATION
Hot gas bypass regulator
KVC 12 Hot Gas Bypass Reg M/12
Hot gas bypass regulator, KVC 12
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet size [mm]: 12, Inlet connection type: Solder, ODF, Outlet size [mm]: 12, Outlet connection type: Solder, ODF, Regulation range [bar]: 0.2 - 6, Kv value [m³/h]: 0.68, Max. Working Pressure [bar]: 28
Product details
| Gross weight | 0.37 Kilogram |
| Net weight | 0.325 Kilogram |
| Volume | 1.18 Liter |
| EAN | 5702428411455 |
| Type | KVC 12 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Gross weight | 0.37 Kilogram |
| Net weight | 0.325 Kilogram |
| Volume | 1.18 Liter |
| EAN | 5702428411455 |
| Type | KVC 12 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Cv value [gal/min] | 0.79 gal/min |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [bar] | 2 bar |
| Factory setting [psig] | 29 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1046 |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 0.68 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Other RoHS documentation | EAEU RoHS |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| P band max. [bar] | 2 bar |
| P band max. [psi] | 29 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 12 pc |
| Rated cap. R404A/R507A [kW] | 6.9 kW |
| Rated cap. R404A/R507A [TR] | 2.02 TR |
| Rated capacity R134a [kW] | 4.8 kW |
| Rated capacity R134a [TR] | 1.36 TR |
| Rated capacity R22 [kW] | 7.6 kW |
| Rated capacity R22 [TR] | 2.14 TR |
| Rated capacity R407C [kW] | 8.4 kW |
| Rated capacity R407C [TR] | 2.31 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a |
| Regulation range [bar] [max] | 6 bar |
| Regulation range [bar] [min] | 0.2 bar |
| Regulation range [psig] Pe [max] | 87 psig |
| Regulation range [psig] Pe [min] | 3 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| SCIP dossier product name | KV |
| Serviceable | KV valves spare parts |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B |
| UL mark | Yes |
| Approval | C UL US LISTED EAC LLC CDC TYSK RoHS RoHS China |
| Approval file name | REFRIGERANT VALVE 53R0 |
| China RoHS compliance | Yes |
| Contains batteries | No |
| Cv value [gal/min] | 0.79 gal/min |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Factory setting [bar] | 2 bar |
| Factory setting [psig] | 29 psig |
| Flow direction indicator | Engraved 1-way arrow |
| Identical product | 034L1046 |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 0.68 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] | 31 bar |
| Max. test pressure [psig] | 450 psig |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Medium temperature range [°C] [max] | 130 °C |
| Medium temperature range [°C] [min] | -45 °C |
| Medium temperature range [°F] [max] | 266 °F |
| Medium temperature range [°F] [min] | -49 °F |
| Oil free refrigerants | R1234ze(E) R513A |
| Other RoHS documentation | EAEU RoHS |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| P band max. [bar] | 2 bar |
| P band max. [psi] | 29 psi |
| Packing format | Multi pack |
| Product accessories | No |
| Quantity per packing format | 12 pc |
| Rated cap. R404A/R507A [kW] | 6.9 kW |
| Rated cap. R404A/R507A [TR] | 2.02 TR |
| Rated capacity R134a [kW] | 4.8 kW |
| Rated capacity R134a [TR] | 1.36 TR |
| Rated capacity R22 [kW] | 7.6 kW |
| Rated capacity R22 [TR] | 2.14 TR |
| Rated capacity R407C [kW] | 8.4 kW |
| Rated capacity R407C [TR] | 2.31 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R1270 R134a R22 R290 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R454A R454C R455A R507A R513A R515B R516A R600 R600a |
| Regulation range [bar] [max] | 6 bar |
| Regulation range [bar] [min] | 0.2 bar |
| Regulation range [psig] Pe [max] | 87 psig |
| Regulation range [psig] Pe [min] | 3 psig |
| SCIP dossier no. | 842c526f-b213-4baa-869c-a91bb999a318 |
| SCIP dossier product name | KV |
| Serviceable | KV valves spare parts |
| UL approved refrigerants | R134a R22 R404A R407A R407C R407F R407H R422B R422D R448A R449A R449B R450A R452A R507A R513A R515B |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 034L0146 034L0146 EN_034L0146.pdf | 795 Kbytes |
|
