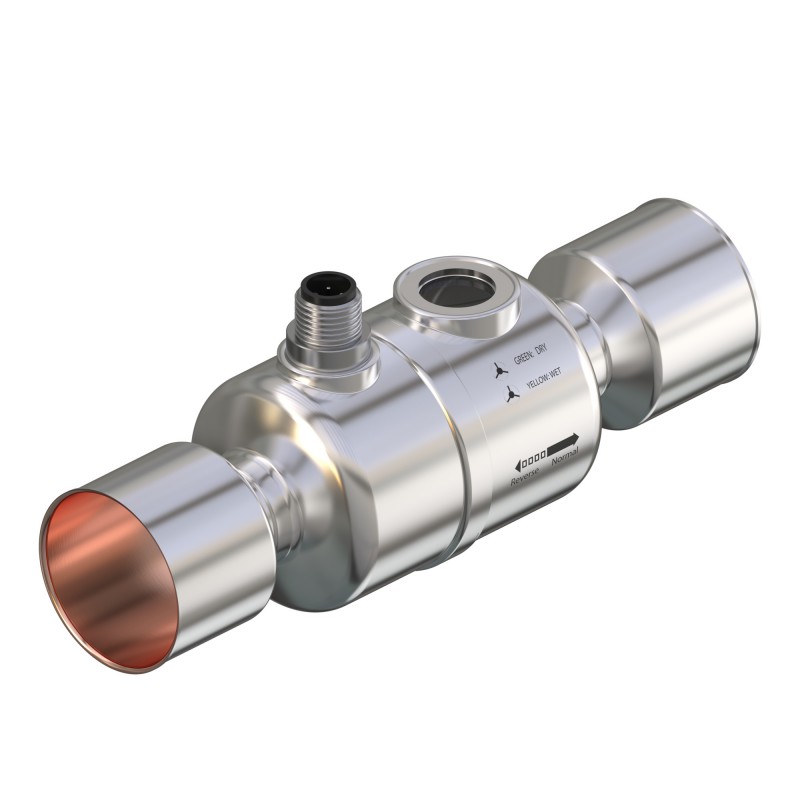

034G7802 DANFOSS REFRIGERATION Electric expansion valve
034G7802
DANFOSS REFRIGERATION
Electric expansion valve
ETS 100C Electric exp. valve 13/8x13/8
Electric expansion valve, ETS 100C
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AB; MO; PAG; POE; Oilfree applications; PAO; PVE, Refrigerant temperature [ºC] [max]: 95, Refrigerant temperature [ºF] [max]: 203, Inlet size [mm]: 35, Outlet size [mm]: 35, Inlet size [in]: 1 3/8 in, Outlet size [in]: 1 3/8 in
Product details
| Gross weight | 0.451 Kilogram |
| Net weight | 0.347 Kilogram |
| Volume | 1.651 Liter |
| EAN | 5702428888066 |
| Type | ETS 100C |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Gross weight | 0.451 Kilogram |
| Net weight | 0.347 Kilogram |
| Volume | 1.651 Liter |
| EAN | 5702428888066 |
| Type | ETS 100C |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX CCC CE CMIM EAC LLC CDC TYSK UKCA UR |
| Balanced port [Yes/No] | Yes |
| Body material | Stainless steel |
| Brand | Colibri |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Compatible Danfoss controllers | EKE 1A EKE 1B EKE 1C MCX 061V MCX 152V |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| EX Sales text | II 3G Ex ec IIB T4 Gc |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Fluid Group | 2 |
| Full travel time speed [s] [max] | 6 s |
| Full travel time speed [s] [min] | 3 s |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 1 3/8 in |
| Inlet size [mm] | 35 mm |
| Kv value [m³/h] | 5 m³/h |
| Lubricants compatibility | MO POE AB Oilfree applications PAG PAO PVE |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 7.2 W |
| Max tot PowerCons VoltDrive[W] | 7.2 W |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psi] | 580 psi |
| MaxOPD reverse [bar] | 40 bar |
| MaxOPD reverse [psi] | 580 psi |
| Motor type | Bi-polar |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A R515B R516A |
| Operating current max. [A] | 0.8 A |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 1 3/8 in |
| Outlet size [mm] | 35 mm |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Phase current (peak) [mA] | 800 mA |
| Phase current (RMS) [mA] | 600 mA |
| Phase inductance [µH] | 14000 μH |
| Product accessories | Stepper valve accessories |
| Quantity per packing format | 12 pc |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | tcond=90 °F tevap=40 °F tliq=82 °F |
| Rated cap. conditions [SI] | tcond=32 °C tevap=5 °C tliq=28 °C |
| Rated cap. R404A/R507A [kW] | 393 kW |
| Rated cap. R404A/R507A [TR] | 183 TR |
| Rated capacity R134a [kW] | 413 kW |
| Rated capacity R134a [TR] | 119 TR |
| Rated capacity R22 [kW] | 525.6 kW |
| Rated capacity R22 [TR] | 149.3 TR |
| Rated capacity R407C [kW] | 577 kW |
| Rated capacity R407C [TR] | 166 TR |
| Rated capacity R410A [kW] | 635 kW |
| Rated capacity R410A [TR] | 183 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerant temperature [ºC] [max] | 95 °C |
| Refrigerant temperature [ºC] [min] | -40 °C |
| Refrigerant temperature [ºF] [max] | 203 °F |
| Refrigerant temperature [ºF] [min] | -40 °F |
| Refrigerants | R1233zd(E) R1234ze(E) R134a R22 R227ea R23 R245fa R404A R407A R407B R407C R407F R407H R410A R412A R413A R417A R422A R422B R422D R427A R438A R442A R447A R448A R449A R449B R450A R452A R454A R454C R455A R463A R502 R507A R512A R513A R513B R515A R515B R516A |
| Resistance [kOhm] | 0 kOhm |
| SCIP dossier no. | a7e2b719-80cd-47e9-b4fb-ab4f8fb9cd50 |
| SCIP dossier product name | ETS 12C-100C with sight glass |
| Serviceable | No |
| Sightglass | Type SG (N indicator) |
| Step mode | 2-phase full step Half step Microstep (recommended) |
| Total steps | 600 (full steps) |
| UL approved refrigerants | R134a R227ea R23 R404A R407A R407C R407F R410A R417A R422A R422D R427A R438A R448A R449A R450A R452A R507A R513A |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | ATEX CCC CE CMIM EAC LLC CDC TYSK UKCA UR |
| Balanced port [Yes/No] | Yes |
| Body material | Stainless steel |
| Brand | Colibri |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Compatible Danfoss controllers | EKE 1A EKE 1B EKE 1C MCX 061V MCX 152V |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| EX Sales text | II 3G Ex ec IIB T4 Gc |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Fluid Group | 2 |
| Full travel time speed [s] [max] | 6 s |
| Full travel time speed [s] [min] | 3 s |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 1 3/8 in |
| Inlet size [mm] | 35 mm |
| Kv value [m³/h] | 5 m³/h |
| Lubricants compatibility | MO POE AB Oilfree applications PAG PAO PVE |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 7.2 W |
| Max tot PowerCons VoltDrive[W] | 7.2 W |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psi] | 580 psi |
| MaxOPD reverse [bar] | 40 bar |
| MaxOPD reverse [psi] | 580 psi |
| Motor type | Bi-polar |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A R515B R516A |
| Operating current max. [A] | 0.8 A |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 1 3/8 in |
| Outlet size [mm] | 35 mm |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Phase current (peak) [mA] | 800 mA |
| Phase current (RMS) [mA] | 600 mA |
| Phase inductance [µH] | 14000 μH |
| Product accessories | Stepper valve accessories |
| Quantity per packing format | 12 pc |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | tcond=90 °F tevap=40 °F tliq=82 °F |
| Rated cap. conditions [SI] | tcond=32 °C tevap=5 °C tliq=28 °C |
| Rated cap. R404A/R507A [kW] | 393 kW |
| Rated cap. R404A/R507A [TR] | 183 TR |
| Rated capacity R134a [kW] | 413 kW |
| Rated capacity R134a [TR] | 119 TR |
| Rated capacity R22 [kW] | 525.6 kW |
| Rated capacity R22 [TR] | 149.3 TR |
| Rated capacity R407C [kW] | 577 kW |
| Rated capacity R407C [TR] | 166 TR |
| Rated capacity R410A [kW] | 635 kW |
| Rated capacity R410A [TR] | 183 TR |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Cobalt dichloride (CAS no. 7646-79-9) |
| Refrigerant temperature [ºC] [max] | 95 °C |
| Refrigerant temperature [ºC] [min] | -40 °C |
| Refrigerant temperature [ºF] [max] | 203 °F |
| Refrigerant temperature [ºF] [min] | -40 °F |
| Refrigerants | R1233zd(E) R1234ze(E) R134a R22 R227ea R23 R245fa R404A R407A R407B R407C R407F R407H R410A R412A R413A R417A R422A R422B R422D R427A R438A R442A R447A R448A R449A R449B R450A R452A R454A R454C R455A R463A R502 R507A R512A R513A R513B R515A R515B R516A |
| Resistance [kOhm] | 0 kOhm |
| SCIP dossier no. | a7e2b719-80cd-47e9-b4fb-ab4f8fb9cd50 |
| SCIP dossier product name | ETS 12C-100C with sight glass |
| Serviceable | No |
| Sightglass | Type SG (N indicator) |
| Step mode | 2-phase full step Half step Microstep (recommended) |
| Total steps | 600 (full steps) |
| UL approved refrigerants | R134a R227ea R23 R404A R407A R407C R407F R410A R417A R422A R422D R427A R438A R448A R449A R450A R452A R507A R513A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
