034G7801
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 0.43 Kg |
Net weight | 0.33 Kg |
EAN | 5702428888059 |
Ambient temperature range [°C] [Max] | 70 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 158 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | CE EAC LLC CDC TYSK UR |
Balanced port [Yes/No] | Yes |
Body material | Stainless steel |
Brand | Colibri |
Category | Art. 4, par. 3 |
Compatible Danfoss controllers | EKE 1A EKE 1B EKE 1C MCX 152V MCX 061V |
Connection material | Bi-metal: Steel/copper |
Connection type | Solder, ODF |
Direction | Straightway |
Electrical conn. Male/Female | Male |
Electrical connection | M12 |
Electrical connection size | 4 pin |
Enclosure rating IP | IP67 |
Flow direction | Bi-flow |
Flow direction indicator | Laser engraved 2-way arrow |
Fluid Group | II |
Full travel time speed [s] [Max] | 6 " |
Full travel time speed [s] [Min] | 3 " |
Inlet connection type | Solder ODF |
Inlet size [in] | 1 1/8 IN |
Inlet size [mm] | 28 mm |
Kv value [m³/h] | 5 m3/h |
Manual operation option | AST-G service driver |
Max allowed duty cycle [%] | 100 % |
Max tot PowerCons CurrDrive[W] | 7.2 W |
Max tot PowerCons VoltDrive[W] | 7.2 W |
Max total power consumpt [W] | 7.2 W |
Max. Working Pressure [bar] | 50 bar |
Max. Working Pressure [psig] | 725 psig |
MaxOPD [bar] | 40 bar |
MaxOPD [psi] | 580 psi |
MaxOPD reverse [bar] | 40 bar |
MaxOPD reverse [psi] | 580 psi |
Motor type | Bi-polar |
Operating current max. [A] | 0.8 A |
Outlet connection type | Solder ODF |
Outlet size [in] | 1 3/8 IN |
Outlet size [mm] | 35 mm |
Packing format | Multi pack |
Phase current (peak) [mA] | 800 mA |
Phase current (RMS) [mA] | 600 mA |
Phase inductance [µH] | 14000 µHz |
Product accessories | Stepper valve accessories |
Product family name | ETS Colibri |
Product Group | Expansion valves |

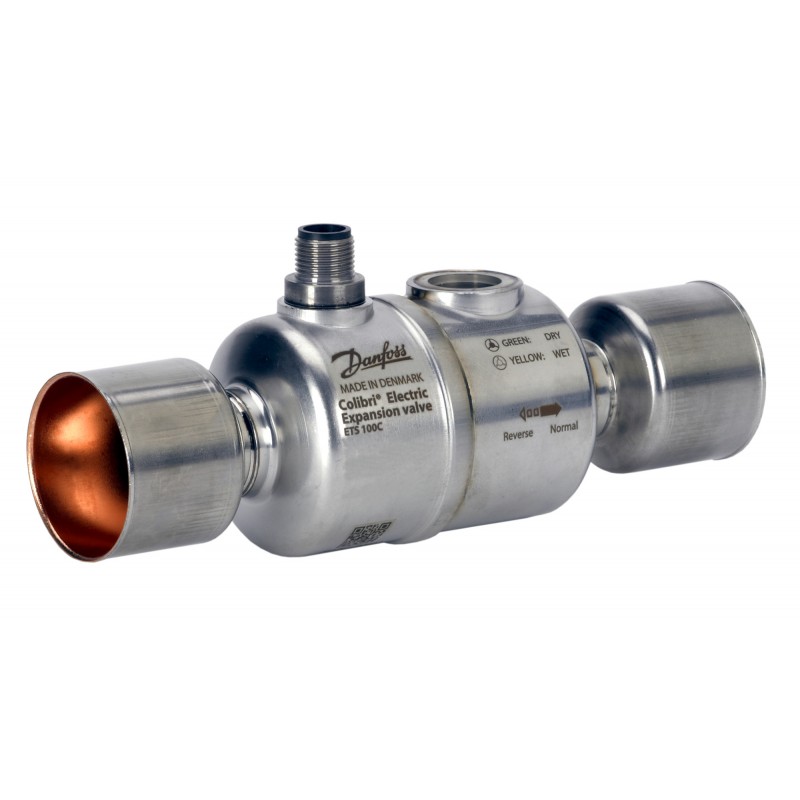

Product name | Electric expansion valve |
Product type | ETS 100C |
Quantity per packing format | 12 pc |
Rated cap. cond. note | Full stroke open, normal flow |
Rated cap. conditions [IMP] | tcond=90 ºF tevap=40 ºF tliq=82 ºF |
Rated cap. conditions [SI] | tcond=32 ºC tevap=5 ºC tliq=28 ºC |
Rated capacity R134a [kW] | 413 kW |
Rated capacity R134a [TR] | 119 tons |
Rated capacity R22 [kW] | 525.6 kW |
Rated capacity R22 [TR] | 149.3 tons |
Rated capacity R404A/R507 [kW] | 393 kW |
Rated capacity R404A/R507 [TR] | 183 tons |
Rated capacity R407C [kW] | 577 kW |
Rated capacity R407C [TR] | 166 tons |
Rated capacity R410A [kW] | 635 kW |
Rated capacity R410A [TR] | 183 tons |
Refrigerant oil compatibility | All ester oils Oilfree applications |
Refrigerant temperature [ºC] [Max] | 70 °C |
Refrigerant temperature [ºC] [Min] | -40 °C |
Refrigerant temperature [ºF] [Max] | 158 °F |
Refrigerant temperature [ºF] [Min] | -40 °F |
Refrigerants | R1234ze R134a R23 R404A R407A R407C R407F R410A R417A R422A R422D R427A R438A R448A R449A R450A R452A R507 R513A R227 |
Resistance [kOhm] | 0.01 kOhm |
Serviceable | No |
Sightglass | Type SG (N indicator) |
Step mode | 2-phase full step Half step Microstep (recommended) |
System line application | Liquid line |
Total steps | 600 (full steps) |
