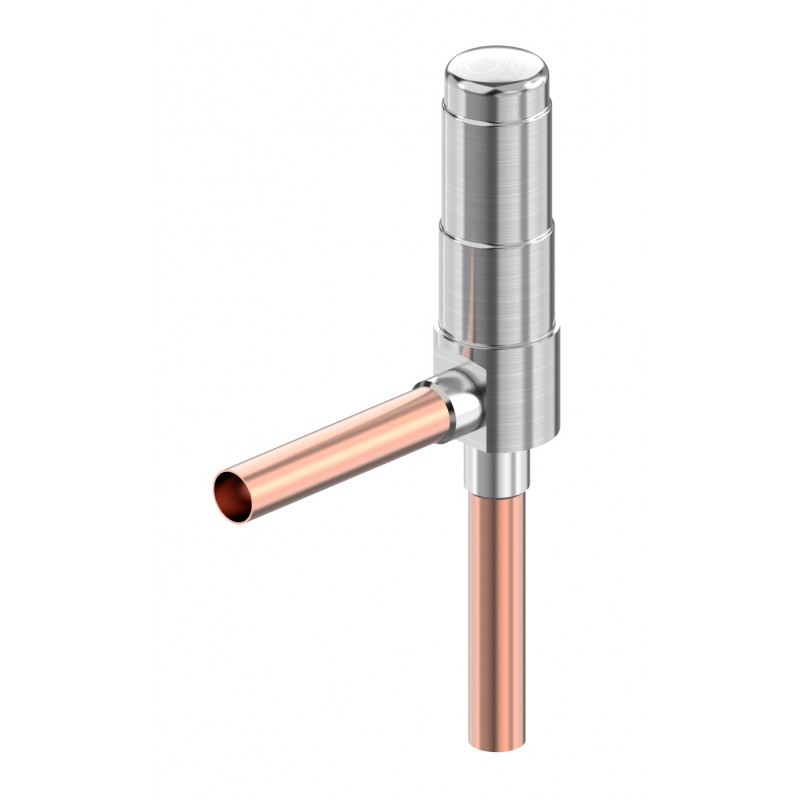

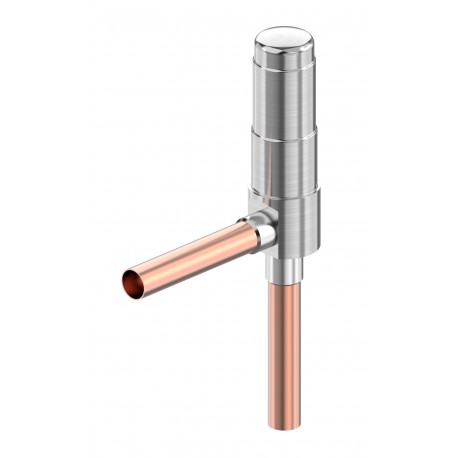

034G6207 DANFOSS REFRIGERATION ETS 5M17 Exp. Elec. valve L 14x14 ODM
034G6207
DANFOSS REFRIGERATION
ETS 5M17 Exp. Elec. valve L 14x14 ODM
Electric expansion valve, ETS 5M17
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲MO; PAG; POE; PVE, Refrigerant temperature [ºC] [max]: 70, Refrigerant temperature [ºF] [max]: 158, Inlet size [mm]: 6.35, Outlet size [mm]: 6.35, Inlet size [in]: 1/4 in, Outlet size [in]: 1/4 in
Product details
| Gross weight | 0.05 Kilogram |
| Net weight | 0.035 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702428680486 |
| Type | ETS 5M17 |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Gross weight | 0.05 Kilogram |
| Net weight | 0.035 Kilogram |
| Volume | 0.253 Liter |
| EAN | 5702428680486 |
| Type | ETS 5M17 |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Compatible Danfoss controllers | EIM 336 EKE 1A EKE 1B EKE 1C |
| Connection material | Cu-plated SS |
| Connection type | Solder, ODM |
| Contains batteries | No |
| Design config. Style | L |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow characteristic | Linear |
| Flow direction | Bi-flow |
| Inlet size [in] | 1/4 in |
| Inlet size [mm] | 6.35 mm |
| Lubricants compatibility | POE MO PAG PVE |
| Manual operation option | AST-G service driver Manual coil |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 508 psig |
| MaxOPD reverse [bar] | 35 bar |
| MaxOPD reverse [psi] | 508 psi |
| Min. Leakage [cm³/min] @ 1 Mpa | 150 cm³/min |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 1.65 mm |
| Outlet size [in] | 1/4 in |
| Outlet size [mm] | 6.35 mm |
| Packing format | Multi pack |
| Parts Program name | ETS 5M |
| PED category | Art. 4, par. 3 |
| Product accessories | Electric valve accessories |
| Quantity per packing format | 20 pc |
| Rated cap. conditions [SI] | Subcooling=0 ºC Superheat=0 ºC tcond=38 ºC tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 7.38 kW |
| Rated cap. R404A/R507A [TR] | 2.1 TR |
| Rated capacity R1234yf [kW] | 5.8 kW |
| Rated capacity R1234yf [TR] | 1.65 TR |
| Rated capacity R1234ze(E) [kW] | 5.86 kW |
| Rated capacity R1234ze(E) [TR] | 1.67 TR |
| Rated capacity R134a [kW] | 7.94 kW |
| Rated capacity R134a [TR] | 2.26 TR |
| Rated capacity R22 [kW] | 10.5 kW |
| Rated capacity R22 [TR] | 2.99 TR |
| Rated capacity R290 [kW] | 10.9 kW |
| Rated capacity R290 [TR] | 3.1 TR |
| Rated capacity R32 [kW] | 18.29 kW |
| Rated capacity R32 [TR] | 5.2 TR |
| Rated capacity R407C [kW] | 10.97 kW |
| Rated capacity R407C [TR] | 3.12 TR |
| Rated capacity R407H [kW] | 12.25 kW |
| Rated capacity R407H [TR] | 3.48 TR |
| Rated capacity R410A [kW] | 12.38 kW |
| Rated capacity R410A [TR] | 3.52 TR |
| Rated capacity R448A [kW] | 10.49 kW |
| Rated capacity R448A [TR] | 2.98 TR |
| Rated capacity R449A [kW] | 10.26 kW |
| Rated capacity R449A [TR] | 2.92 TR |
| Rated capacity R449B [kW] | 10.43 kW |
| Rated capacity R449B [TR] | 2.97 TR |
| Rated capacity R452A [kW] | 7.9 kW |
| Rated capacity R452A [TR] | 2.25 TR |
| Rated capacity R452B [kW] | 14.21 kW |
| Rated capacity R452B [TR] | 4.04 TR |
| Rated capacity R454A [kW] | 10.63 kW |
| Rated capacity R454A [TR] | 3.02 TR |
| Rated capacity R454B [kW] | 14.39 kW |
| Rated capacity R454B [TR] | 4.09 TR |
| Rated capacity R454C [kW] | 9.14 kW |
| Rated capacity R454C [TR] | 2.6 TR |
| Rated capacity R455A [kW] | 10.08 kW |
| Rated capacity R455A [TR] | 2.87 TR |
| Rated capacity R513A [kW] | 6.72 kW |
| Rated capacity R513A [TR] | 1.91 TR |
| Rated capacity R515B [kW] | 5.68 kW |
| Rated capacity R515B [TR] | 1.62 TR |
| REACH Candidate List substances | No |
| Refrigerant temperature [ºC] [max] | 70 °C |
| Refrigerant temperature [ºC] [min] | -30 °C |
| Refrigerant temperature [ºF] [max] | 158 °F |
| Refrigerant temperature [ºF] [min] | -22 °F |
| Refrigerants | R1234yf R1234ze(E) R134a R22 R290 R32 R404A/R507A R407C R407H R410A R448A R449A R449B R452A R452B R454A R454B R454C R455A R463A R513A R515B |
| Relative humidity (RH) [%] [max] | 95 % |
| Relative humidity (RH) [%] [min] | 0 % |
| Serviceable | No |
| Step mode | 1-2 excitation (half step) 2-2 excitation (full step) |
| Storage temperature range [°C] [max] | 70 °C |
| Storage temperature range [°C] [min] | -30 °C |
| Storage temperature range [°F] [max] | 158 °F |
| Storage temperature range [°F] [min] | -22 °F |
| Total steps | 480 (half steps) |
| Valve open pulses@normal flow | 55 ± 16 steps |
| Valve open pulses@reverse flow | 15 ± 15 steps |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Compatible Danfoss controllers | EIM 336 EKE 1A EKE 1B EKE 1C |
| Connection material | Cu-plated SS |
| Connection type | Solder, ODM |
| Contains batteries | No |
| Design config. Style | L |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow characteristic | Linear |
| Flow direction | Bi-flow |
| Inlet size [in] | 1/4 in |
| Inlet size [mm] | 6.35 mm |
| Lubricants compatibility | POE MO PAG PVE |
| Manual operation option | AST-G service driver Manual coil |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 508 psig |
| MaxOPD reverse [bar] | 35 bar |
| MaxOPD reverse [psi] | 508 psi |
| Min. Leakage [cm³/min] @ 1 Mpa | 150 cm³/min |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 1.65 mm |
| Outlet size [in] | 1/4 in |
| Outlet size [mm] | 6.35 mm |
| Packing format | Multi pack |
| Parts Program name | ETS 5M |
| PED category | Art. 4, par. 3 |
| Product accessories | Electric valve accessories |
| Quantity per packing format | 20 pc |
| Rated cap. conditions [SI] | Subcooling=0 ºC Superheat=0 ºC tcond=38 ºC tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 7.38 kW |
| Rated cap. R404A/R507A [TR] | 2.1 TR |
| Rated capacity R1234yf [kW] | 5.8 kW |
| Rated capacity R1234yf [TR] | 1.65 TR |
| Rated capacity R1234ze(E) [kW] | 5.86 kW |
| Rated capacity R1234ze(E) [TR] | 1.67 TR |
| Rated capacity R134a [kW] | 7.94 kW |
| Rated capacity R134a [TR] | 2.26 TR |
| Rated capacity R22 [kW] | 10.5 kW |
| Rated capacity R22 [TR] | 2.99 TR |
| Rated capacity R290 [kW] | 10.9 kW |
| Rated capacity R290 [TR] | 3.1 TR |
| Rated capacity R32 [kW] | 18.29 kW |
| Rated capacity R32 [TR] | 5.2 TR |
| Rated capacity R407C [kW] | 10.97 kW |
| Rated capacity R407C [TR] | 3.12 TR |
| Rated capacity R407H [kW] | 12.25 kW |
| Rated capacity R407H [TR] | 3.48 TR |
| Rated capacity R410A [kW] | 12.38 kW |
| Rated capacity R410A [TR] | 3.52 TR |
| Rated capacity R448A [kW] | 10.49 kW |
| Rated capacity R448A [TR] | 2.98 TR |
| Rated capacity R449A [kW] | 10.26 kW |
| Rated capacity R449A [TR] | 2.92 TR |
| Rated capacity R449B [kW] | 10.43 kW |
| Rated capacity R449B [TR] | 2.97 TR |
| Rated capacity R452A [kW] | 7.9 kW |
| Rated capacity R452A [TR] | 2.25 TR |
| Rated capacity R452B [kW] | 14.21 kW |
| Rated capacity R452B [TR] | 4.04 TR |
| Rated capacity R454A [kW] | 10.63 kW |
| Rated capacity R454A [TR] | 3.02 TR |
| Rated capacity R454B [kW] | 14.39 kW |
| Rated capacity R454B [TR] | 4.09 TR |
| Rated capacity R454C [kW] | 9.14 kW |
| Rated capacity R454C [TR] | 2.6 TR |
| Rated capacity R455A [kW] | 10.08 kW |
| Rated capacity R455A [TR] | 2.87 TR |
| Rated capacity R513A [kW] | 6.72 kW |
| Rated capacity R513A [TR] | 1.91 TR |
| Rated capacity R515B [kW] | 5.68 kW |
| Rated capacity R515B [TR] | 1.62 TR |
| REACH Candidate List substances | No |
| Refrigerant temperature [ºC] [max] | 70 °C |
| Refrigerant temperature [ºC] [min] | -30 °C |
| Refrigerant temperature [ºF] [max] | 158 °F |
| Refrigerant temperature [ºF] [min] | -22 °F |
| Refrigerants | R1234yf R1234ze(E) R134a R22 R290 R32 R404A/R507A R407C R407H R410A R448A R449A R449B R452A R452B R454A R454B R454C R455A R463A R513A R515B |
| Relative humidity (RH) [%] [max] | 95 % |
| Relative humidity (RH) [%] [min] | 0 % |
| Serviceable | No |
| Step mode | 1-2 excitation (half step) 2-2 excitation (full step) |
| Storage temperature range [°C] [max] | 70 °C |
| Storage temperature range [°C] [min] | -30 °C |
| Storage temperature range [°F] [max] | 158 °F |
| Storage temperature range [°F] [min] | -22 °F |
| Total steps | 480 (half steps) |
| Valve open pulses@normal flow | 55 ± 16 steps |
| Valve open pulses@reverse flow | 15 ± 15 steps |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
