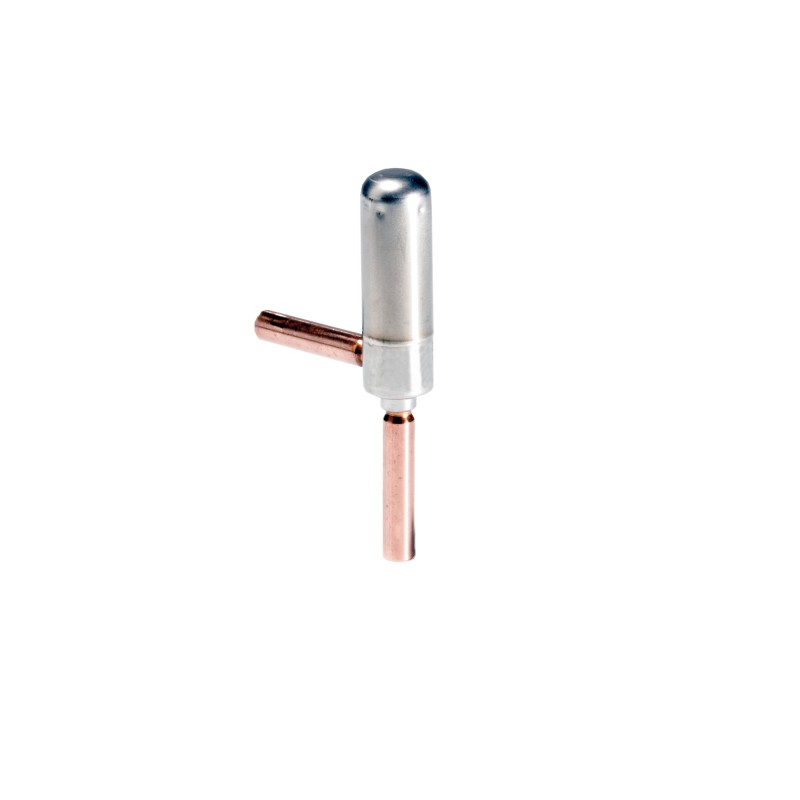

034G5010 DANFOSS REFRIGERATION Electric expansion valve, ETS 6 14
034G5010
DANFOSS REFRIGERATION
100
Electric expansion valve, ETS 6 - 14
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet size [mm]: 7.94, Outlet size [mm]: 7.94
Product details
| Gross weight | 0.057 Kg |
| Net weight | 0.05 Kg |
| Volume | 0.201 Liter |
| EAN | 5702428443821 |
| Gross weight | 0.057 Kg |
| Net weight | 0.05 Kg |
| Volume | 0.201 Liter |
| EAN | 5702428443821 |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE CQC EAC LLC CDC TYSK RoHS UL UKCA |
| Compatible Danfoss controllers | EIM 336 EKE 1A EKE 1B EKE 1C |
| Connection material | Copper |
| Connection type | Solder, ODF |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| Flow direction | Bi-flow |
| Fluid Group | 2 |
| Full travel time speed [s] [max] | 16 s |
| Full travel time speed [s] [min] | 6 s |
| Identical product | 034G5015 |
| In scope of WEEE and contain batteries | No |
| Inlet size [in] | 5/16 in |
| Inlet size [mm] | 7.94 mm |
| Lubricants compatibility | MO POE |
| Manual operation option | AST-G service driver ETS 6 Manual coil |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 507 psig |
| MOPD[bar/psi] | 35 bar |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 1.4 mm |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Parts Program name | ETS 6 |
| PED category | Art. 3, par. 3 |
| Product accessories | Electric valve accessories |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Quantity per packing format | 100 pc |
| Rated cap. conditions [IMP] | Subcooling=32 ºF Superheat=32 ºF tcond=100 ºF tevap=41 ºF |
| Rated cap. conditions [SI] | Subcooling=0 ºC Superheat=0 ºC tcond=38 ºC tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 4.1 kW |
| Rated cap. R404A/R507A [TR] | 1.16 TR |
| Rated capacity R134a [kW] | 4.5 kW |
| Rated capacity R134a [TR] | 1.28 TR |
| Rated capacity R22 [kW] | 5.8 kW |
| Rated capacity R22 [TR] | 1.65 TR |
| Rated capacity R407C [kW] | 5.9 kW |
| Rated capacity R407C [TR] | 1.68 TR |
| Rated capacity R410A [kW] | 6.8 kW |
| Rated capacity R410A [TR] | 1.93 TR |
| REACH Candidate List substances | No |
| Refrigerant temperature [ºC] [max] | 70 °C |
| Refrigerant temperature [ºC] [min] | -30 °C |
| Refrigerant temperature [ºF] [max] | 158 °F |
| Refrigerant temperature [ºF] [min] | -22 °F |
| Refrigerants | R134a R22/R407C R410A R290 R32 R448A R449A R452A R1234yf R404A R407H R449B R452B R454A R454B R454C R455A R463A R513A |
| Serviceable | No |
| Step mode | 2-phase full step Half step (recommended) Microstep |
| Total steps | 480 (half steps) |
| Type | ETS 6 - 14 |
| UL approved refrigerants | R134a R22 R404A R407C R410A R448A R449A R452A R507A |
| Ambient temperature range [°C] [max] | 70 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 158 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE CQC EAC LLC CDC TYSK RoHS UL UKCA |
| Compatible Danfoss controllers | EIM 336 EKE 1A EKE 1B EKE 1C |
| Connection material | Copper |
| Connection type | Solder, ODF |
| Direction | Angleway |
| EU RoHS compliance | Yes |
| Flow direction | Bi-flow |
| Fluid Group | 2 |
| Full travel time speed [s] [max] | 16 s |
| Full travel time speed [s] [min] | 6 s |
| Identical product | 034G5015 |
| In scope of WEEE and contain batteries | No |
| Inlet size [in] | 5/16 in |
| Inlet size [mm] | 7.94 mm |
| Lubricants compatibility | MO POE |
| Manual operation option | AST-G service driver ETS 6 Manual coil |
| Max. Working Pressure [bar] | 47 bar |
| Max. Working Pressure [psig] | 681 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 507 psig |
| MOPD[bar/psi] | 35 bar |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 1.4 mm |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Parts Program name | ETS 6 |
| PED category | Art. 3, par. 3 |
| Product accessories | Electric valve accessories |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Quantity per packing format | 100 pc |
| Rated cap. conditions [IMP] | Subcooling=32 ºF Superheat=32 ºF tcond=100 ºF tevap=41 ºF |
| Rated cap. conditions [SI] | Subcooling=0 ºC Superheat=0 ºC tcond=38 ºC tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 4.1 kW |
| Rated cap. R404A/R507A [TR] | 1.16 TR |
| Rated capacity R134a [kW] | 4.5 kW |
| Rated capacity R134a [TR] | 1.28 TR |
| Rated capacity R22 [kW] | 5.8 kW |
| Rated capacity R22 [TR] | 1.65 TR |
| Rated capacity R407C [kW] | 5.9 kW |
| Rated capacity R407C [TR] | 1.68 TR |
| Rated capacity R410A [kW] | 6.8 kW |
| Rated capacity R410A [TR] | 1.93 TR |
| REACH Candidate List substances | No |
| Refrigerant temperature [ºC] [max] | 70 °C |
| Refrigerant temperature [ºC] [min] | -30 °C |
| Refrigerant temperature [ºF] [max] | 158 °F |
| Refrigerant temperature [ºF] [min] | -22 °F |
| Refrigerants | R134a R22/R407C R410A R290 R32 R448A R449A R452A R1234yf R404A R407H R449B R452B R454A R454B R454C R455A R463A R513A |
| Serviceable | No |
| Step mode | 2-phase full step Half step (recommended) Microstep |
| Total steps | 480 (half steps) |
| Type | ETS 6 - 14 |
| UL approved refrigerants | R134a R22 R404A R407C R410A R448A R449A R452A R507A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 034G5010 034G5010 ES_034G5030.pdf | 3 Mbytes |
 |
