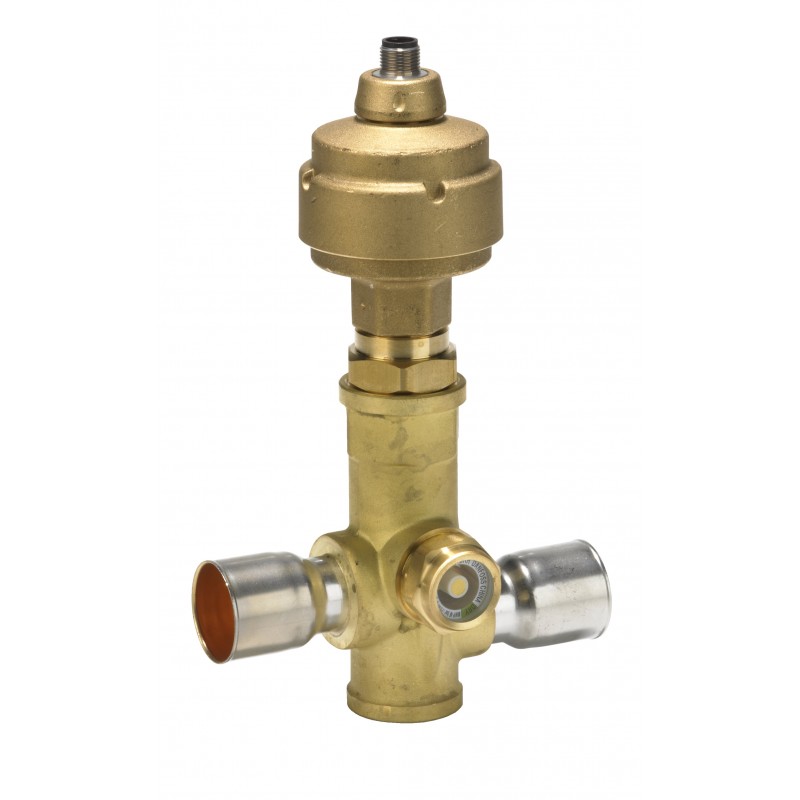

034G0003 DANFOSS REFRIGERATION Electric expansion valve
034G0003
DANFOSS REFRIGERATION
Electric expansion valve
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲| Gross weight | 2 Kg |
| Net weight | 1.94 Kg |
| EAN | 5702428827461 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Category | I |
| Compatible Danfoss controllers | EKE 1A EKE 1B EKE 1C |
| Connection material | Bi-metal: Steel/copper |
| Connection type | Solder, ODF |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| Flow direction | Bi-flow |
| Fluid Group | II |
| Full travel time speed [s] [Max] | 23 " |
| Full travel time speed [s] [Min] | 11.5 " |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 1 3/8 IN |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 1.3 W |
| Max tot PowerCons VoltDrive[W] | 5.5 W |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MaxOPD [bar] | 33 bar |
| MaxOPD [psi] | 478.6 psi |
| MaxOPD reverse [bar] | 33 bar |
| MaxOPD reverse [psi] | 478.6 psi |
| Motor type | Bi-polar |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 1 3/8 IN |
| Packing format | Industrial pack |
| Phase current (peak) [mA] | 141 mA |
| Phase current (RMS) [mA] | 100 mA |
| Phase inductance [µH] | 85000 µHz |
| Product accessories | Stepper valve accessories |
| Product family name | ETS |
| Product Group | Expansion valves |
| Product name | Electric expansion valve |
| Product type | ETS 100 |
| Quantity per packing format | 6 pc |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | tcond=90 °F tevap=40 °F tliq=82 °F |
| Rated cap. conditions [SI] | tcond=32 °C tevap=5 °C tliq=28 °C |
| Rated capacity R134a [kW] | 316.5 kW |
| Rated capacity R134a [TR] | 91.2 tons |
| Rated capacity R22 [kW] | 400.4 kW |
| Rated capacity R22 [TR] | 115.4 tons |
| Rated capacity R404A/R507 [kW] | 300.5 kW |
| Rated capacity R404A/R507 [TR] | 86.6 tons |
| Rated capacity R407C [kW] | 447.8 kW |
| Rated capacity R407C [TR] | 128.7 tons |
| Rated capacity R410A [kW] | 488.4 kW |
| Rated capacity R410A [TR] | 140.9 tons |
| Refrigerant oil compatibility | All ester oils All mineral oils |
| Refrigerant temperature [ºC] [Max] | 65 °C |
| Refrigerant temperature [ºC] [Min] | -40 °C |
| Refrigerant temperature [ºF] [Max] | 150 °F |
| Refrigerant temperature [ºF] [Min] | -40 °F |
| Refrigerants | R1234ze R134a R22 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R450A R452A R507 R513A |
| Serviceable | Stepper valve spare parts |
| Step mode | 2-phase full step |
| System line application | Liquid line |
| Total steps | 3530 (full steps) |
| Voltage [V] DC [Max] | 13.8 V |
| Voltage [V] DC [Min] | 11.5 V |
