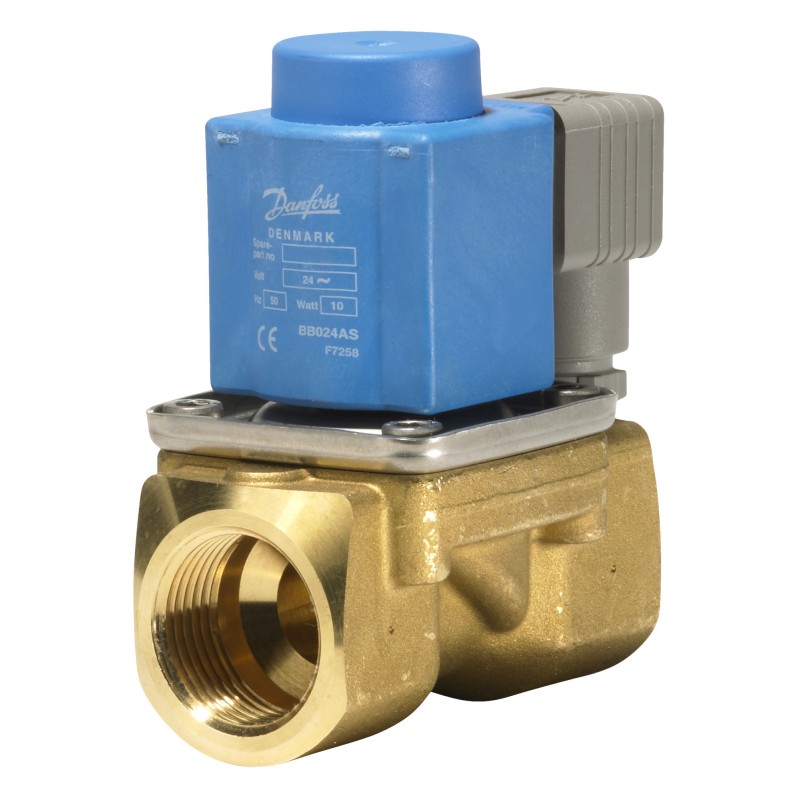

DANFOSS REFRIGERATION 032U758132 032U758132 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

032U758132 DANFOSS REFRIGERATION Solenoid valve, EV220B, Function: NC, NPT, 1, 6 m³/h, EPDM

Reference: 032U758132

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, EV220B, Function: NC, NPT, 1, 6 m³/h, EPDM

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Media recommendations: Water & Brine, Approval: CE; cURus recognized, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2

Product details

Gross weight1.289 Kilogram
Net weight1.25 Kilogram
Volume1.203 Liter
EAN5702428459952
TypeEV220B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve
Gross weight1.289 Kilogram
Net weight1.25 Kilogram
Volume1.203 Liter
EAN5702428459952
TypeEV220B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve

ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApplicationOpen
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeBY
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1
Connection standardANSI/ASME B1.20.1
Connection typeNPT
Contains batteriesNo
Cv value [gal/min]6.95 gal/min
Differential pressure [bar] [max]9.791 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]142 psi
Differential pressure [psi] [min]4.351 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]500 ms
Est. time to open, water [ms]200 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
Frequency [Hz]50/60 Hz
FunctionNC
In scope of WEEEYes
Kv value [m³/h]6 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]37.5 bar
Max. test pressure [psig]544 psig
Max. Working Pressure [bar]9.8 bar
Max. Working Pressure [psig]142 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]14 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]22 mm
Orifice size fraction [in]7/8 in
Packing formatMulti pack
Parts Program nameEV220B 6 - 22
Power consumption [W] 50Hz16 W
Power consumption [W] 60Hz14 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product nameEV220B 6-22 brass NC - solenoid valve
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220B 22B N 1E NC000 BY240CS
Supply voltage 50Hz Max [V]230 V
Supply voltage 60Hz Max [V]240 V
Supply voltage 60Hz Min [V]208 V
Supply voltage [V] AC240 V
Type designationEV220B 22
UL markYes
ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]50 °C
Ambient temperature max. [°F]122 °F
ApplicationOpen
Body materialBrass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeBY
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1
Connection standardANSI/ASME B1.20.1
Connection typeNPT
Contains batteriesNo
Cv value [gal/min]6.95 gal/min
Differential pressure [bar] [max]9.791 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]142 psi
Differential pressure [psi] [min]4.351 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]500 ms
Est. time to open, water [ms]200 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
Frequency [Hz]50/60 Hz
FunctionNC
In scope of WEEEYes
Kv value [m³/h]6 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]37.5 bar
Max. test pressure [psig]544 psig
Max. Working Pressure [bar]9.8 bar
Max. Working Pressure [psig]142 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Steam Max 4 bar
Temperature: Coil dependent
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]14 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]22 mm
Orifice size fraction [in]7/8 in
Packing formatMulti pack
Parts Program nameEV220B 6 - 22
Power consumption [W] 50Hz16 W
Power consumption [W] 60Hz14 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.f440c2c1-98fa-405b-9256-d9b24590a97e
SCIP dossier product nameEV220B 6-22 brass NC - solenoid valve
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220B 22B N 1E NC000 BY240CS
Supply voltage 50Hz Max [V]230 V
Supply voltage 60Hz Max [V]240 V
Supply voltage 60Hz Min [V]208 V
Supply voltage [V] AC240 V
Type designationEV220B 22
UL markYes
