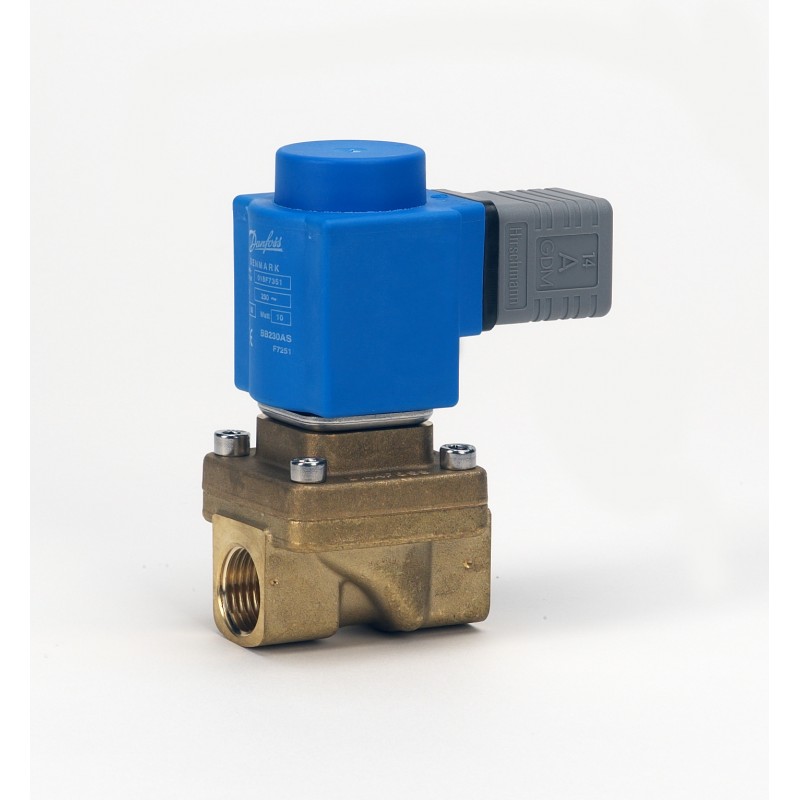

032U537216 DANFOSS REFRIGERATION Solenoid valve, EV250B, Function: NO, G, 1/2, 4 m³/h, EPDM
032U537216
DANFOSS REFRIGERATION
Solenoid valve, EV250B, Function: NO, G, 1/2, 4 m³/h, EPDM
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Media recommendations: Technical & Soft Water, Approval: DNVGL-CG-0339; SINTEF; GL; PZH; CE, Body material: DZR brass, Operation: Assisted lift operated, Number of ways: 2/2
Product details
| Gross weight | 0.848 Kilogram |
| Net weight | 0.794 Kilogram |
| Volume | 0.869 Liter |
| EAN | 5702423218059 |
| Type | EV250B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 0.848 Kilogram |
| Net weight | 0.794 Kilogram |
| Volume | 0.869 Liter |
| EAN | 5702423218059 |
| Type | EV250B |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Approval | CE DNVGL-CG-0339 GL PZH SINTEF |
| Body material | DZR brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 4.6 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 100 ms |
| Est. time to open, water [ms] | 100 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Fluid Group | 1 |
| Frequency [Hz] | 50 Hz |
| Function | NO |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 4 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Technical & Soft Water |
| Media tolerance comments | -30–120 °C: 0–10 bar 120–140 °C: 0–4 bar Slightly aggressive media |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -22 °F |
| Number of ways | 2/2 |
| Operation | Assisted lift operated |
| Orifice size [mm] | 12 mm |
| Orifice size fraction [in] | 1/2 in |
| Packing format | Multi pack |
| Parts Program name | EV250B |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d367528f-afd7-4ce7-98d3-93a4c38934b8 |
| SCIP dossier product name | EV250B NO - solenoid valve |
| Seal Material | EPDM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV250B 12BD G 12E NO000 BB024A |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | EV250B 12 |
| Actuator | B |
| Actuator size | 13.5 mm |
| Actuator size [in] | 0.53 in |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature max. [°C] | 80 °C |
| Ambient temperature max. [°F] | 176 °F |
| Application | Closed and Drain |
| Approval | CE DNVGL-CG-0339 GL PZH SINTEF |
| Body material | DZR brass |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.3 |
| Coil option | Clip-on |
| Coil type | BB |
| Connection Internal/External | Internal |
| Connection material | DZR brass |
| Connection size [in] | 1/2 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Contains batteries | No |
| Cv value [gal/min] | 4.6 gal/min |
| Differential pressure [bar] [max] | 10 bar |
| Differential pressure [bar] [min] | 0 bar |
| Differential pressure [psi] [max] | 145 psi |
| Differential pressure [psi] [min] | 0 psi |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Spade DIN 43650-A |
| Enclosure rating IP | IP65 |
| Est. time to close, water [ms] | 100 ms |
| Est. time to open, water [ms] | 100 ms |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Fluid Group | 1 |
| Frequency [Hz] | 50 Hz |
| Function | NO |
| In scope of WEEE | Yes |
| Kv value [m³/h] | 4 m³/h |
| Max media viscosity [cSt] | 50 cSt |
| Max. test pressure [bar] | 15 bar |
| Max. test pressure [psig] | 217.5 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media recommendations | Technical & Soft Water |
| Media tolerance comments | -30–120 °C: 0–10 bar 120–140 °C: 0–4 bar Slightly aggressive media |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -22 °F |
| Number of ways | 2/2 |
| Operation | Assisted lift operated |
| Orifice size [mm] | 12 mm |
| Orifice size fraction [in] | 1/2 in |
| Packing format | Multi pack |
| Parts Program name | EV250B |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | Solenoid coil accessories Solenoid valve accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | d367528f-afd7-4ce7-98d3-93a4c38934b8 |
| SCIP dossier product name | EV250B NO - solenoid valve |
| Seal Material | EPDM |
| Serviceable | Solenoid valve spare parts |
| Specification key | EV250B 12BD G 12E NO000 BB024A |
| Supply voltage 50Hz Max [V] | 24 V |
| Supply voltage [V] AC | 24 V |
| Type designation | EV250B 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
