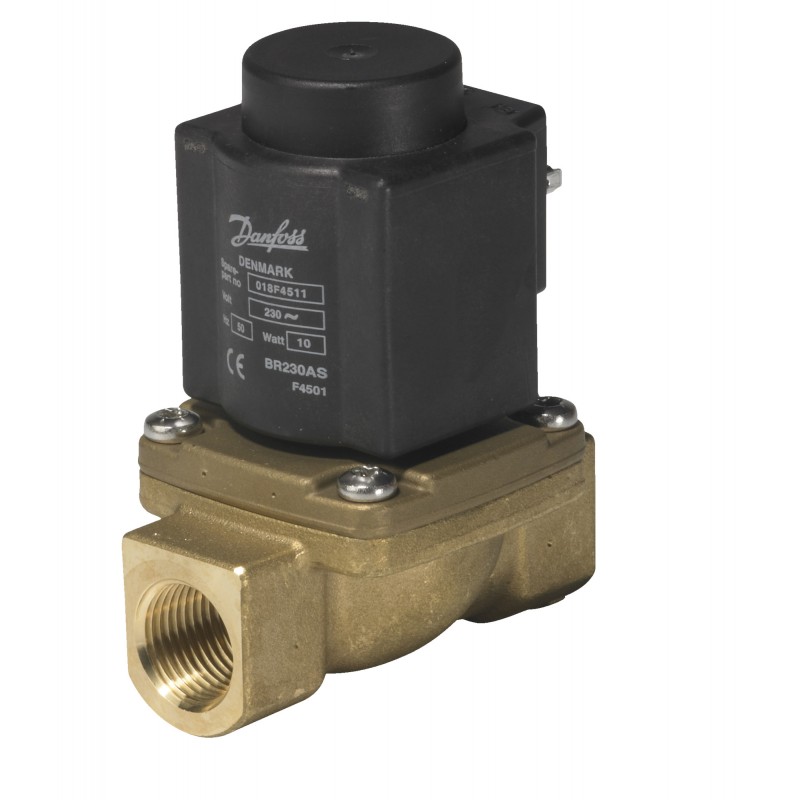

DANFOSS REFRIGERATION 032U380420 032U380420 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

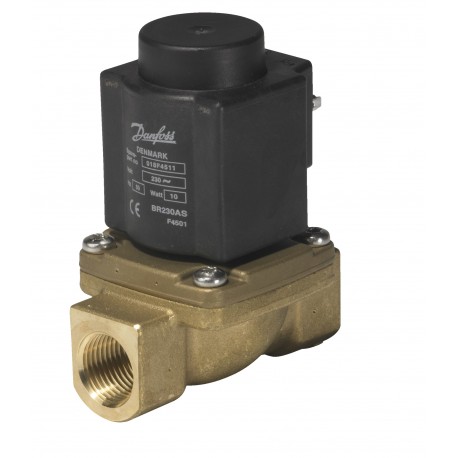

032U380420 DANFOSS REFRIGERATION Solenoid valve, EV225B, Function: NC, G, 1/2, 2.2 m³/h, PTFE

Reference: 032U380420

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, EV225B, Function: NC, G, 1/2, 2.2 m³/h, PTFE

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Media recommendations: Steam, Approval: UL; CE; UR, Body material: DZR brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2

Product details

Gross weight0.769 Kilogram
Net weight0.724 Kilogram
Volume0.865 Liter
EAN5702428473163
TypeEV225B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve
Gross weight0.769 Kilogram
Net weight0.724 Kilogram
Volume0.865 Liter
EAN5702428473163
TypeEV225B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve

ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]40 °C
Ambient temperature max. [°F]104 °F
ApplicationOpen
ApprovalCE
UL
UR
Body materialDZR brass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeBQ
Connection Internal/ExternalInternal
Connection materialDZR brass
Connection size [in]1/2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]2.55 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]20 ms
Est. time to open, water [ms]20 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Fluid Group1
Frequency [Hz]60 Hz
FunctionNC
In scope of WEEEYes
Kv value [m³/h]2.2 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Media recommendationsSteam
Media tolerance commentsSlightly aggressive media
Medium temperature range [°C] [max]185 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]365 °F
Medium temperature range [°F] [min]14 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]10 mm
Orifice size fraction [in]3/8 in
Packing formatMulti pack
Power consumption [W] 60Hz13.5 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.37eed611-ac6e-4afb-8c8d-2fa1dd1fb454
SCIP dossier product nameEV225B - solenoid valve
Seal MaterialPTFE
ServiceableSolenoid valve spare parts
Specification keyEV225B 10BD G 12T NC000 BQ110B
Supply voltage 60Hz Max [V]120 V
Supply voltage 60Hz Min [V]110 V
Supply voltage [V] AC110 V
Type designationEV225B 10
UL markYes
ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]40 °C
Ambient temperature max. [°F]104 °F
ApplicationOpen
ApprovalCE
UL
UR
Body materialDZR brass
CE markYes
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Coil optionClip-on
Coil typeBQ
Connection Internal/ExternalInternal
Connection materialDZR brass
Connection size [in]1/2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]2.55 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
EEE category5 small equipment (any external dimension < 50 cm)
Electrical connectionSpade DIN 43650-A
Enclosure rating IPIP65
Est. time to close, water [ms]20 ms
Est. time to open, water [ms]20 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Fluid Group1
Frequency [Hz]60 Hz
FunctionNC
In scope of WEEEYes
Kv value [m³/h]2.2 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Media recommendationsSteam
Media tolerance commentsSlightly aggressive media
Medium temperature range [°C] [max]185 °C
Medium temperature range [°C] [min]-10 °C
Medium temperature range [°F] [max]365 °F
Medium temperature range [°F] [min]14 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]10 mm
Orifice size fraction [in]3/8 in
Packing formatMulti pack
Power consumption [W] 60Hz13.5 W
Product accessoriesSolenoid coil accessories
Solenoid valve accessories
Quantity per packing format12 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.37eed611-ac6e-4afb-8c8d-2fa1dd1fb454
SCIP dossier product nameEV225B - solenoid valve
Seal MaterialPTFE
ServiceableSolenoid valve spare parts
Specification keyEV225B 10BD G 12T NC000 BQ110B
Supply voltage 60Hz Max [V]120 V
Supply voltage 60Hz Min [V]110 V
Supply voltage [V] AC110 V
Type designationEV225B 10
UL markYes
