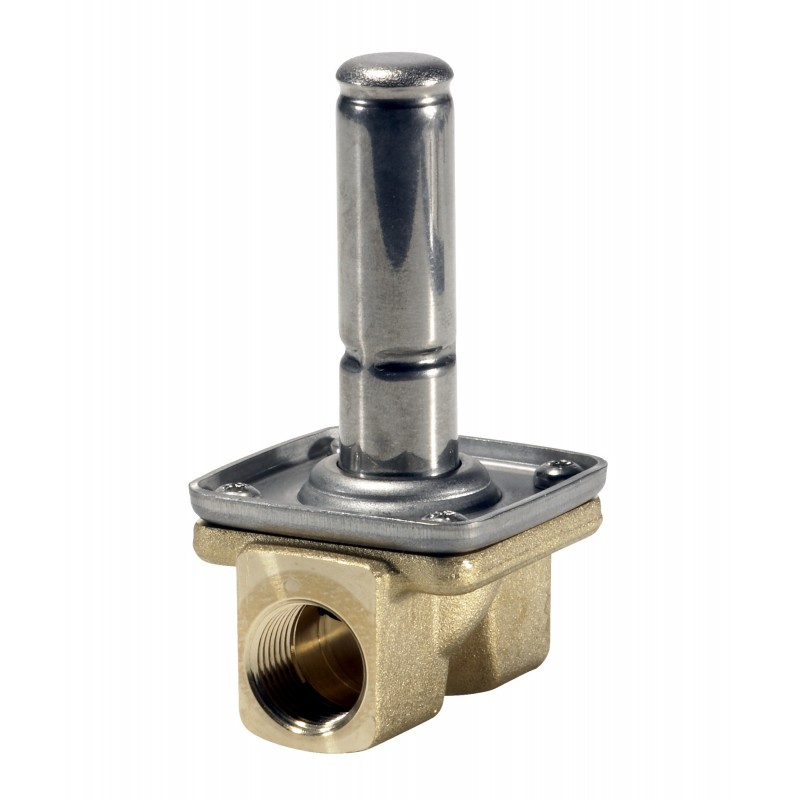

DANFOSS REFRIGERATION 032U1250 032U1250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

032U1250 DANFOSS REFRIGERATION Solenoid valve, EV220B, Function: NO, G, 1/2, 2.1 m³/h, EPDM

Reference: 032U1250

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, EV220B, Function: NO, G, 1/2, 2.1 m³/h, EPDM

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Media recommendations: Water & Brine, Approval: DNVGL-CG-0339; GL; PZH, Body material: Brass, Operation: Servo-operated (diaphragm), Number of ways: 2/2

Product details

Gross weight0.311 Kilogram
Net weight0.291 Kilogram
Volume0.328 Liter
EAN5702428995573
TypeEV220B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve
Gross weight0.311 Kilogram
Net weight0.291 Kilogram
Volume0.328 Liter
EAN5702428995573
TypeEV220B
Product groupSolenoid valves
Product Name DescriptionSolenoid valve

ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]80 °C
Ambient temperature max. [°F]176 °F
ApplicationOpen
Body materialBrass
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1/2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]2.4 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
Est. time to close, water [ms]300 ms
Est. time to open, water [ms]60 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
FunctionNO
Kv value [m³/h]2.1 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]0 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]32 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]12 mm
Orifice size fraction [in]1/2 in
Packing formatMulti pack
Parts Program nameEV220B 6 - 22
Product accessoriesSolenoid valve accessories
Quantity per packing format15 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d
SCIP dossier product nameEV220B 6-12 brass NO - solenoid valve
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220B 12B G 12E NO000
Type designationEV220B 12
ActuatorB
Actuator size13.5 mm
Actuator size [in]0.53 in
Actuator system [mm]13.5 mm
Ambient temperature max. [°C]80 °C
Ambient temperature max. [°F]176 °F
ApplicationOpen
Body materialBrass
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection Internal/ExternalInternal
Connection materialBrass
Connection size [in]1/2
Connection standardISO 228-1
Connection typeG
Contains batteriesNo
Cv value [gal/min]2.4 gal/min
Differential pressure [bar] [max]10 bar
Differential pressure [bar] [min]0.3 bar
Differential pressure [psi] [max]145 psi
Differential pressure [psi] [min]4.35 psi
Est. time to close, water [ms]300 ms
Est. time to open, water [ms]60 ms
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group1
FunctionNO
Kv value [m³/h]2.1 m³/h
Max media viscosity [cSt]50 cSt
Max. test pressure [bar]15 bar
Max. test pressure [psig]217.5 psig
Max. Working Pressure [bar]10 bar
Max. Working Pressure [psig]145 psig
Media recommendationsWater & Brine
Media tolerance commentsNeutral media
Medium temperature range [°C] [max]100 °C
Medium temperature range [°C] [min]0 °C
Medium temperature range [°F] [max]212 °F
Medium temperature range [°F] [min]32 °F
Number of ways2/2
OperationServo-operated (diaphragm)
Orifice size [mm]12 mm
Orifice size fraction [in]1/2 in
Packing formatMulti pack
Parts Program nameEV220B 6 - 22
Product accessoriesSolenoid valve accessories
Quantity per packing format15 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.77f45aa5-e4c6-4c8e-8a6f-38d910d5d18d
SCIP dossier product nameEV220B 6-12 brass NO - solenoid valve
Seal MaterialEPDM
ServiceableSolenoid valve spare parts
Specification keyEV220B 12B G 12E NO000
Type designationEV220B 12
